Product Description
The SteelCrest BTU10X10RWHH is a fixed return air grille constructed from solid steel with a white powder-coat finish. It features a slotted face design and is built for installation on walls or ceilings in residential and light commercial HVAC systems. The grille fits a 10x10 inch duct opening and installs over a finished face size of 12x12 inches. The powder-coat finish resists chipping and corrosion, making it suitable for high-traffic areas and long-term service. HVAC technicians and contractors install this grille as a direct replacement or new-construction component where a return air pathway is required.
This grille is appropriate for residential and light commercial applications where return air must be collected from a conditioned space and routed back to the air handler or furnace. The fixed-blade slotted design maintains consistent airflow direction without adjustment. It suits both wall and ceiling installations, making it a practical choice for new construction, renovation, and retrofit projects where the duct rough opening measures 10x10 inches.
Key Features
- Solid steel construction with white powder-coat finish for durability and corrosion resistance
- Fixed slotted face design supports consistent return airflow
- Fits 10x10 inch duct opening with a 12x12 inch overall face size

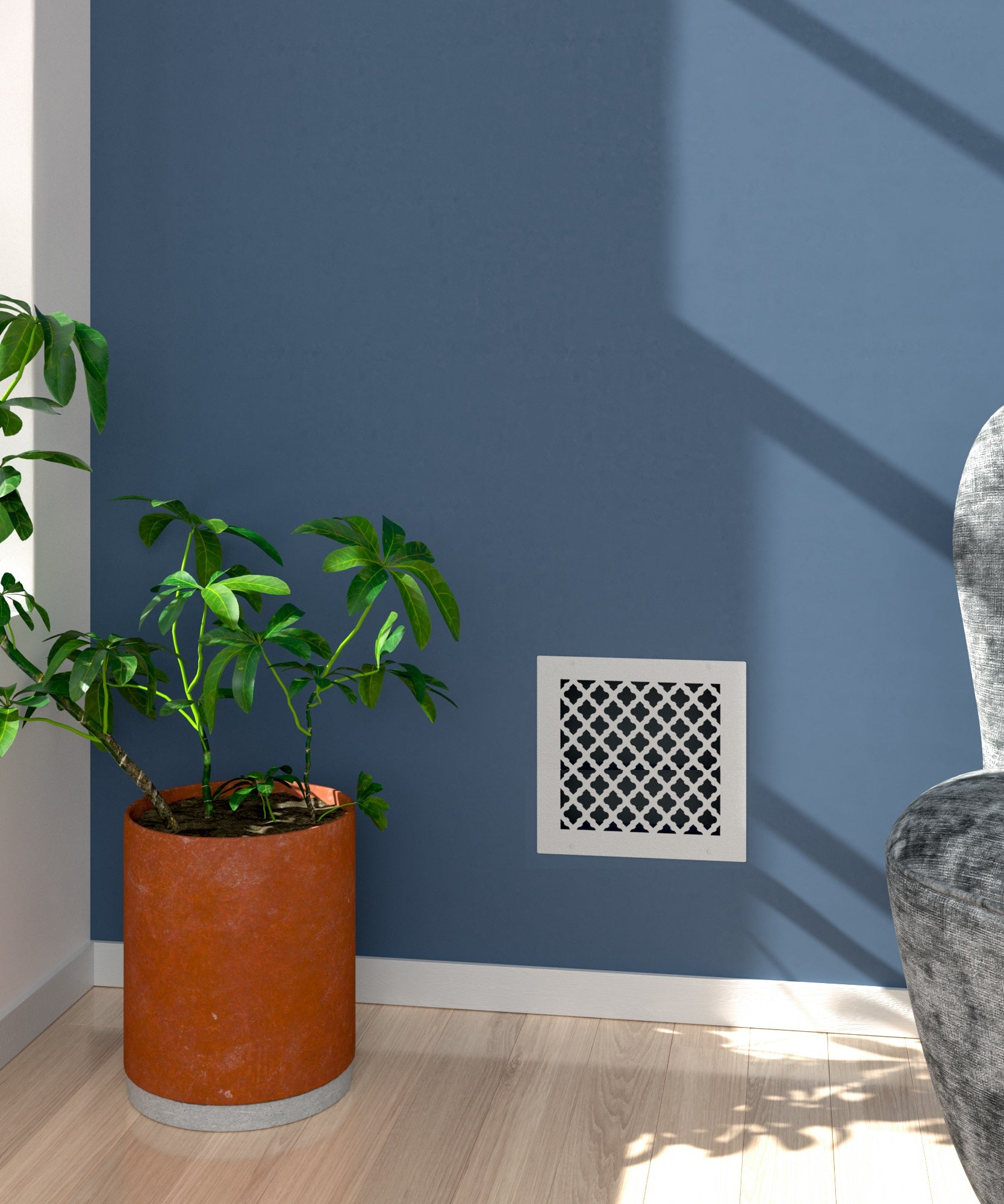

- Suitable for wall or ceiling mounting
- Direct-replacement fit for new construction and remodel installations
Compatibility
Designed as a direct-replacement return air grille for residential and light commercial HVAC systems with a 10x10 inch rough duct opening requiring a wall or ceiling-mounted return grille.
Installation Notes
Installation is typically performed by a licensed HVAC technician or qualified contractor. Power down the air handling system before removing an existing grille or accessing the duct opening. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate material. Verify the duct opening dimensions match 10x10 inches before installation to ensure proper fit and seal.
Technical Specifications
-
Duct Opening Size: 10x10 inches
-
Overall Face Size: 12x12 inches
-
Material: Solid steel with white powder-coat finish
-
Mounting Location: Wall or ceiling
-
Grille Type: Fixed return
-
Package Weight: 7 pounds
-
Package Dimensions: 14x14x4 inches
Standard Information
-
Brand: SteelCrest
-
Manufacturer Part Number: BTU10X10RWHH
