SteelCrest BTU10X10RORBH Fixed Return Air Grille 10x10

Product Description

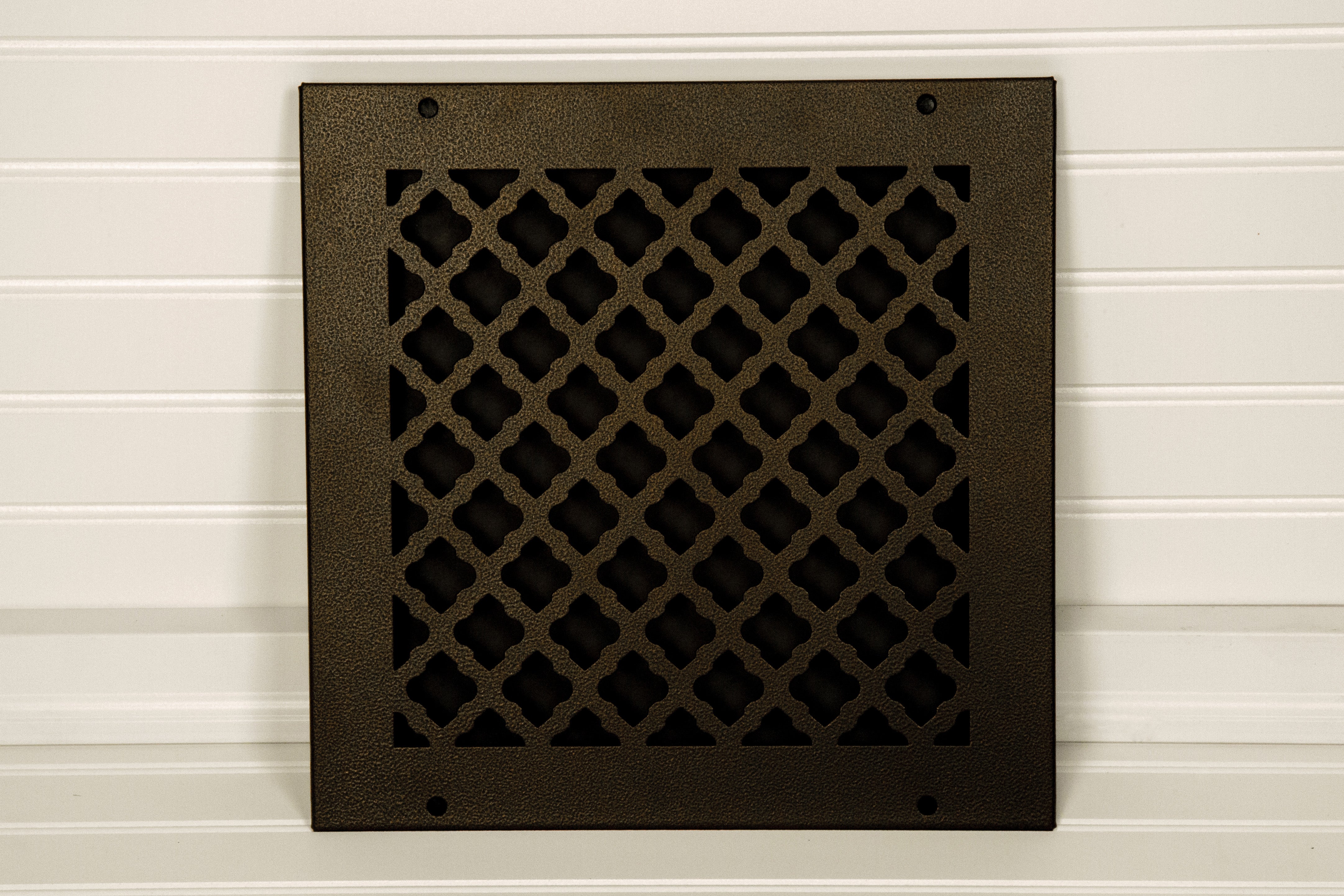

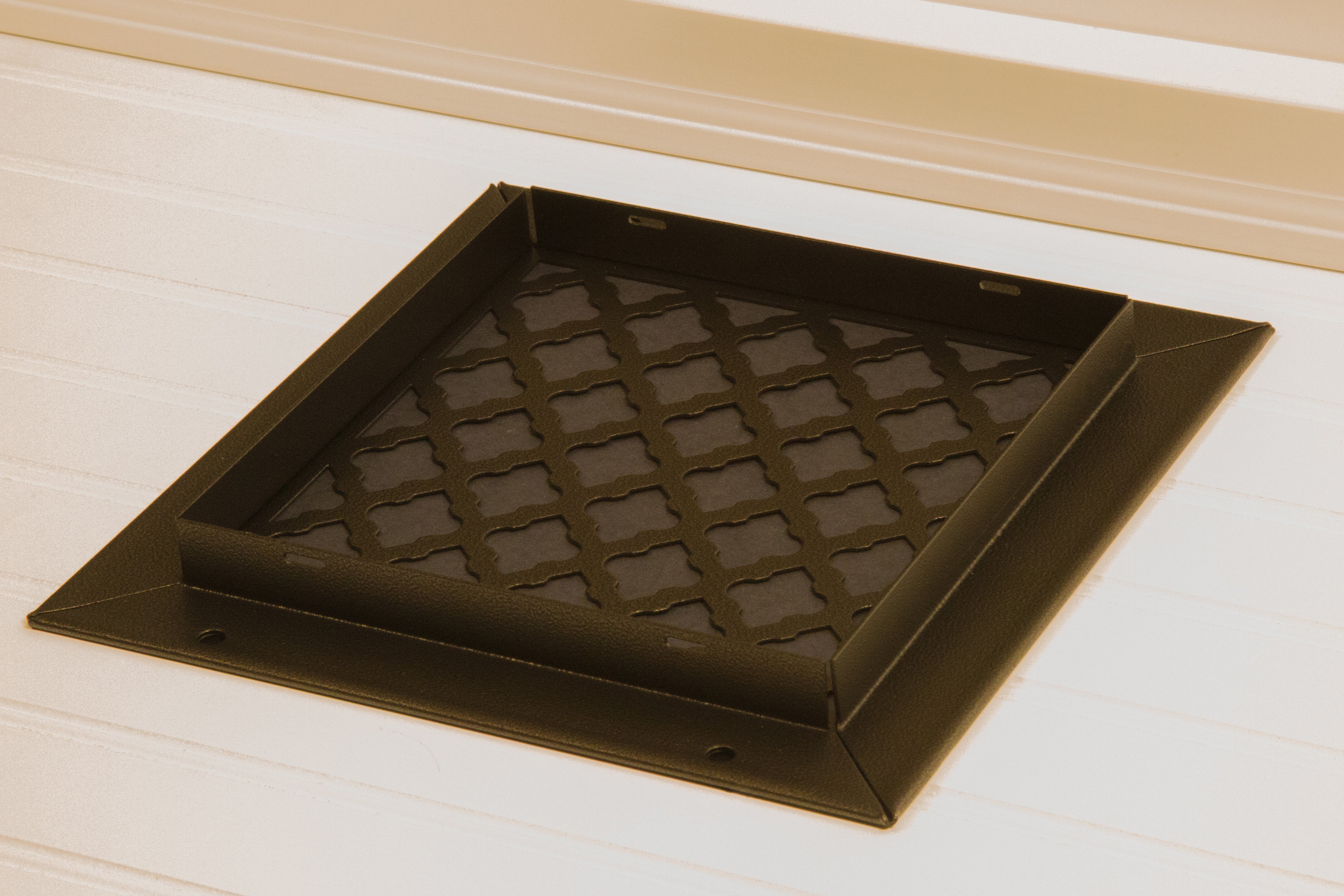

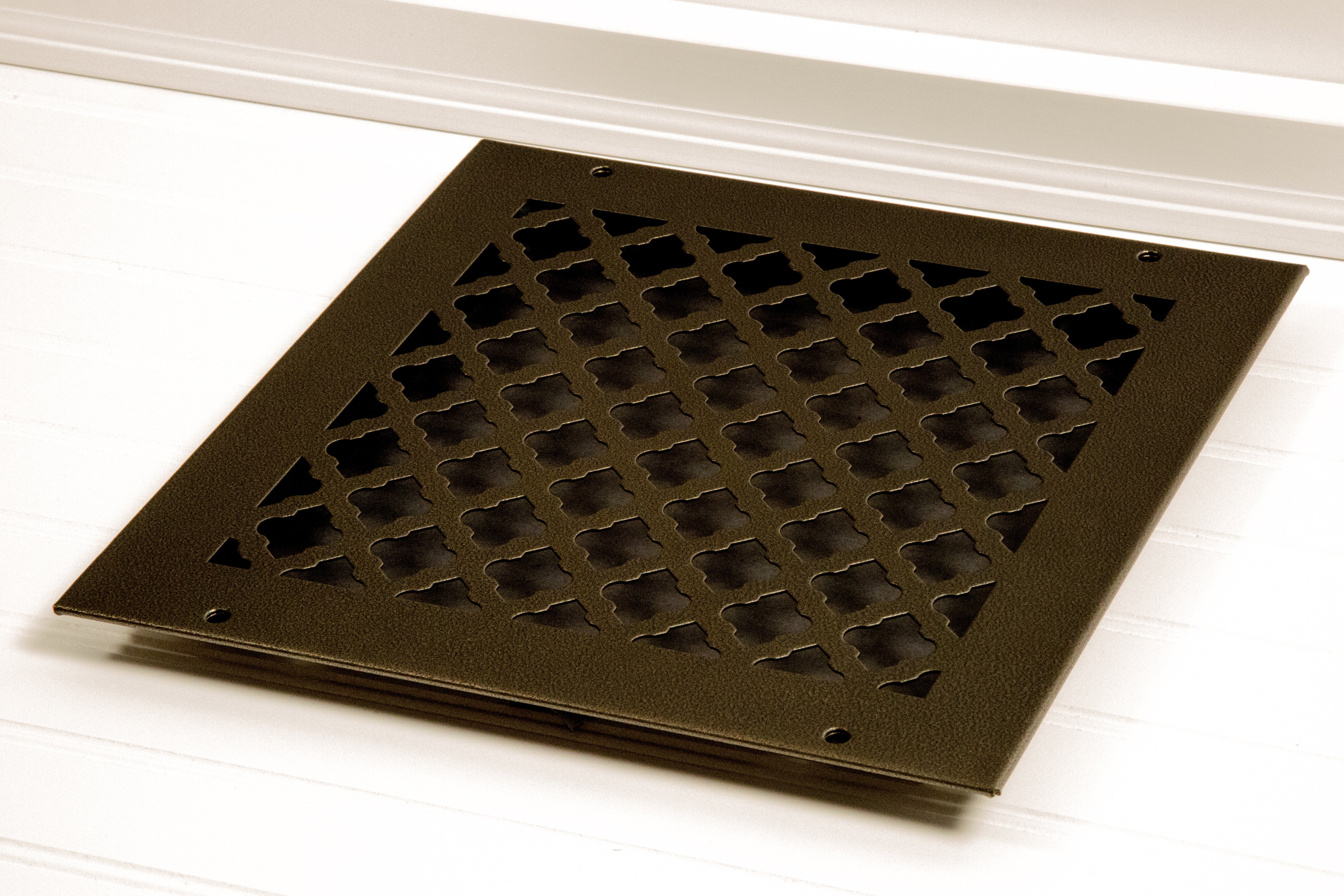

The SteelCrest BTU10X10RORBH is a fixed-blade return air grille constructed from solid steel with an Oil-Rubbed Bronze powder-coat finish. It is designed to cover a 10 x 10 inch duct opening with an overall face size of 12 x 12 inches, making it a direct-fit replacement that requires no cutting or modification. The slotted fixed design promotes consistent return airflow back to the air handler or furnace. HVAC technicians and remodeling contractors install this grille in both new construction and retrofit applications on walls or ceilings.

This grille is suited for residential forced-air HVAC systems where the return duct terminates at a 10 x 10 inch rough opening. The 12 x 12 inch face plate overlaps the opening perimeter, concealing drywall edges and providing a finished appearance. It is appropriate for installation on flat walls or flat ceilings in living spaces, hallways, and common areas where a durable, low-profile return grille with a classic oil-rubbed bronze aesthetic is specified.

Key Features

• Solid steel construction with Oil-Rubbed Bronze powder-coat finish for long-term durability
• Fixed slotted blade design supports consistent return airflow
• Fits 10 x 10 inch duct opening with a 12 x 12 inch finished face size
• Direct-replacement fit eliminates cutting or framing modifications
• Suitable for wall or ceiling installation in residential HVAC applications
• Powder-coat finish resists chipping and corrosion in conditioned interior environments

Compatibility

Designed as an OEM-style direct replacement for residential forced-air return air duct openings measuring 10 x 10 inches on walls or ceilings.

Installation Notes

A licensed HVAC technician or qualified contractor should install this grille. Power down the air handler or furnace at the disconnect before removing the existing grille to avoid drawing debris into the return system during service. Secure the grille to the surrounding wall or ceiling surface using appropriate fasteners for the substrate material. Verify the duct opening measures 10 x 10 inches before installation to confirm proper fit.

Technical Specifications

• Duct Opening Size: 10 x 10 inches
• Overall Face Size: 12 x 12 inches
• Blade Type: Fixed slotted
• Material: Solid steel
• Finish: Oil-Rubbed Bronze powder coat
• Mount Type: Wall or ceiling
• Package Weight: 7 pounds
• Package Dimensions: 14 x 14 x 4 inches
• Minimum Order Quantity: 1

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU10X10RORBH
