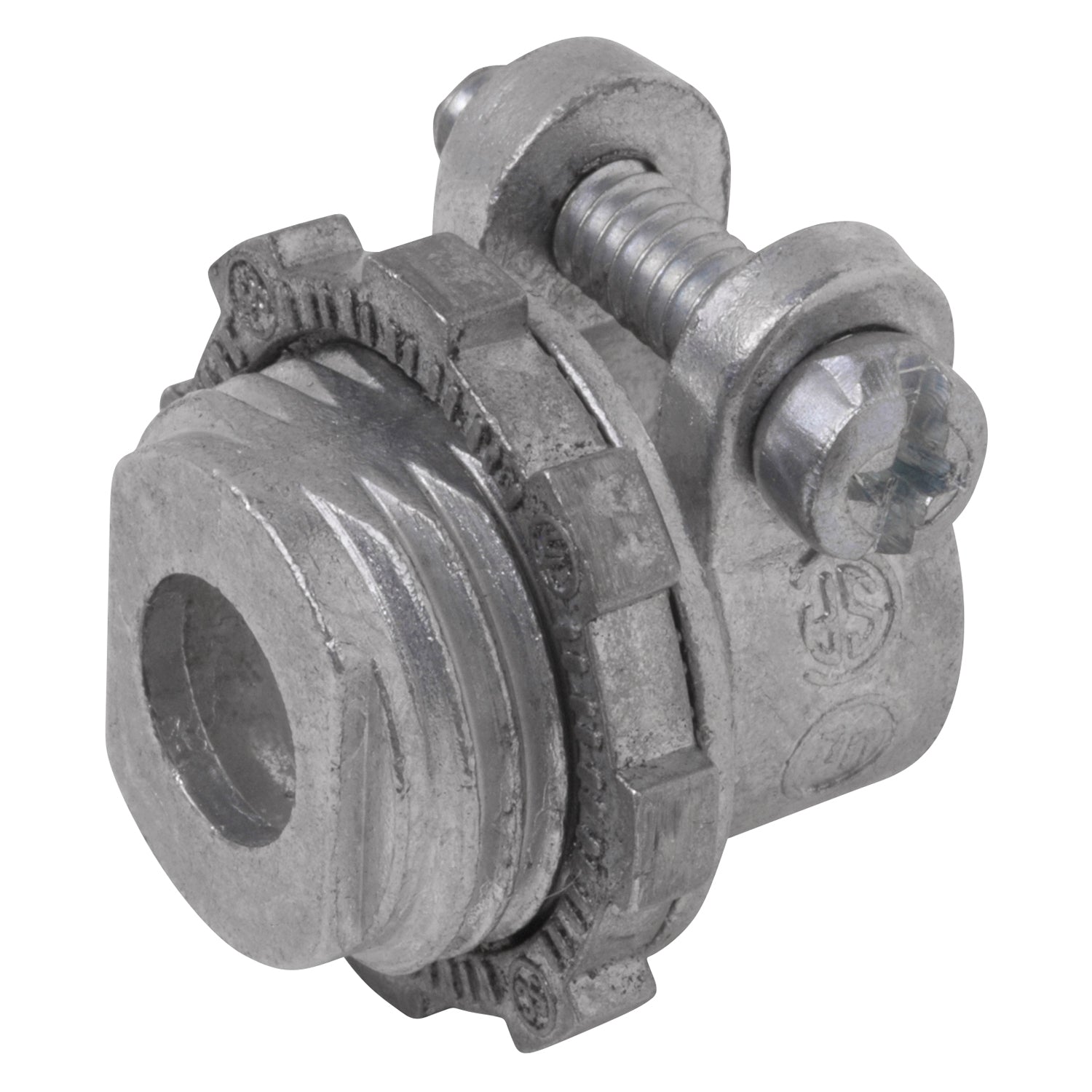

Steel City XC-274 1-1/4 inches Armored Cable/Flex Conduit Straight Squeeze Type Connector, Die Cast Zinc

Product Description

The STEEL CITY XC-274 is a 1-1/4" straight squeeze-type connector made of die-cast zinc. It connects and bonds 1-1/4 inch armored cable or flexible metallic conduit to a 1-1/4 inch knockout in a box or enclosure. The connector has a clamping range of 1.48 Inch - 1.65 Inch and a length of 1.91 Inch. Use for connecting armored cable and flexible metallic conduit.

• Squeeze-Type Connection
• Constructed of die cast zinc
• UL Listed E23018, CSA Certified

Product Highlights

The STEEL CITY XC-274 connector provides a secure and effective bond between armored cables or flexible metallic conduits and enclosures.

Product Information

Standard Information

• Brand: STEEL CITY
• Manufacturer Part Number: XC-274
• Country of Origin: Mexico

Technical Specifications

• Size: 1 1/4 in
• Type: Squeeze Connectors
• Brand: Steel City
• Material: Zinc Die Cast
• Standard: UL E23018
• Trade Size: 1-1/4 Inch
• Brand Name: Steel City / Iberville
• Manufacturer: STEEL CITY
• REACH: REACH 240 Compliant
• Certification/Standard: CSA
• UL: E23018
• ECCN: EAR99
• Country of Origin: MX - Mexico
• UPC: 78599144709
• UNSPSC: 39121311
• Connection Type: Squeeze
• Use With: Armored Cable and Flexible Metal Conduit
