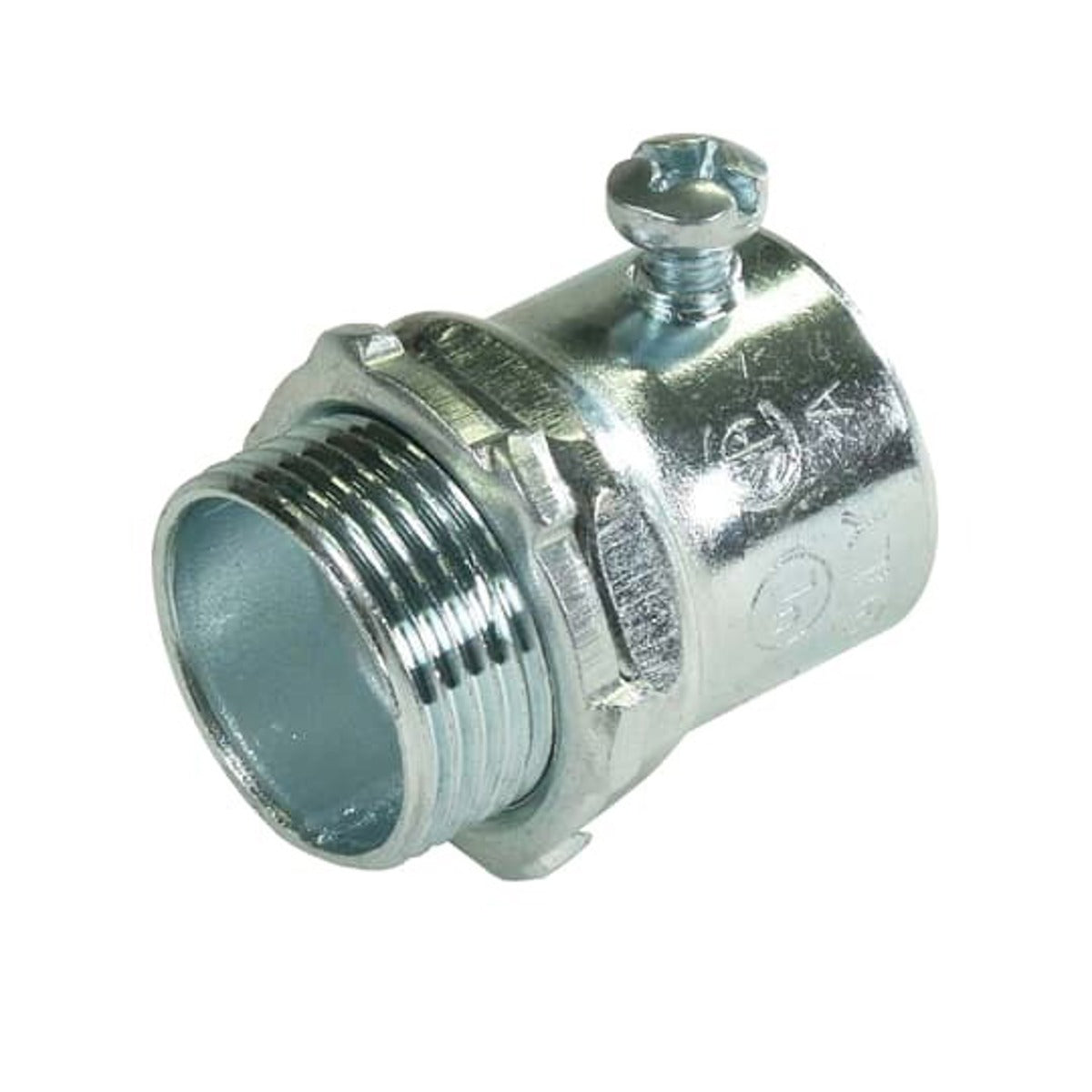

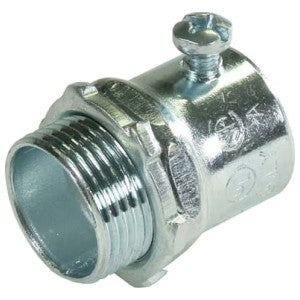

Steel City TC128A Set Screw Connector 3 Inch

Product Description

The STEEL CITY TC128A set screw connector joins 3 inch EMT conduit to a box or enclosure. It is made of zinc plated steel and is UL listed E-16592. This connector is concrete tight when taped and is for use with EMT conduit.

• Concrete tight when taped
• For use with EMT conduit
• Steel construction for strength and durability

Product Highlights

The STEEL CITY set screw connector is made of zinc plated steel and is UL listed E-16592. It is for use with EMT conduit.

Product Information

Standard Information

• Brand: STEEL CITY
• Manufacturer Part Number: TC128A
• Country of Origin: China

Technical Specifications

• Catalog Number: TC128A
• Manufacturer: STEEL CITY
• Brand: Steel City
• Country of Origin: India
• Application: For use with EMT conduit
• Finish: Zinc Plated
• Material: Steel
• Special Features: Concrete tight when taped
• Standard: UL E16592
• UPC: 785991025132
• GTIN: 00785991025132
• Item Type: EMT Conduit Fittings
• Cross Reference Products: ABBInstall HC-108|ABBInstall TC-128-A|ABBInstall TC-128SC|AFC SC-300|AmFittings SS57US|Appleton SNTC-300|Appleton TW-300-S|Bridgeport 237|Crouse 457|Garvin SSCN-300
• ECCN: EAR99
• UNSPSC: 39121434
• Trade Size: 3 in.
• Throat Type: Non-Insulated
• Type: Set Screw
• Constructional Feature: Concrete Tight
• Approval: UL
• Used On: EMT Conduit
• Product Name: STEEL FITTING,NON THREADED
• Product Type: EMT Conduit Fittings
• Special Functions: Concrete tight when taped.
• Surface Finishing: Zinc Plated
• Selling Unit of Measure: each
• IDEA Granular Category Code (IGCC): 4611 >> Electrical metallic tubing EMT connectors
• IGCC: 4611
• Suitable For Use With: EMT Conduit
• Series: TC
• Mounting Type: Screw
• Standard & Approvals: UL E16592 Listed, RoHS Compliant
• Connection Type: Set-Screw
• Use With: EMT Conduit
• Compliance and Certifications: RoHS
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001180 Screw connection for protective metallic hose
• Nominal size in inch: 3 inch
• Model: Straight
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Thread
• One-piece: Y
• Material housing: Zinc die-cast
• Surface protection: Untreated
• Approved in combination with protective conduit DIN EN 61386-23: N
• Approved in combination with protective conduit FI: N
