Steel City TC117A Compression Connector 2-1/2 Inches

Product Description

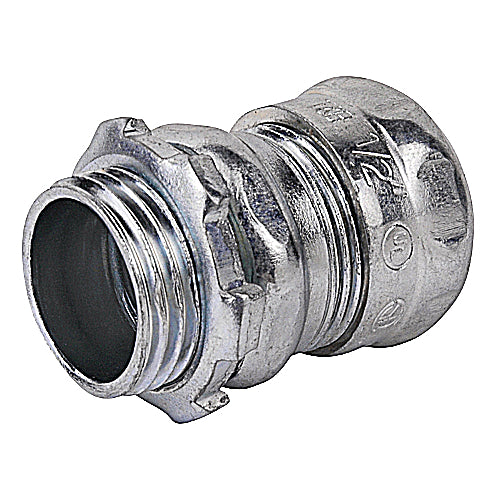

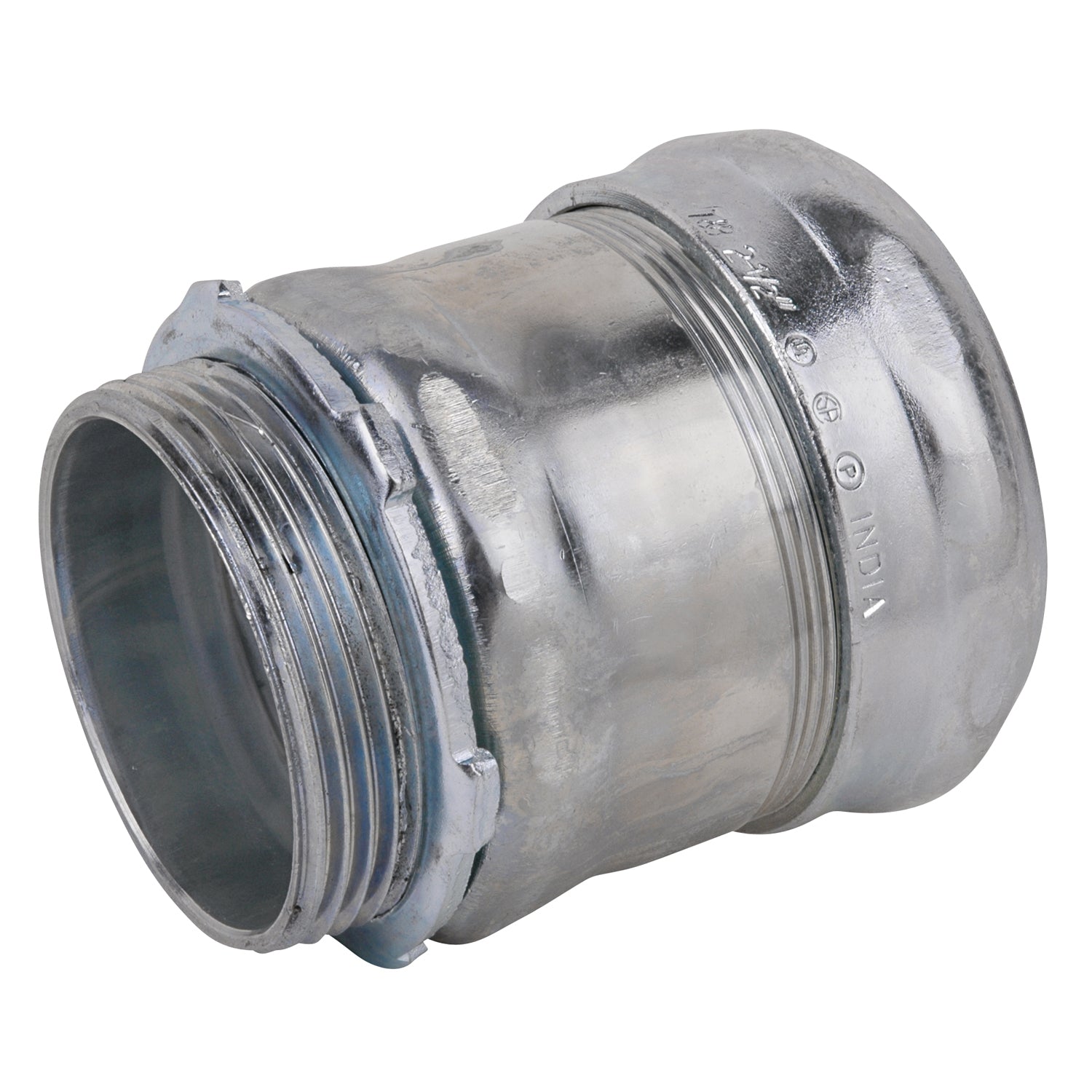

The STEEL CITY TC117A is a compression connector designed for use with EMT conduit. This concrete-tight connector is constructed from steel and features a zinc-plated finish. It connects and bonds 2-1/2 inch EMT conduit to a box or enclosure. UL listed E-16592.

• Concrete Tight
• Connects and bonds 2-1/2 inch EMT conduit to a box or enclosure
• Constructed of zinc plated steel

Product Highlights

This Steel City compression connector provides a secure and reliable connection for EMT conduit applications, ensuring a concrete-tight seal.

Product Information

Standard Information

• Brand: STEEL CITY
• Manufacturer Part Number: TC117A
• Country of Origin: India

Technical Specifications

• Catalog Number: TC117A
• Brand: Steel City
• Country of Origin: India
• Made in USA: No
• Application: For use with EMT conduit
• Finish: Zinc Plated
• Material: Steel
• Special Features: Concrete Tight
• Standard: UL E16592
• UPC: 785991025019
• GTIN: 00785991025019
• Item Type: EMT Conduit Fittings
• Cross Reference Products: ABBInstall TC-117-A|AFC CC-250|AmFittings EC756US|Appleton TW-250CS|Bridgeport 256|Bridgeport 256-US|Crouse 656|Crouse 656US|Garvin CCN-250|Halex 62325B
• ECCN: EAR99
• UNSPSC: 39121434
• Throat Type: Non-Insulated
• Type: Compression
• Trade Size: 2-1/2 Inch
• Constructional Feature: Concrete Tight
• Approval: UL
• Used On: EMT Conduit
• IGCC: 4611
• Family group: FITTINGS
• Manufacturer: STEEL CITY
• WES Product code: 2379712117
• Size: 2-1/2"
• Compliance and Certifications: RoHS, RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Nominal size in inch: 2 1/2 inch
• Model: Straight
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Thread
• One-piece: Y
• Material housing: Steel
• Surface protection: Untreated
• Approved in combination with protective conduit DIN EN 61386-23: N
• Approved in combination with protective conduit FI: N
• Series: TC
• Suitable For Use With: EMT Conduit
• Standard & Approvals: UL E 16592, RoHS Compliant
• Catalog ID: S-CTC117A
