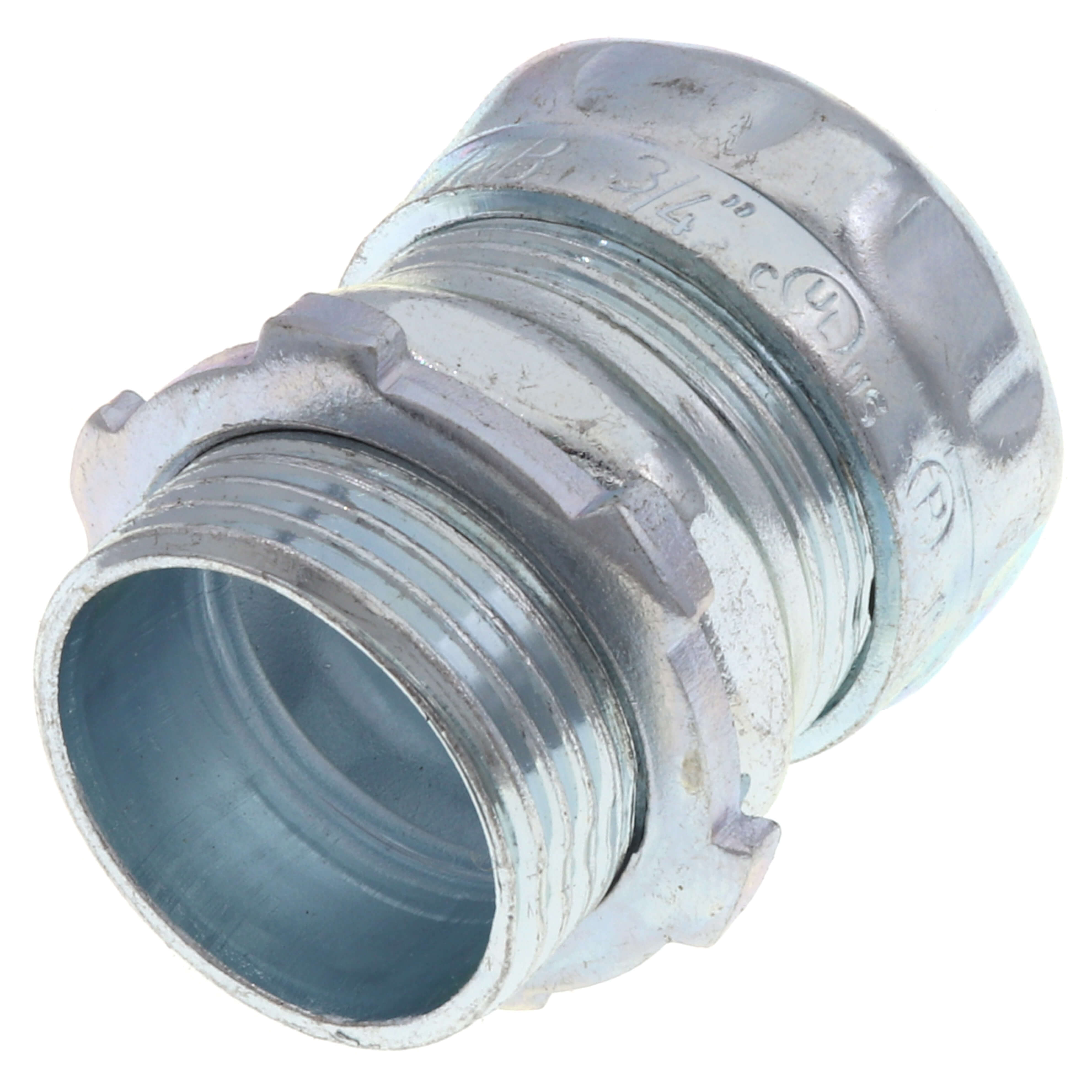

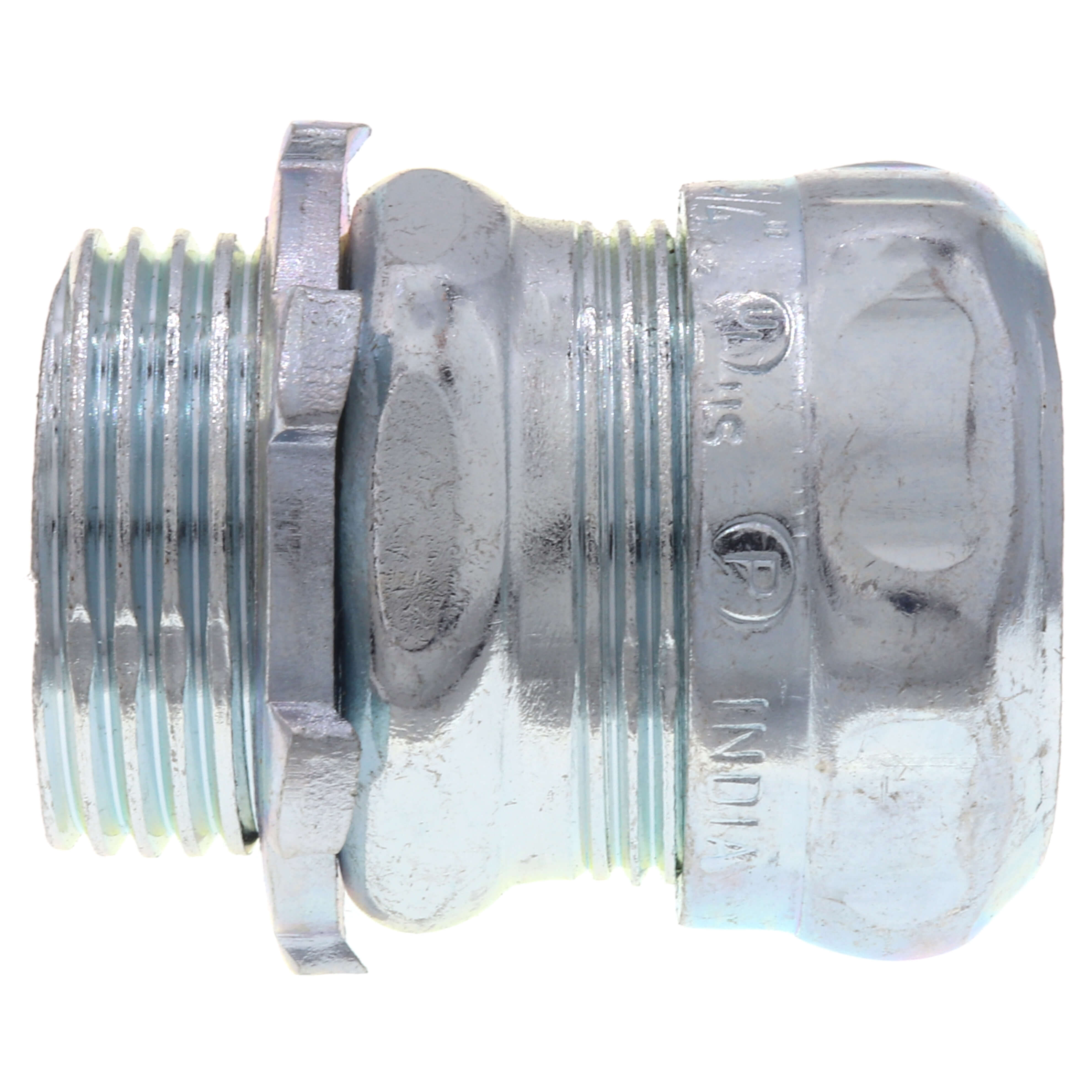

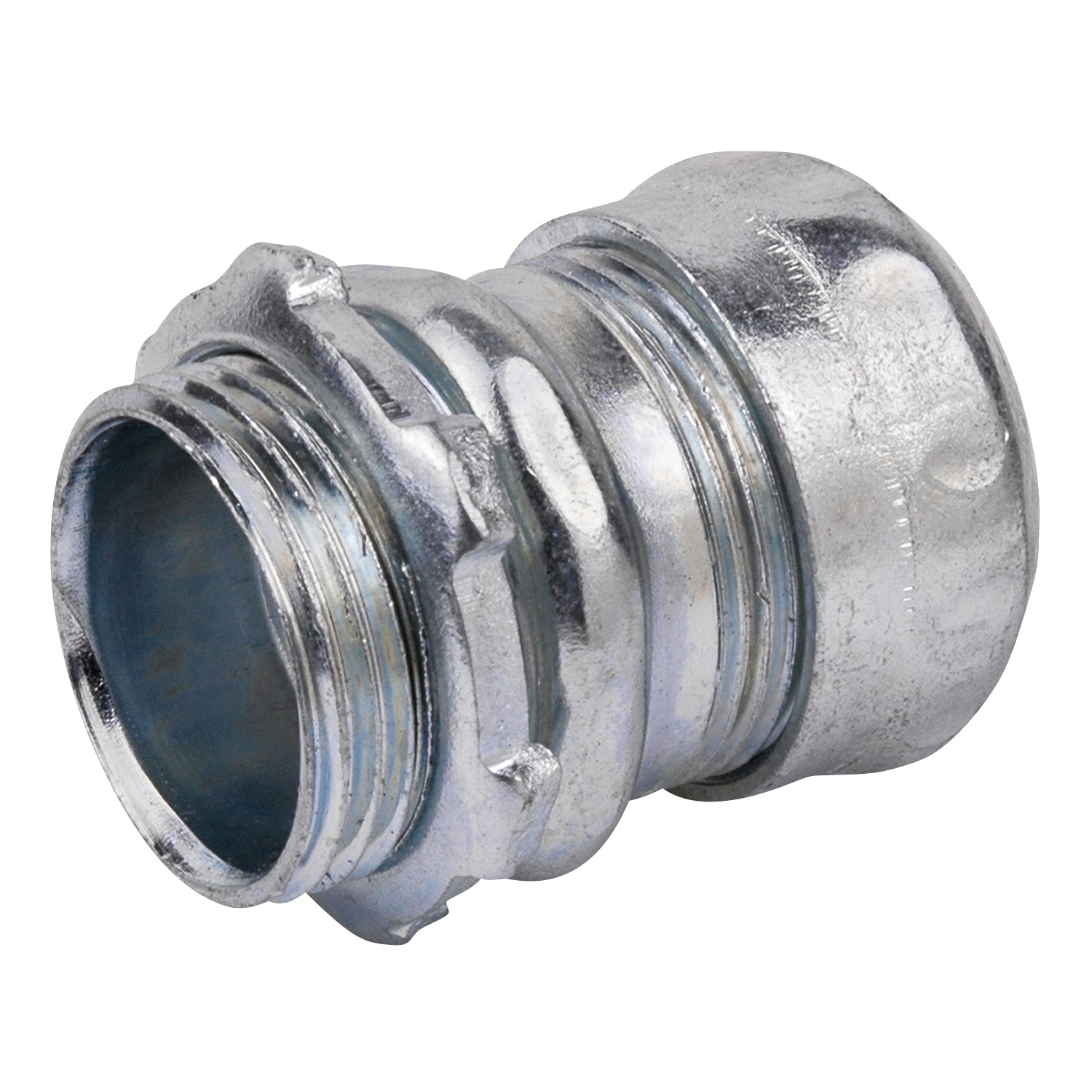

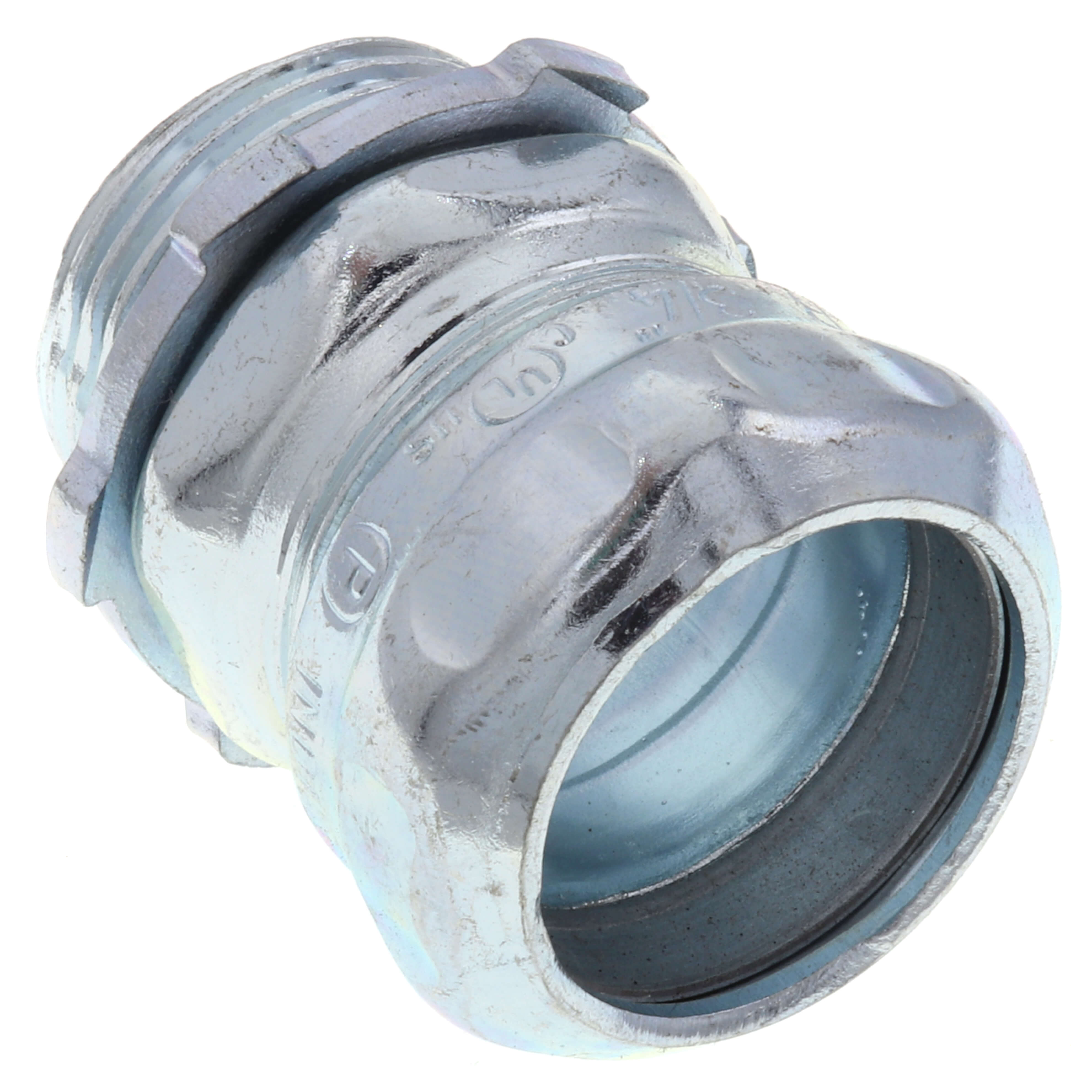

Steel City TC112A Compression Connector 3/4 Inch

Product Description

The STEEL CITY TC112A compression connector is concrete tight and made of steel. This connector is designed for use with 3/4 inch EMT conduit. It connects and bonds EMT conduit to a box or enclosure. The connector is UL listed E-16592.

• Concrete Tight
• For use with EMT conduit
• Constructed of zinc plated steel

Product Highlights

The STEEL CITY TC112A compression connector ensures a secure and concrete-tight connection for EMT conduit applications.

Product Information

Standard Information

• Brand: STEEL CITY
• Manufacturer Part Number: TC112A
• Country of Origin: India

Technical Specifications

• Catalog Number: TC112A
• Manufacturer: ABB - Installation Products
• Brand: Steel City
• Country of Origin: India
• Made in USA: No
• Application: For use with EMT conduit
• Finish: Zinc Plated
• Material: Steel
• Special Features: Concrete Tight
• Standard: UL E16592
• UPC: 785991024968
• GTIN: 00785991024968
• Item Type: EMT Conduit Fittings
• Cross Reference Products: ABBInstall TC112A|ABBInstall TC-112-SC|AFC CC-75|AmFittings EC751US|Appleton TW-75CS|Bridgeport 251|Bridgeport 251-US|Crouse 651S|Crouse 651SUS|Garvin CCN-75
• ECCN: EAR99
• UNSPSC: 39121434
• Throat Type: Non-Insulated
• Trade Size: 3/4 Inch
• Approval: UL
• Used On: EMT Conduit
• IGCC: 4611
• Family group: FITTINGS
• WES Product code: 2379712112
• Size [Features]: 3/4"
• Nominal size in inch: 3/4 inch
• Model: Straight
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Thread
• One-piece: Y
• Material housing: Steel
• Surface protection: Untreated
• Approved in combination with protective conduit DIN EN 61386-23: N
• Approved in combination with protective conduit FI: N
• Applications: For use with EMT conduit
• Size: 3/4 in
• Series: TC
• Suitable For Use With: EMT Conduit
• Standard & Approvals: UL E 16592, RoHS Compliant
• Compliance and Certifications: RoHS, RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
