Product Description

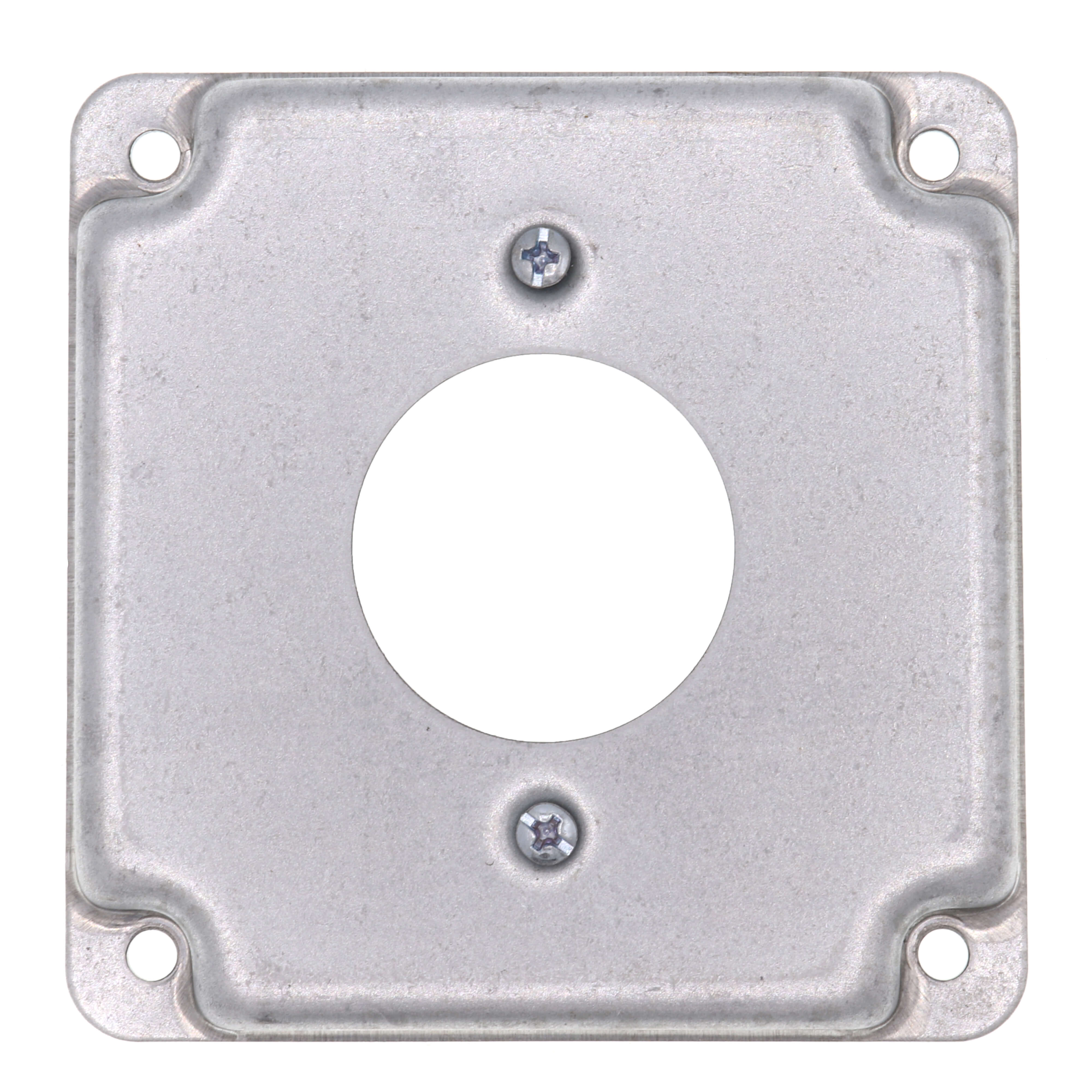

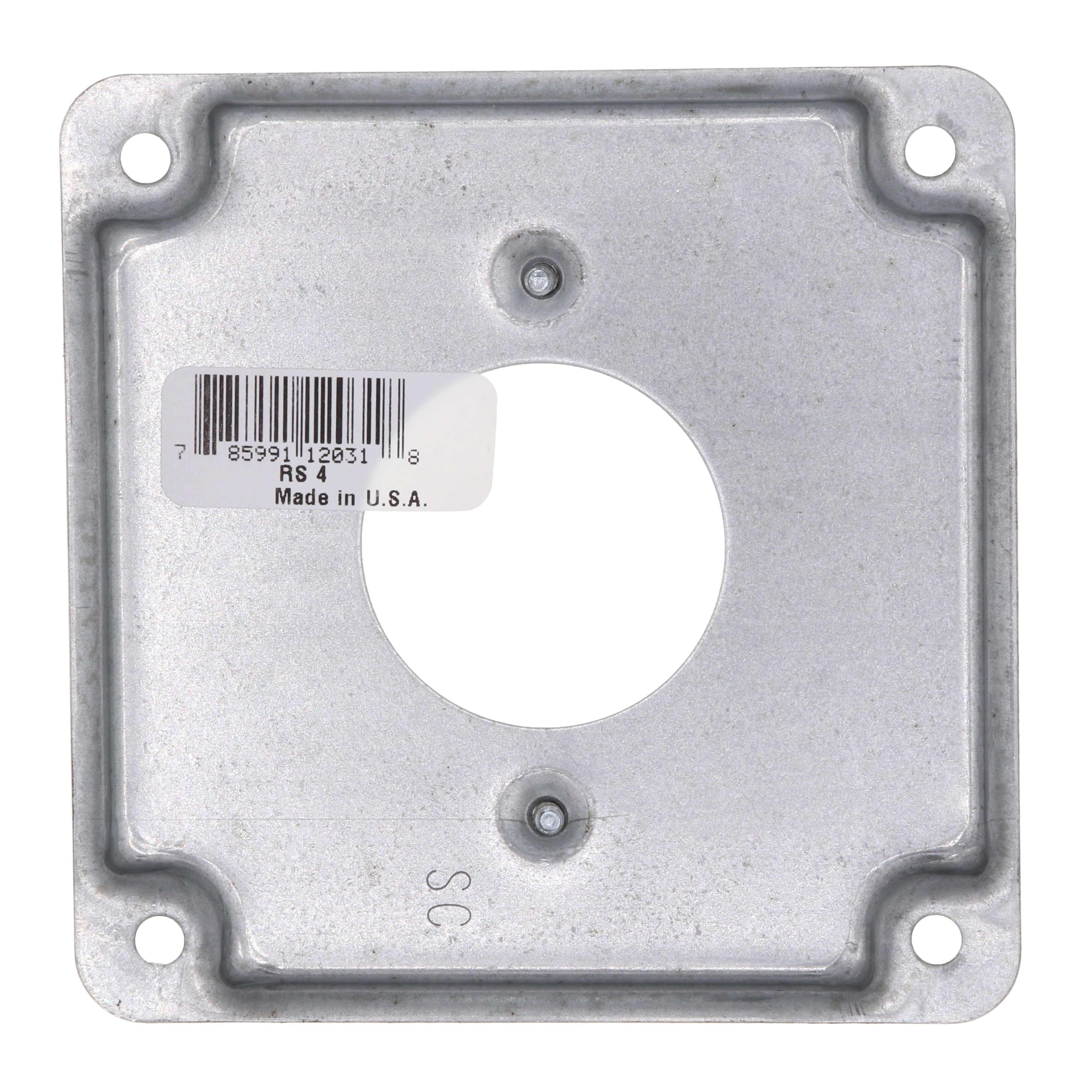

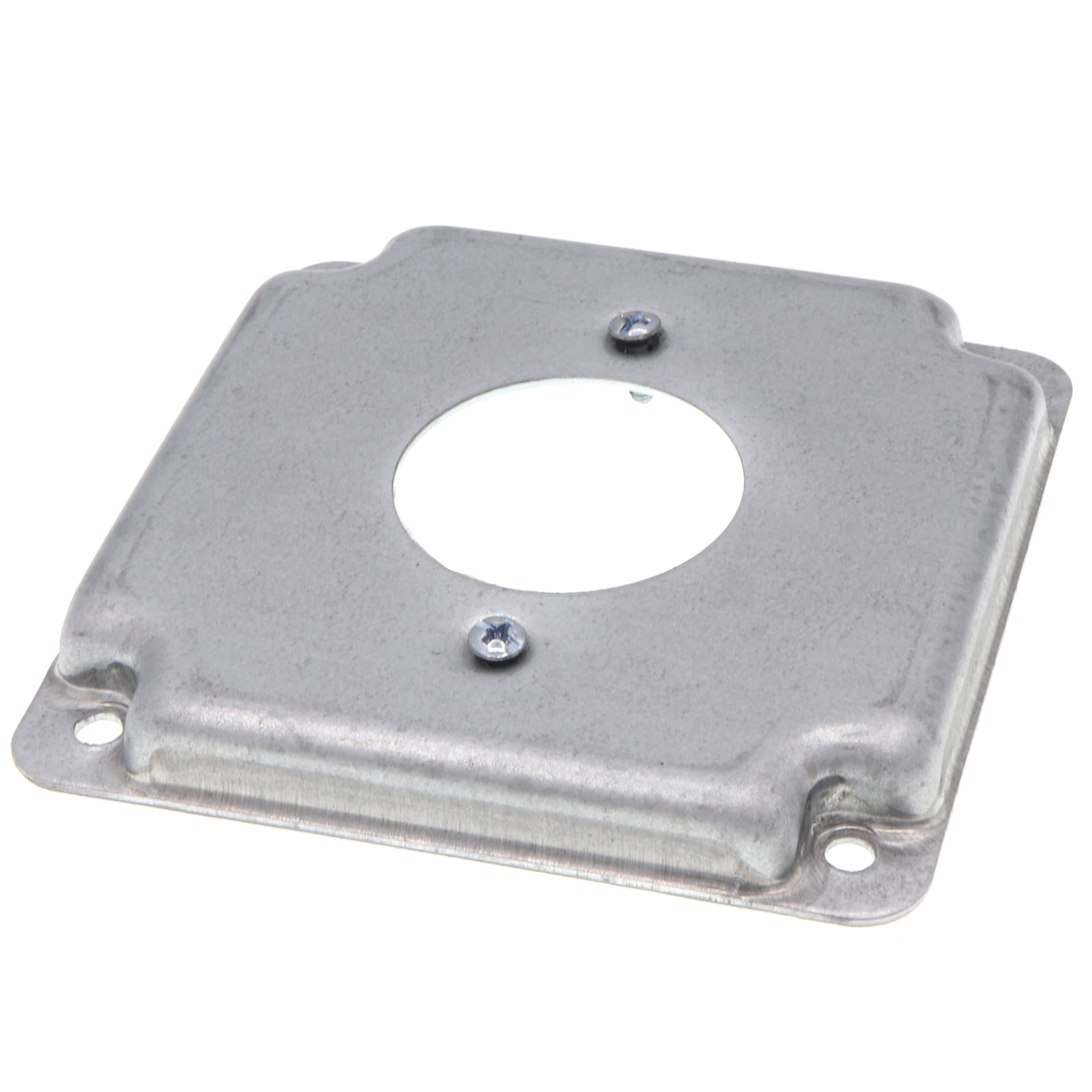

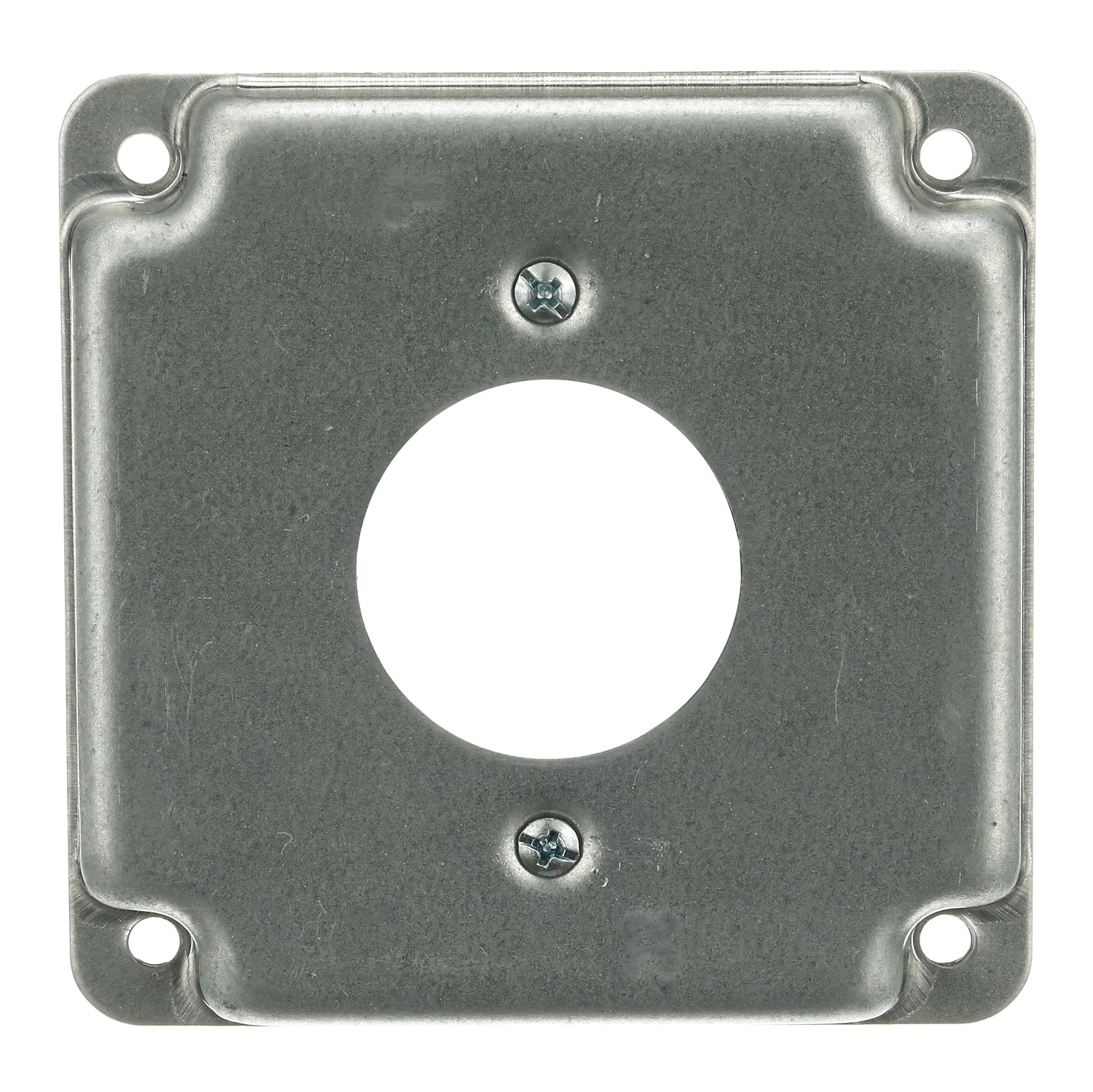

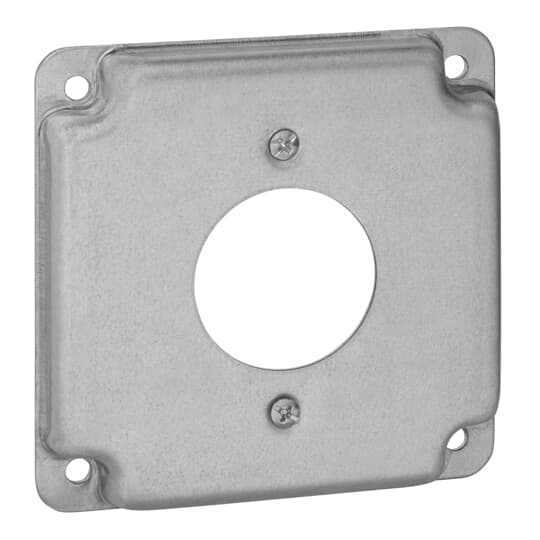

The STEEL CITY RS-4 is a square box surface cover with a 5 cubic inch capacity. Measuring 4 inches square x 1/2 inch deep, it features a 1-19/32 inch diameter hole. Constructed from galvanized steel, this cover is designed for use with one 4-wire twist-lock single receptacle.
- For use with One 4-Wire Twist-Lock Single Receptacle
- Galvanized Steel
- Square Box Surface Cover
Product Highlights
This STEEL CITY surface cover is ideal for electrical construction, providing a secure and reliable enclosure for twist-lock single receptacles.
Product Information
Standard Information
-
Brand: STEEL CITY
-
Manufacturer Part Number: RS-4
Technical Specifications
-
Size: 4 in
-
Type: Outlet Box Covers
-
Brand: Steel City
-
Color: Silver
-
Shape: Square
-
Finish: Pre-Galvanized
-
Material: Steel
-
Standard: UL E2969
-
Product UPC: 78599112031
-
12-Digit UPC: 785991120318
-
Applications: For use with one 4-wire twist-lock single receptacle
-
Box Size: 4 Inch
-
Opening Type: (1) 1-19/32 Inch Dia Twist Locking Single Receptacle
-
Raised: 1/2 Inch
-
Capacity: 5 Cu Inch
-
Approval: UL, CSA
-
Application: For use with one 4-wire twist-lock single receptacle
-
Manufacturer: STEEL CITY
-
Cubic Capacity: 5 cu in
-
Number of Gangs [Features]: 1
-
Category: Cover for box/housing for surface mounting on the wall/ceiling
-
Knockout Size: 1-19/32 in
-
Length: 4 in
-
Mounting Type: Surface
-
Width: 4 in
-
Standard & Approvals: UL E2969, RoHS Compliant
-
Series: RS
