Steel City CWX-25 Gangable Switch Box with Clamp and Ears

Product Description

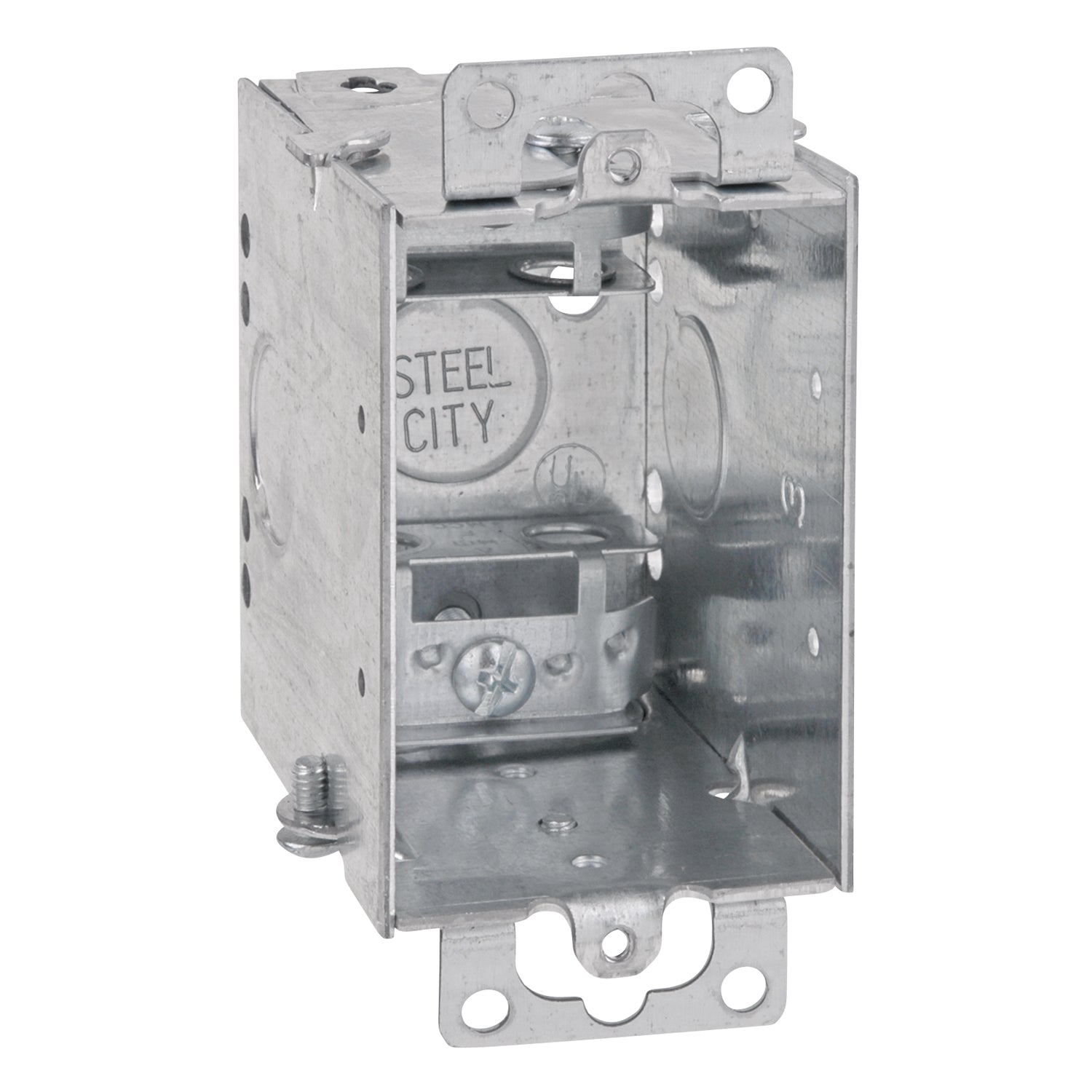

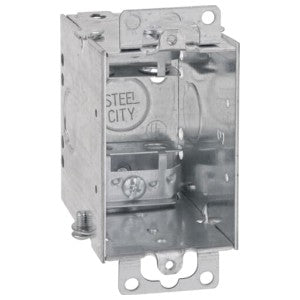

The Steel City CWX-25 is a gangable switch box designed for use with armored and metal clad cable. Constructed from pre-galvanized steel, it features a cubic capacity of fourteen cubic inches. The switch box measures three inches in length, two inches in width, and two and three-quarters inches in depth. It includes armored cable clamps, known as C-3 clamps, and flush ears for easy installation.

• Compatible with armored/metal clad cable
• Easy to install with included clamps and ears
• Pre-galvanized steel for durability

Product Highlights

The CWX-25 is ideal for electrical applications requiring reliable and efficient cable management. It is suitable for residential and commercial wiring projects.

Product Information

Standard Information

• Catalog Number: CWX-25
• Manufacturer: Steel City-Kindorf / Thomas & Betts

Technical Specifications

• Size: 3 Inches Height x 2 Inches Width x 2-3/4 Inches Depth
• Material: Steel
• Cubic Capacity: 14 cu in
• Knockouts: 1/2 Inch
• Application: For use with armored/metal clad cable
• Standard: UL E2969
• GTIN: 00785991106558
• UPC: 785991106558
