Steel City BG809L 31/2 GND BUSH RGD/IMC

Product Description

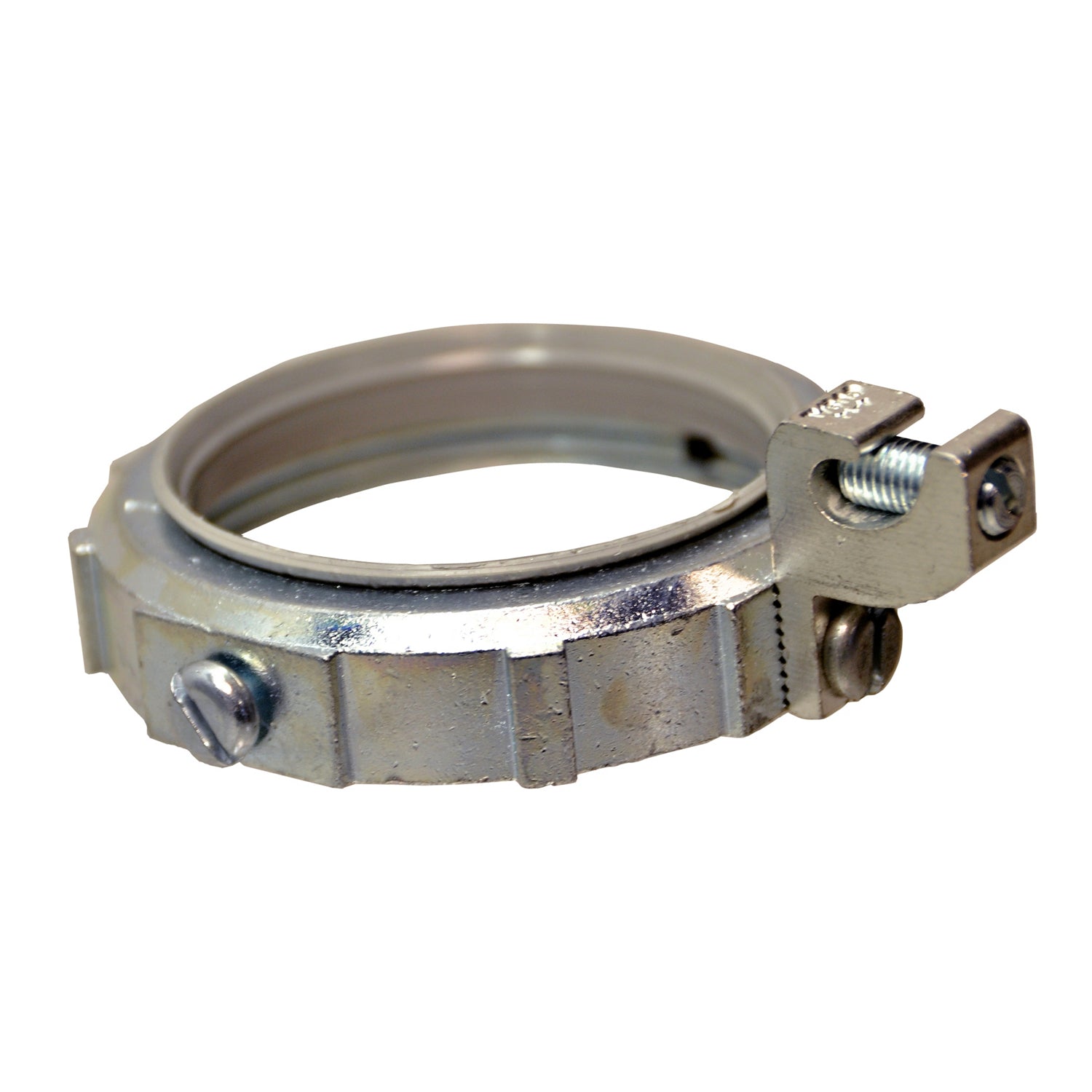

The Steel City BG809L is an insulated ground bushing designed for use with rigid and intermediate metal conduit. This product features a diameter of three and one-half inches and is constructed from durable die-cast zinc. It provides a reliable connection point for grounding wires, ensuring effective grounding of electrical systems.

• Insulated design to prevent electric shock
• Designed for use with rigid and IMC conduits
• Constructed from die-cast zinc for durability

Product Highlights

This insulated ground bushing meets electrical codes and provides safety for various applications in residential and commercial electrical systems.

Product Information

Standard Information

• Manufacturer: Steel City
• UPC: 78599108871

Technical Specifications

• Type: Insulated Ground Bushing
• Size: 3-1/2 Inch
• Material: Zinc Die Cast
• Weight: 3 lbs
• Application: For Use with Rigid/IMC Conduits
• Special Features: 105 Degree C Thermoplastic Liners; Heavy Reinforced Ribs
• Family Group: Fittings
• WES Product Code: 2379060092
