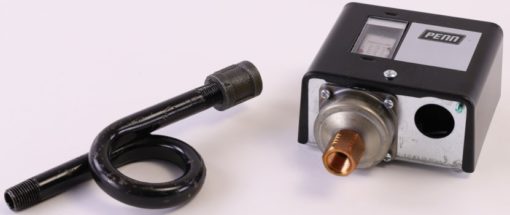

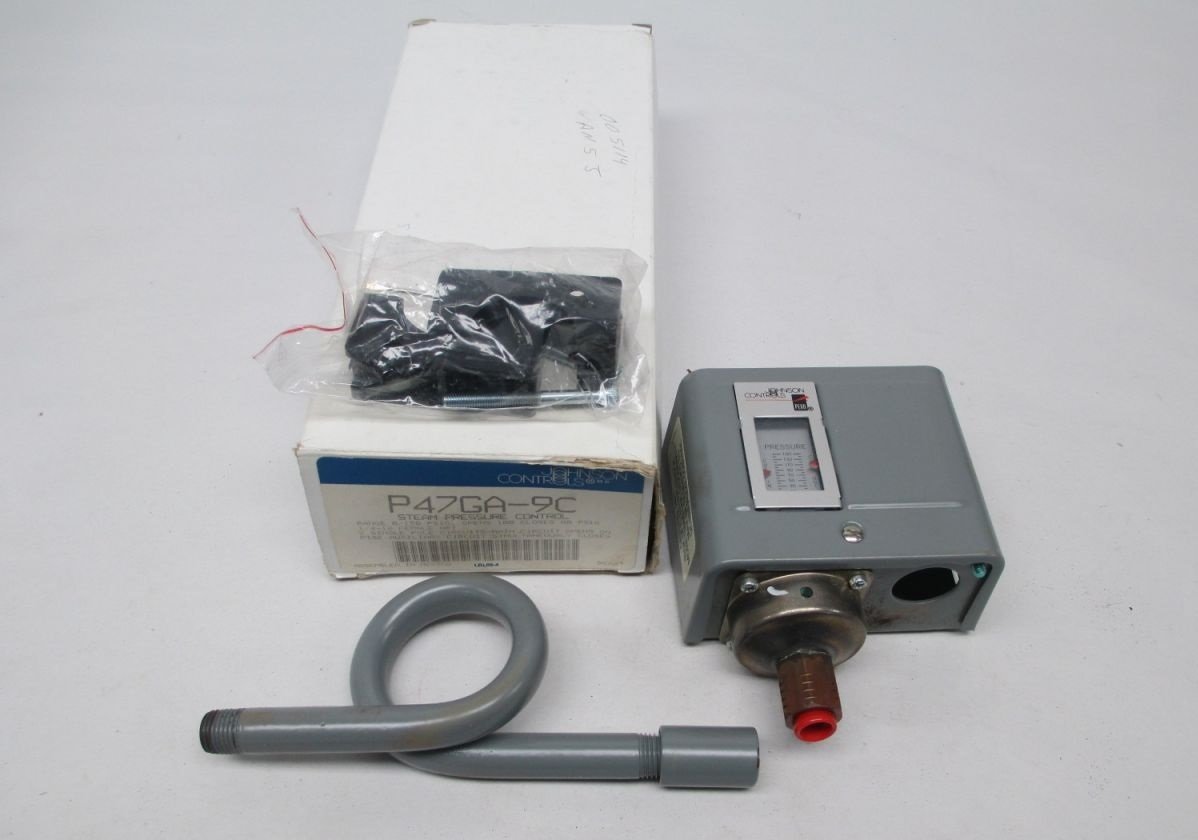

Johnson Controls P47GA-9C Steam Pressure Control Mechanical Component

Product Description

The Johnson Controls P47GA-9C Steam Pressure Control is engineered for precise monitoring and control of steam pressure within HVAC systems. This mechanical component is designed to operate with a range of 0 to 150 Psig and can handle a maximum pressure of 325 Psig. It features a 4-wire, two-circuit system with automatic reset functionality.

• Enhances safety and efficiency in steam boilers
• Automatic reset to maintain control under varying pressure
• Durable construction for long-term reliability

Product Highlights

The unit's main circuit opens high and the auxiliary opens low, providing critical dual-safety features. Its robust design ensures performance stability under industrial conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Application: HVAC systems, steam boilers

Technical Specifications

• Control Type: Steam Pressure
• Operation Range: 0-150 Psig
• Maximum Pressure: 325 Psig
• Reset Type: Automatic
• Electrical Configuration: 4-wire, two-circuit
