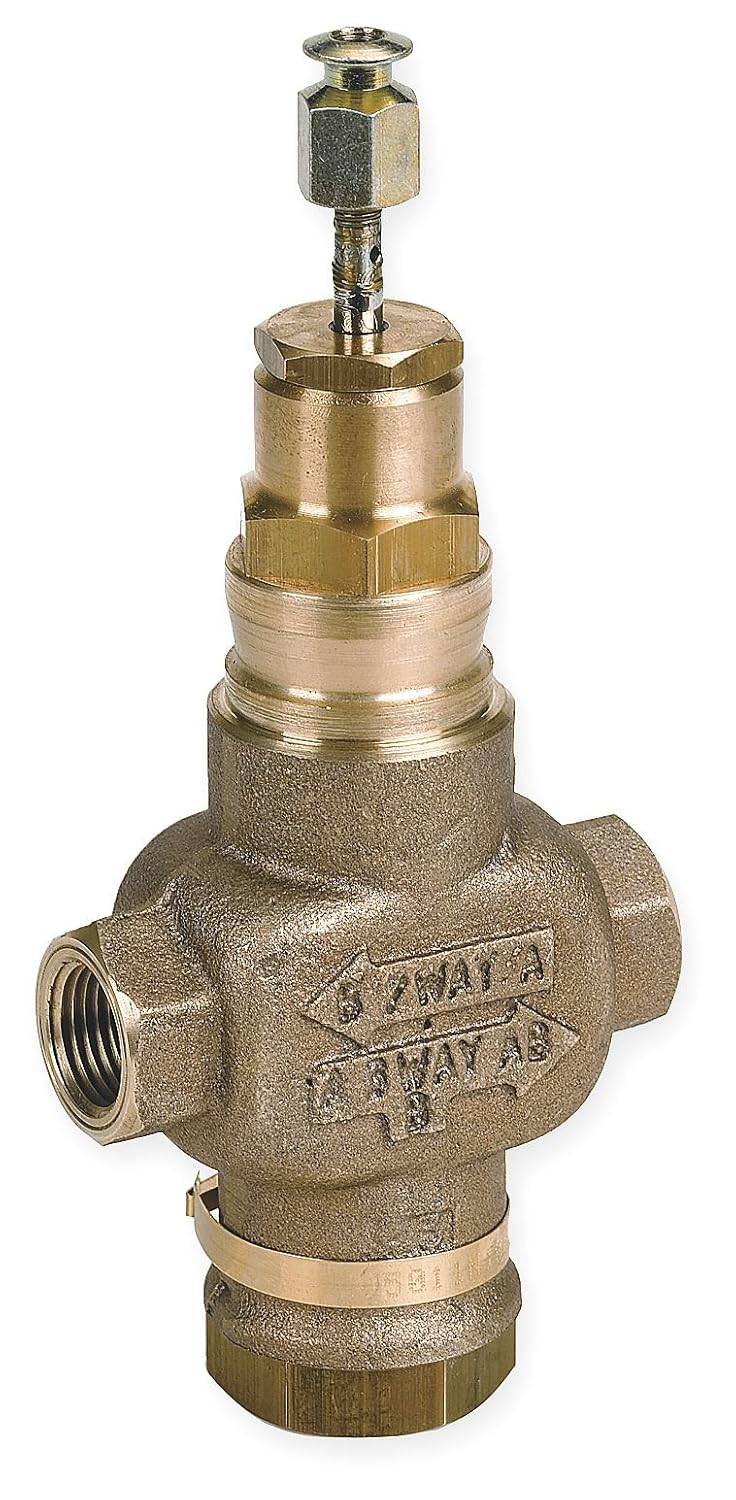

Honeywell V5011N1057 Two-Way Globe Valve 3/4 NPT

Product Description

The Honeywell V5011N1057 is a 3/4 inch two-way globe valve designed for controlling steam, water, and glycol solutions in heating or cooling systems. This valve, with a female NPT connection, is used in both two-position and modulating control systems.

• Direct and reverse acting
• High pressure steam models with stainless steel trim
• Spring-loaded, self-adjusting packing

Product Highlights

This Honeywell valve features a bronze body, bronze trim, and stainless steel stem, ensuring durability and corrosion resistance. The V5011N1057 is known for its equal percentage flow characteristics for water and linear for steam, making it suitable for various applications.

Product Information

Standard Information

• Brand: Honeywell
• Model: V5011N
• Valve Size: 3/4 inch
• Valve Application: Steam, Water, Glycol

Technical Specifications

• Valve Type: Globe Valve
• Connection Type: Female NPT
• Max Pressure: 250 psi
• Temperature Rating: -20 to 400 degrees Fahrenheit
• Flow Characteristic: Equal Percentage
• Materials: Bronze body, Stainless Steel stem
• Dimensions: 3.9 x 2.6 x 8.9 inches
• Weight: 3 pounds
