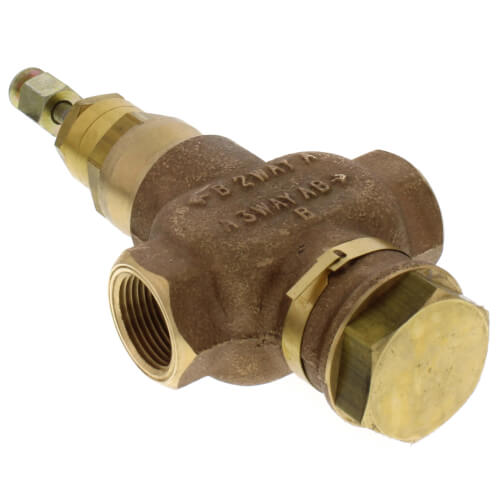

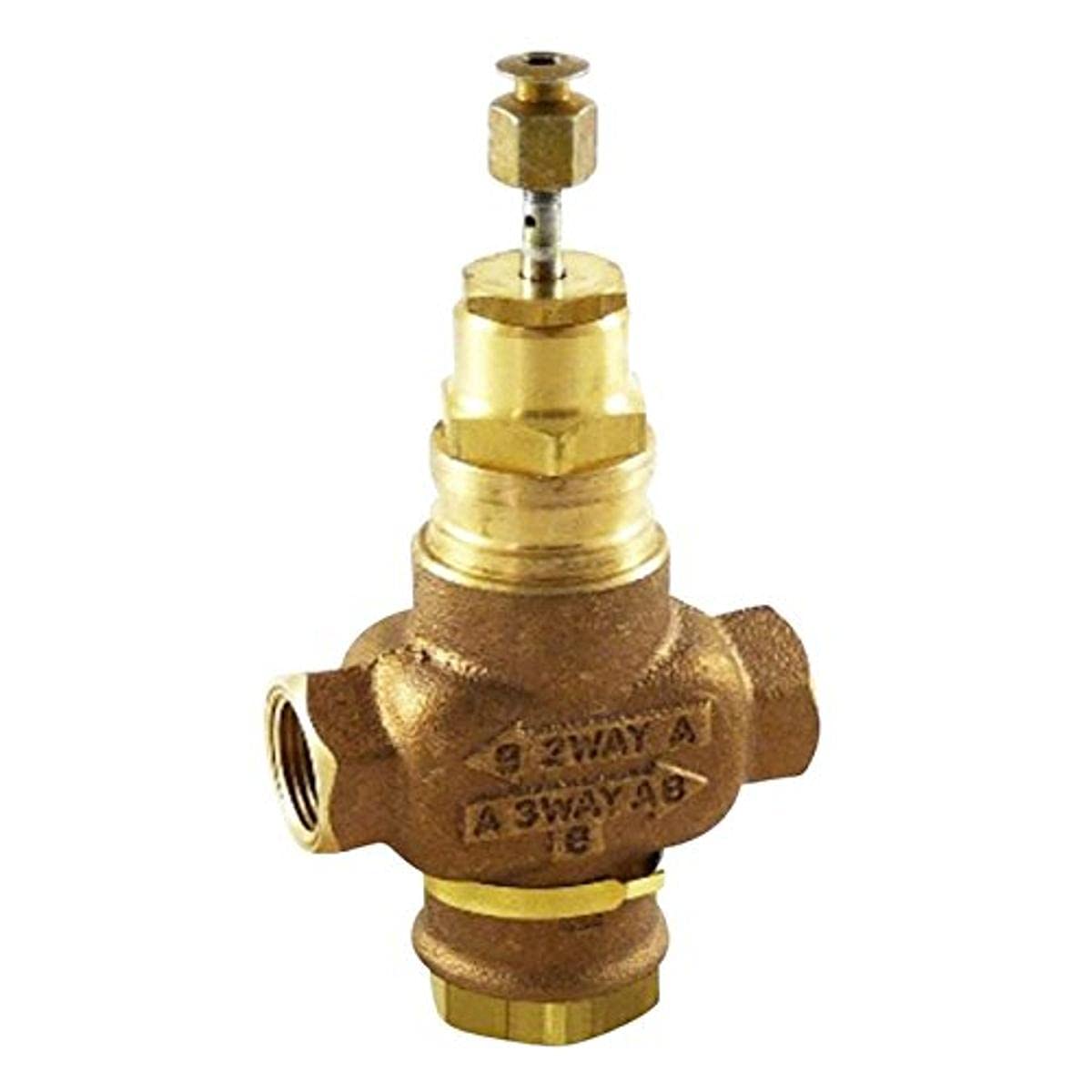

Honeywell V5011N2055 3/4 Inch 2-Way F-NPT Globe Valve

Product Description

The Honeywell V5011N2055 is a 3/4 inch 2-way F-NPT globe valve designed for controlling steam, water, and glycol solutions in various HVAC applications. Ideal for both heating and cooling systems, it features a red brass body and stainless steel components for enhanced durability and corrosion resistance.

• Brand: Honeywell
• Product Number: V5011N2055
• Suitable for steam, water, and glycol solutions

Product Highlights

This valve is suitable for industrial, commercial, and residential applications. It offers a low seat leakage rate and high rangeability, ensuring precise control over fluid flow.

Product Information

Standard Information

• Valve Type: 2-way, Globe Valve
• Body Pattern: Two-way
• Controlled Medium: Steam, water with up to 50% glycol concentration
• Connection Type: Female NPT

Technical Specifications

• Item Number: V5011N2055
• Valve Size: 3/4 inch
• Body Material: Red Brass
• Valve Connection: NPT
• Max Pressure: 15 psi WSP, 250 psi WOG
• Temperature Rating: 36 F to 248 F (water), 340 F (steam)
• Flow Capacity (Cv): 7.3
• Stem Travel: 3/4 inch
• Leakage Rating: 0.05% of Cv
• Dimensions: 6-5/8 in. high x 3-1/4 in. wide x 1-9/16 in. deep
