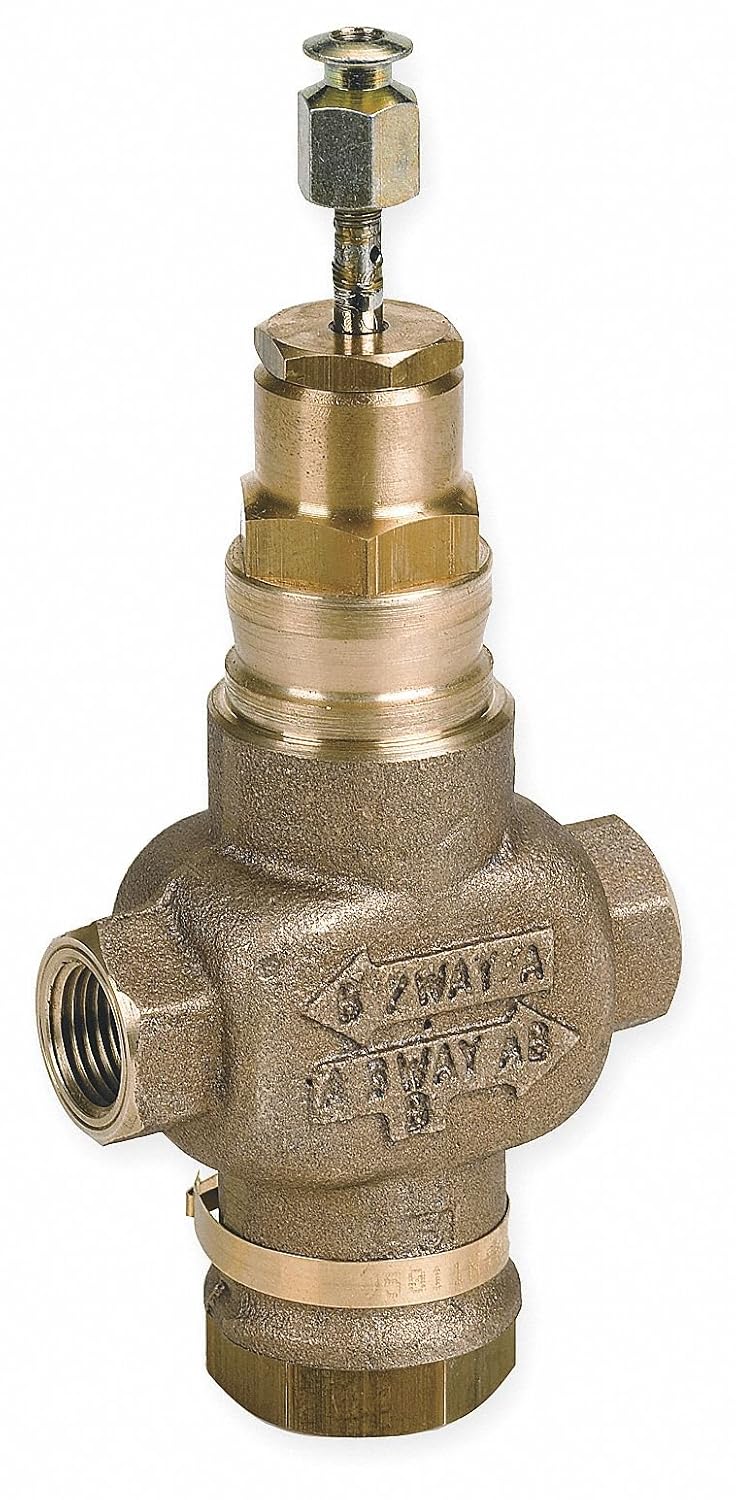

Honeywell V5011N1008 1/2 2-Way F-NPT Globe Valve 0.73 Cv

Product Description

Designed for precision and reliability, the Honeywell V5011N1008 1/2 inch Globe Valve is engineered to handle water, glycol mixtures, and steam in HVAC systems. Ideal for both two-position and modulating control systems, this valve ensures robust performance in heating and cooling applications.

• Robust red brass body with female NPT-threaded connections
• Low seat leakage rate enhances system efficiency
• Compatible with a range of actuators for versatile control options

Product Highlights

The V5011N1008 valve offers a straightforward design with durable stainless steel components, providing resistance against corrosion and ensuring long-term operation. Its distinctive equal percentage flow characteristics enhance precision in water flow control, and the linear flow characteristic optimally manages steam.

Product Information

Standard Information

• Model: V5011N1008
• Type: Two-way Globe Valve

Technical Specifications

• Body Material: Bronze
• Connection Type: NPT
• Max Pressure: 250 psi WOG, 15 psi WSP
• Temperature Range: 36 to 248 degrees Fahrenheit
• Flow Capacity: 0.73 Cv
• Stem Travel: 3/4 inch
• Bonnet Size: 1-3/8 inch
