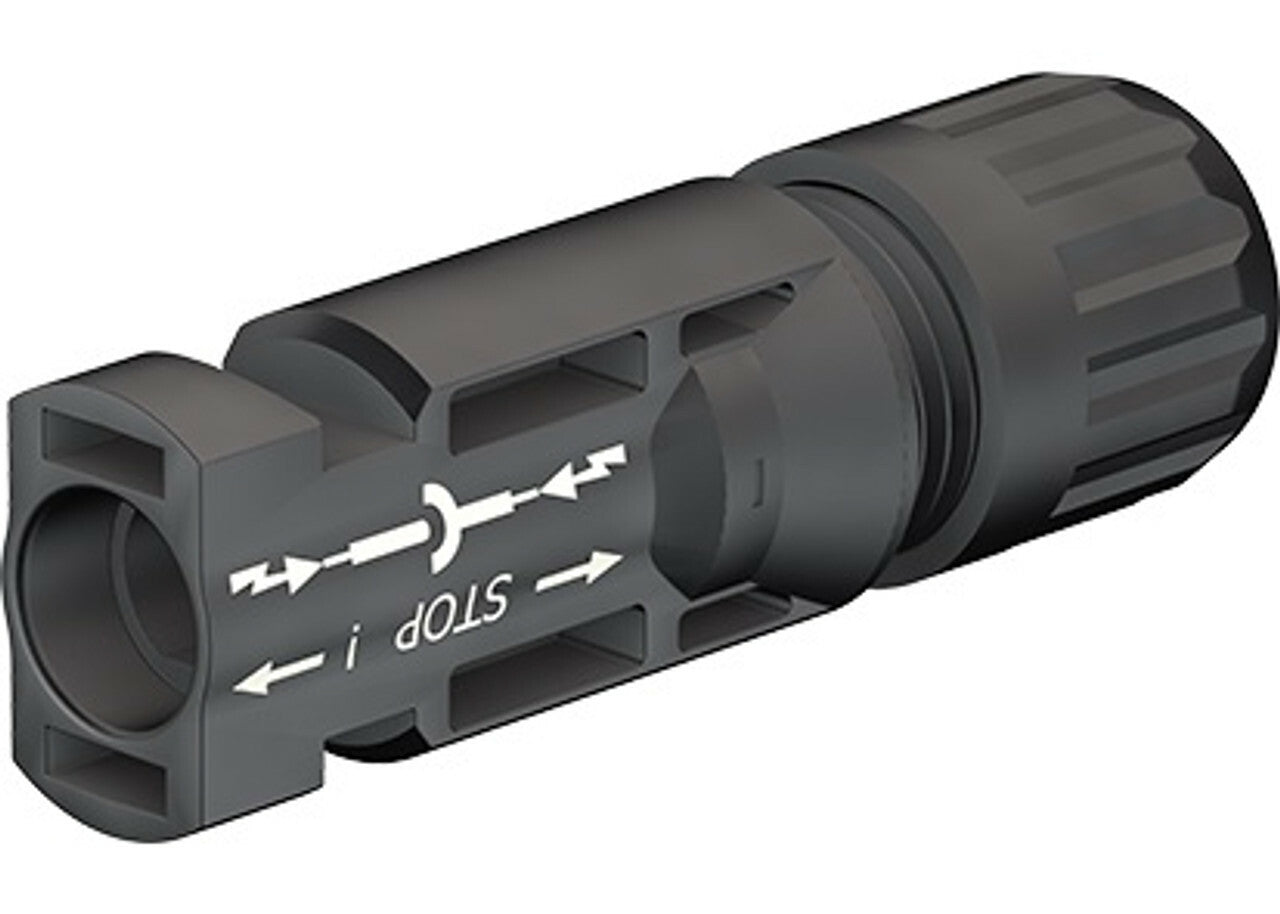

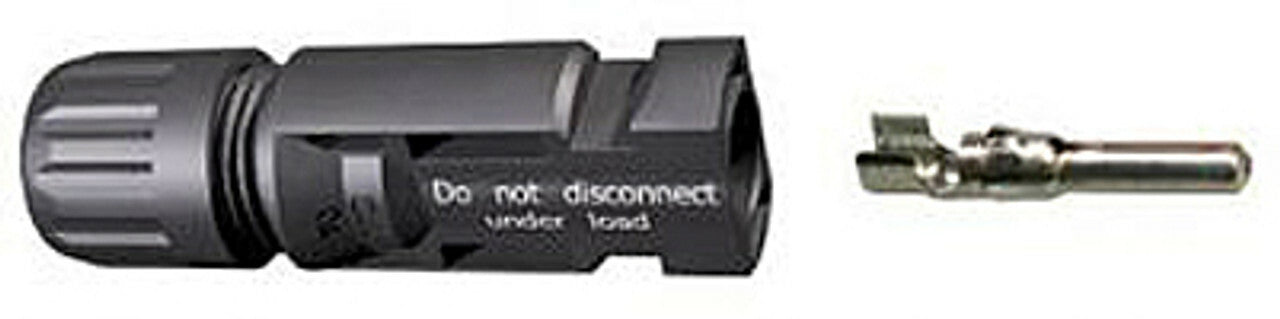

Staubli 32.0015P0001-UR PV-KST4/6I-UR 12/10 AWG Male MC4 Leaf Crimp Connector

Product Description

The Staubli 32.0015P0001-UR is a Male MC4 Leaf Crimp Connector designed for solar applications. This connector is compatible with twelve and ten AWG cables, making it ideal for various solar energy setups.

• Connector Type: Snap-In
• Voltage Rating: 1500 volts
• Amperage Rating: 30/50 amperes

Product Highlights

This MC4 connector provides a secure and reliable electrical connection in solar photovoltaic systems. Its robust design offers protection against environmental elements, ensuring durability and longevity.

Product Information

Standard Information

• Catalog Number: 32.0015P0001-UR
• Manufacturer: Staubli Electrical Connectors

Technical Specifications

• Amperage Rating: 30/50
• Connector Type: Snap-In
• Degree of Protection: IP65, IP68
• Finish: Tin Plated
• Material: Copper
• Item Type: 12/10 AWG MC4 Male Leaf Crimp
• Size: 5 to 6 mm Cable Gland Diameter Range (A)
• Temperature Range: -40 to 85 Degree C
• Voltage Rating: 1500
