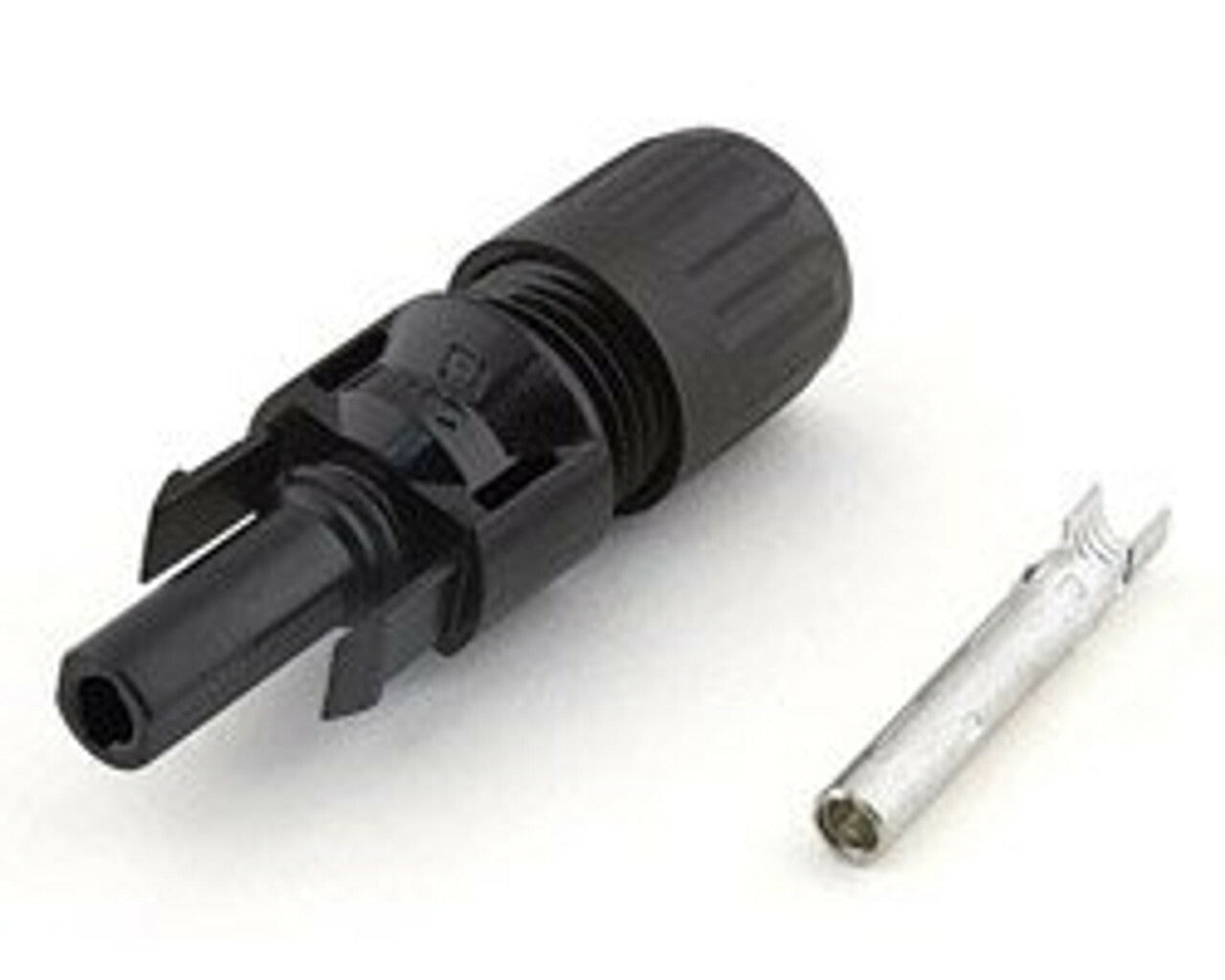

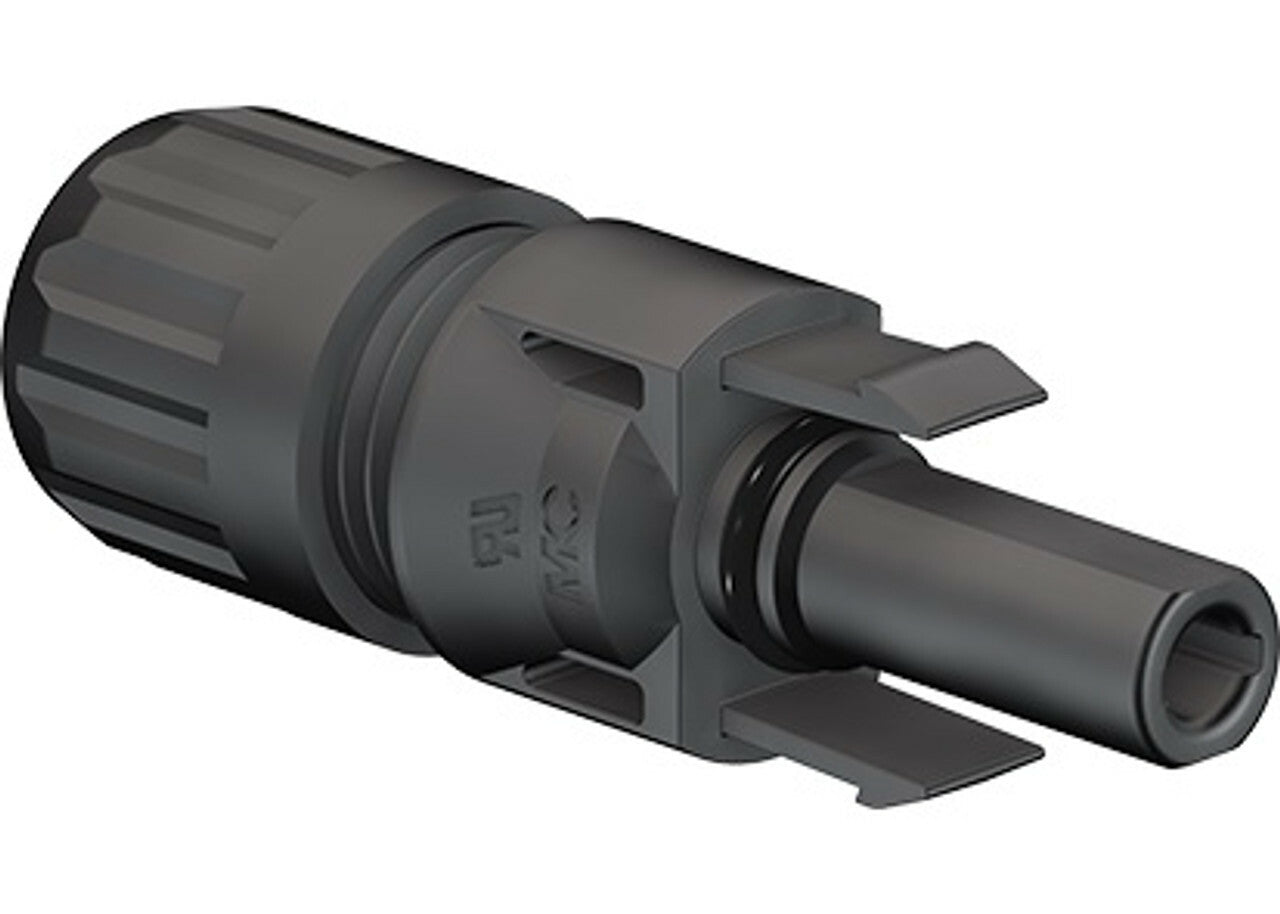

Staubli 32.0014P0001-UR PV-KBT4/6I-UR 12/10 AWG Female MC4 Leaf Crimp Connector

Product Description

The Staubli 32.0014P0001-UR is a specialized connector designed for solar applications. This female MC4 leaf crimp connector accommodates twelve to ten AWG wire sizes. It provides a reliable electrical connection for solar panels and systems.

• Compatible with several cable sizes
• Features snap-in connector type
• Rated for high current and voltage applications

Product Highlights

This product is ideal for connecting solar modules in both residential and commercial solar energy systems. Its design ensures durability and protection in outdoor environments.

Product Information

Standard Information

• Brand: Staubli
• Manufacturer: Staubli Electrical Connectors

Technical Specifications

• Catalog Number: 32.0014P0001-UR
• Connector Type: Snap-In
• Amperage Rating: 30/50
• Voltage Rating: 1500
• Degree of Protection: IP65, IP68
• Material: Copper
• Finish: Tin Plated
• Temperature Range: -40 to 85 Degree C
• Item Type: 12/10 AWG MC4 Female Leaf Crimp
• Size: 5 to 6 mm Cable Gland Diameter Range (A)
