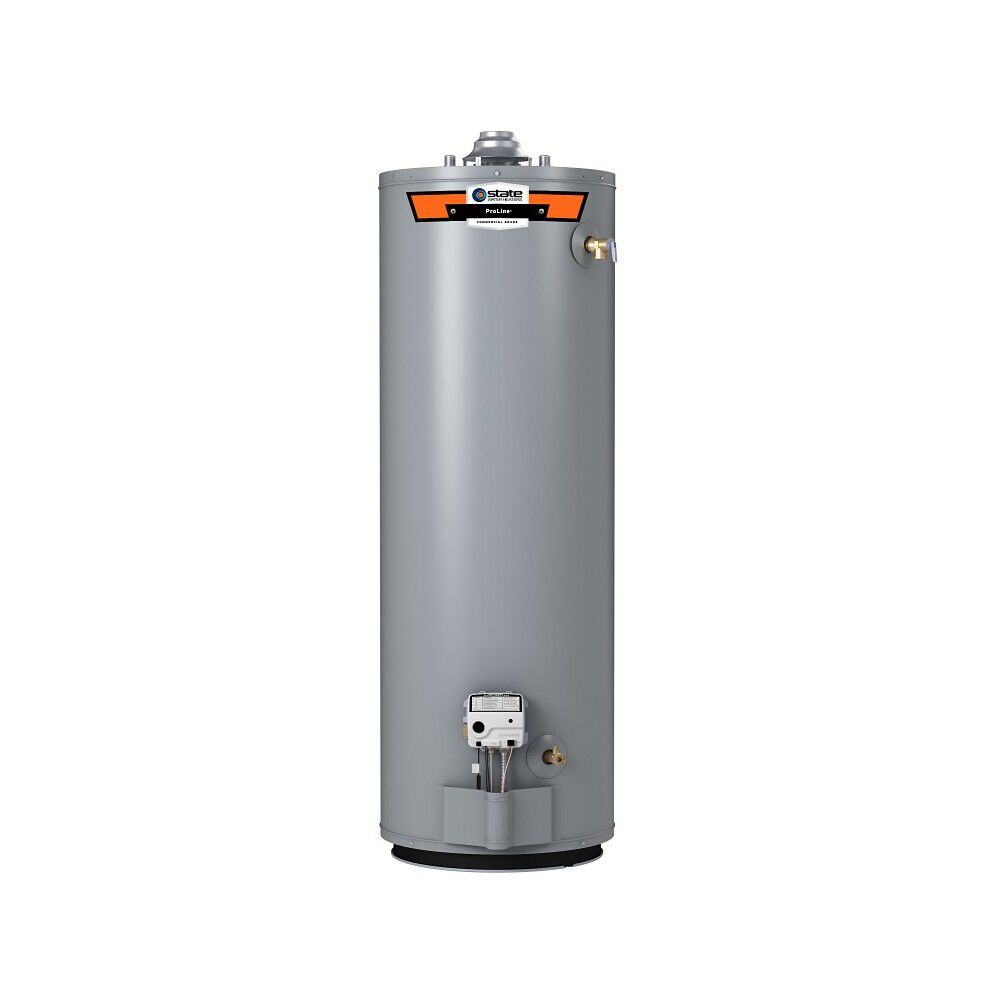

State Water Heaters GSX 50 BRT 400 ProLine® 50-Gallon Natural Gas Water Heater

Product Description

The ProLine® GSX-50-BRT 50-Gallon Atmospheric Vent Tall Natural Gas Water Heater is designed to deliver an economical performance that can lower your energy bills and provide long-lasting value. Featuring a 50-gallon tank and a 40,000 BTU gas burner, the GSX-50-BRT Atmospheric Vent delivers a first hour rating of 81 gallons and a recovery rate of 41 gallons per hour. It carries a 10-year limited tank warranty and meets Low NOx emission requirements.

• Meets Your Hot Water Demands—Delivers an 81-gallon first hour rating
• Energy Efficient—40,000 BTU input atmospheric vent design delivers up to 0.62 Uniform Energy Factor
• No Power Required For Vent—Standard atmospheric vent installation with 3" or 4" B-vent, no power required

Product Highlights

This water heater features environmentally-friendly insulation, factory-installed heat trap nipples, a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and a self-cleaning dip tube.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GSX 50 BRT 400
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 48 Gallons
• UEF: 0.62
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 88
• ASME Certified: No
• Blanket Included: No
• Fuel Source: NATURAL
• Height to T&P: 50.50
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 57"
• Diameter: 21"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 12.5"
• Applicable Standard: ANSI Z21.10.1/CSA 4.1, ASHRAE/IES 90.1, UBC, CEC, HUD, EPCA
• Burner Type: Green Choice Low NOx
• Connection Location: Top
• Draft Hood Outlet/Vent Size: 3 Inch or 4 Inch
• Drain Valve Details: Solid Brass, Tamper Resistant, Enhanced Flow, Ball Type
• GPH Recovery: 41 GPH at 90 Deg F
• Gas Connection: 1/2 Inch
• Gas Type: Natural
• Inclusions/Features: Intelligent Control Logic, LED Status Indicator, Self-Cleaning Dip Tube, Coregard Anode Rod, Heat Trap Nipple, High Uniform Energy Factor
• Inlet/Outlet Connection: 3/4 Inch Top
• Input Supply Rating: 40000 BTU/Hour
• Insulation Details: Non-CFC Foam
• Item: High Efficiency Natural Gas Water Heater
• Relief Valve Details: CSA/ASME T and P Relief Valve
• Tank Capacity: 50 Gallon
• Tank Dimensions: 21 Inch Diameter x 57-1/4 Inch Height
• Tank Height Including Draft Hood: 60-3/4 Inch
• Tank Material: Blue Diamond Glass Coated
• Venting Type: Standard, Atmospheric
• Tankless: No
• Building Type: Residential
• Water Heater Height (inches): 57.25
• Diameter/Width (inches): 21
• Water Inlet Size: 3/4 Male
• Gas Connection (inches): 1/2
• Vent Size (inches): 3, 4
• Height Including Draft Hood (inches): 60.75
• Hot Water Outlet Size: 3/4 Male
• Energy Factor: .60
• Approximate Weight (pounds): 148
