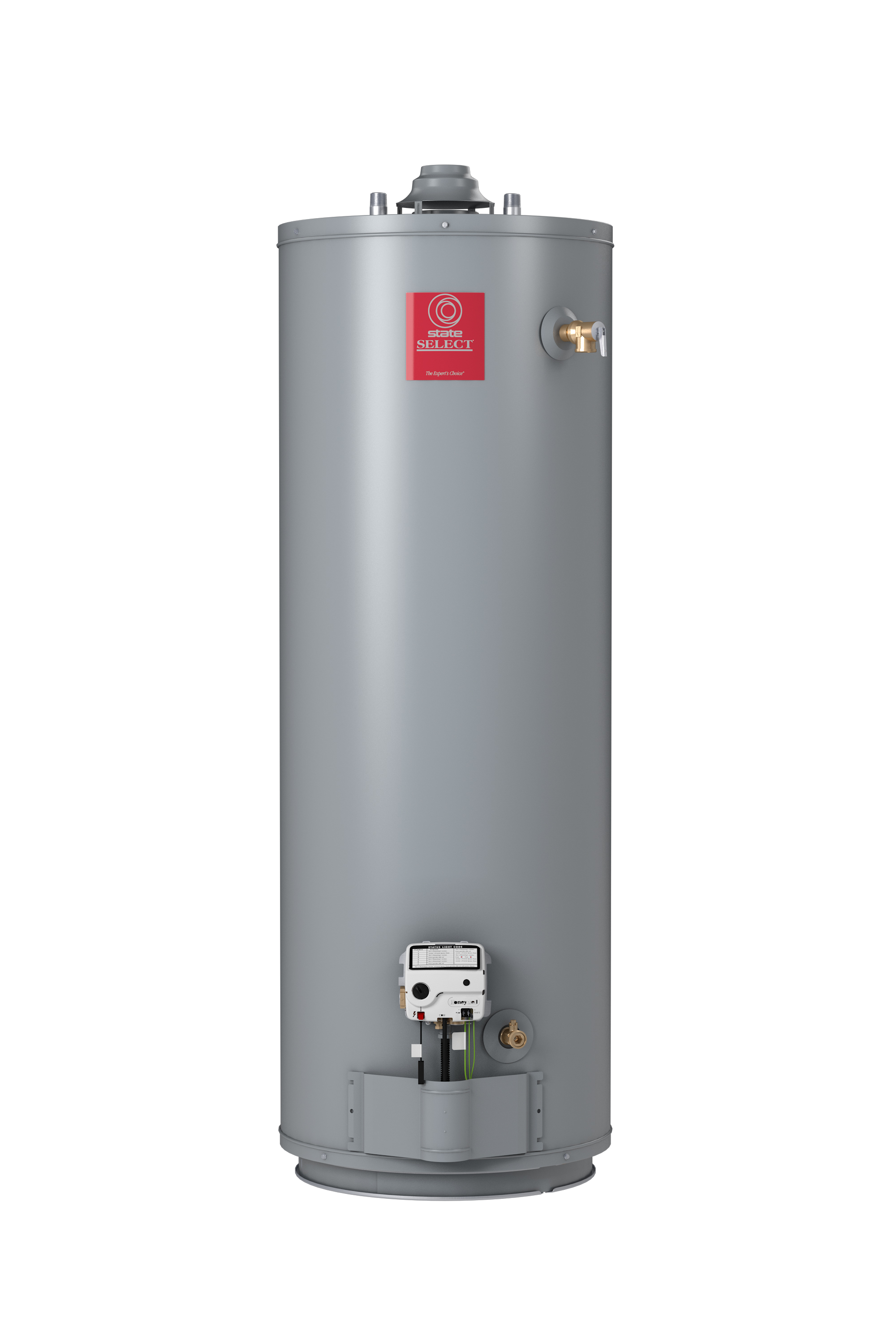

State Water Heaters GSX 40 BCS 400 Select® 40-Gallon Gas Water Heater

Product Description

The STATE WATER HEATERS GSX 40 BCS 400 is a Select® 40-Gallon Gas Water Heater. Designed for economical performance and long-lasting value, it features a 40-gallon tank and a 40,000 BTU natural gas burner. This atmospheric vent water heater has a first-hour rating of 67 gallons and meets Low NOx emission requirements.

• Internal microprocessor enhances operating parameters and provides faster heating response.
• Thermopile generates power for the electronic gas control without needing an external power source.
• Self-cleaning PEX dip tube reduces lime and sediment buildup.

Product Highlights

This gas water heater offers precise sensing, faster heating, and reduced NOx emissions for efficient and reliable residential use.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GSX 40 BCS 400
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 40 Gallons
• Rated Storage Volume: 38.2 Gallons
• UEF: 0.58
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 67 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 41.25
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 47.75"
• Diameter: 22"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 12.5"
• Fuel Type: Natural Gas
• Tankless: No
• Tank Size (Gallons): 40
• Building Type: Residential
• Water Heater Height (inches): 48
• Diameter/Width (inches): 22
• Water Inlet Size: 3/4 Male
• Gas Connection (inches): 1/2
• Vent Size (inches): 3, 4
• Height Including Draft Hood (inches): 51.5
• Hot Water Outlet Size: 3/4 Male
• Energy Factor: .62
• Approximate Weight (pounds): 135
