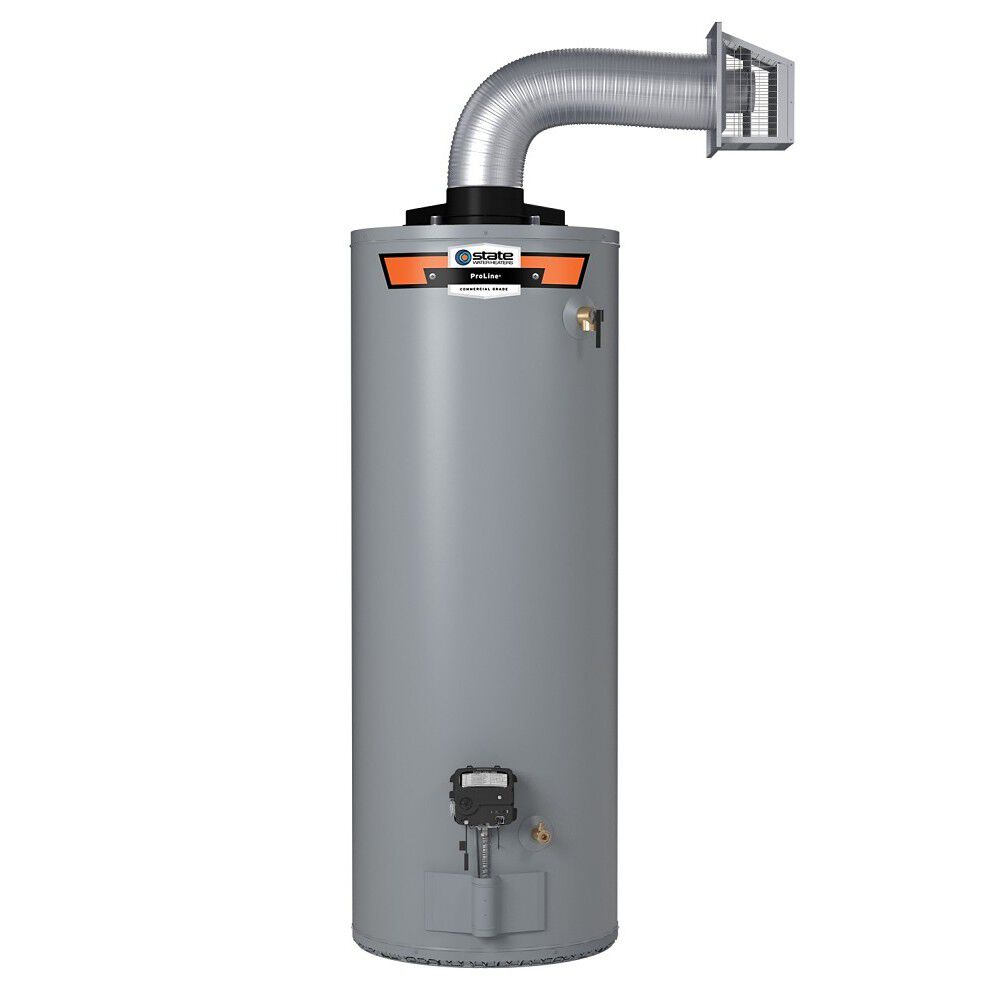

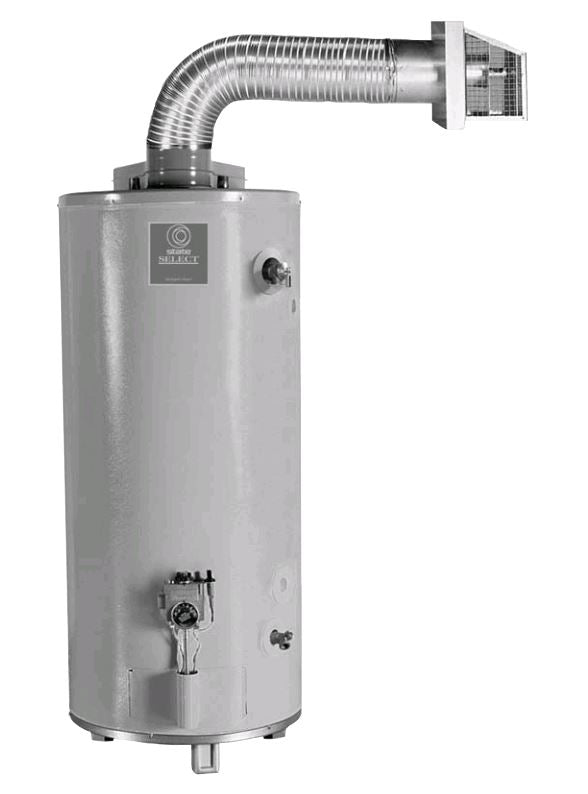

State Water Heaters GS6-50-YRDS-L ProLine Low NOx 50-Gallon

Product Description

The STATE WATER HEATERS GS6-50-YRDS-L is an FVIR-compliant ProLine Direct Vent 50-Gallon Gas Water Heater that draws air from outside, preventing indoor ventilation issues. With a 50-gallon tank and 47,000 BTU gas burner, it delivers an 83-gallon first hour rating. The Green Choice burner reduces NOx emissions, and the stainless steel CoreGard anode rod and Blue Diamond glass lining enhance tank protection.

• Delivers an 83-gallon first hour rating
• 47,000 BTU input direct vent design delivers up to 0.65 Uniform Energy Factor
• Patented Green Choice Gas Burner design reduces NOx emissions by up to 33%

Product Highlights

This water heater features a push-button piezo ignitor, DynaClean automatic cleaning system, and a commercial-grade brass drain valve.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GS6-50-YRDS-L
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 48 Gallons
• UEF: 0.65
• Maximum BTUs: 47,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• Emissions: Low NOx
• First Hour Rating: 82 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 5.00
• Fuel Source: NATURAL
• Height to T&P: 53.25
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: Yes
• Type: Water Heater
• Vent Type: Direct Vent
• Height to Gas Valve: 14.25"
• Fuel Type: Natural Gas
• Tankless: No
• Tank Size (Gallons): 50
• Building Type: Residential
• Water Heater Height (inches): 60
• Diameter/Width (inches): 22
• Water Inlet Size: 3/4 Male
• Gas Connection (inches): 1/2
• Height Including Draft Hood (inches): 84
