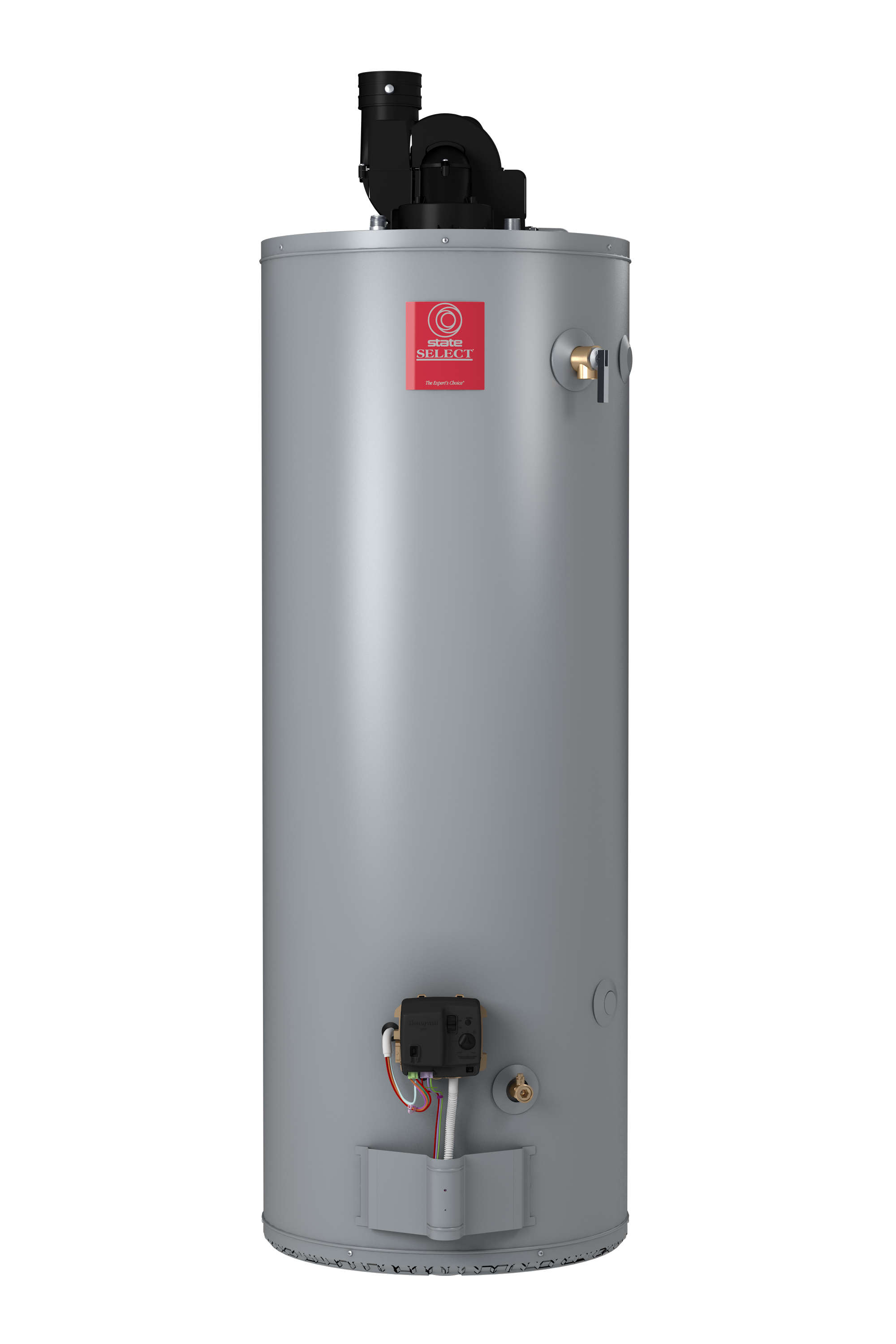

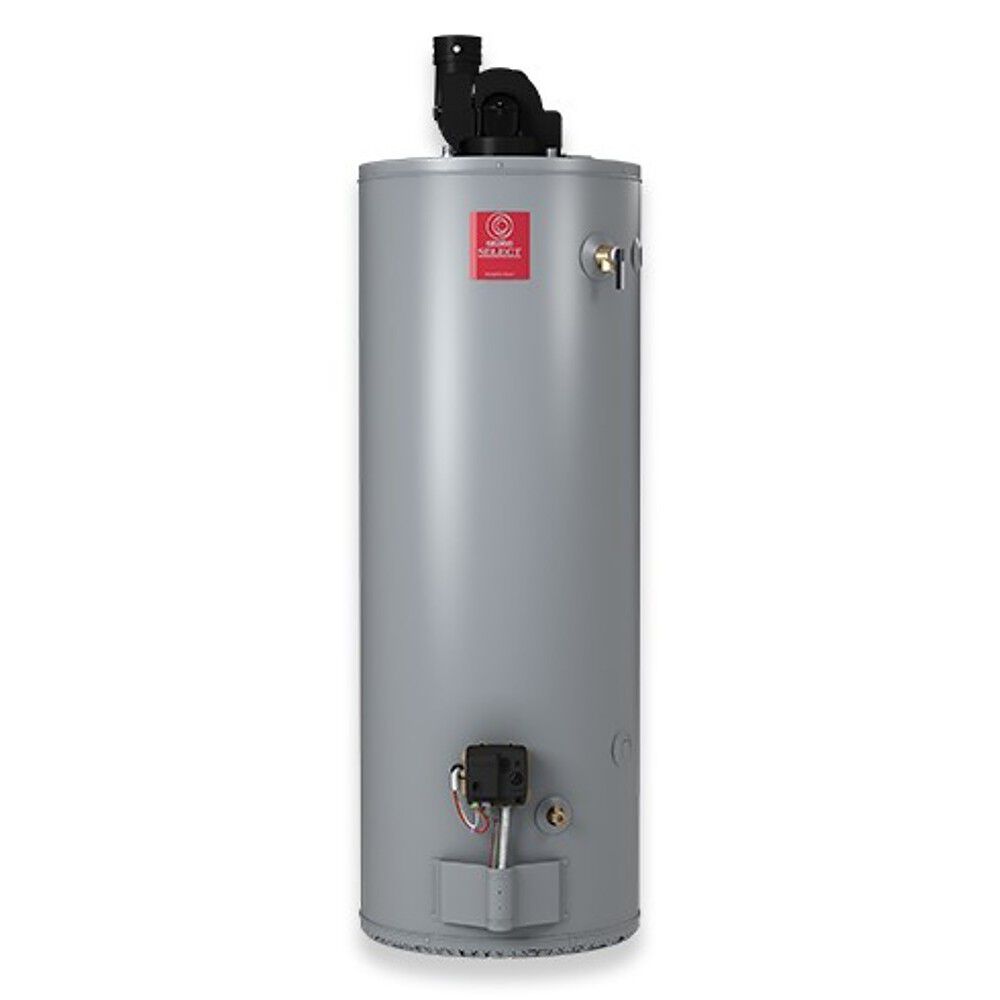

State Water Heaters GS6 50 YBPDT ProLine XE 50-Gallon Power Direct Vent Natural Gas Water Heater

Product Description

The STATE WATER HEATERS GS6 50 YBPDT ProLine XE Power Direct Vent Natural Gas Water Heater features a two-pipe combustion system that draws clean air in from outside. With a 50-gallon tank and a 45,000 BTU gas burner, it delivers a first-hour rating of 81 gallons. It also meets Low NOx emission requirements.

• Delivers an 81-gallon first hour rating
• 45,000 BTU input power direct vent design delivers up to 0.72 Uniform Energy Factor
• Patented Green Choice Gas Burner design reduces NOx emissions by up to 33%

Product Highlights

This power direct vent natural gas water heater provides optimized performance and exceptional reliability for water and space heating.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GS6 50 YBPDT
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 48 Gallons
• UEF: 0.72
• Maximum BTUs: 45,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 1"
• Emissions: Low NOx
• First Hour Rating: 79 Gallons
• ASME Certified: No
• Amperes: 5
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 51.75
• Ignition Type: Electronic Hot Surface Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Voltage: 120
• Type: Water Heater
• Height: 59"
• Diameter: 22"
• Vent Type: Power Direct Vent
• Height to Gas Valve: 12"
• Fuel Type: Natural Gas
• Tankless: No
• Tank Size (Gallons): 50
• Building Type: Residential
• Water Heater Height (inches): 58.75
• Diameter/Width (inches): 22
• Water Inlet Size: 3/4 Male
• Gas Connection (inches): 1/2
• Vent Size (inches): 2 3 4
• Height Including Draft Hood (inches): 67.5
• Hot Water Outlet Size: 3/4 Male
• Energy Factor: .70
• Approximate Weight (pounds): 192
• Recovery Gallons: 41
• Anode: Sacrificial Anode
• Height w/Draft Hood: 67"
• Diameter, Width, Depth: 29"
