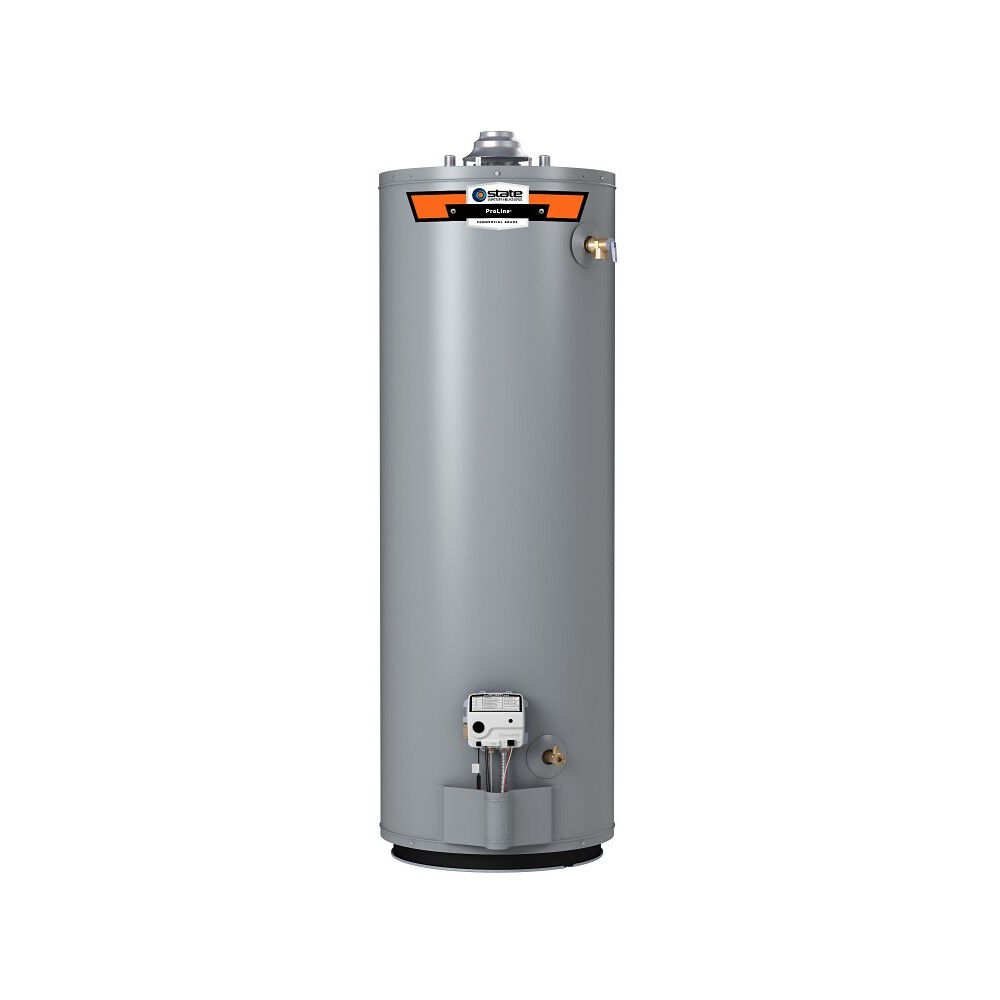

State Water Heaters GS6-50-BRT-400 ProLine 50-Gallon 40,000 BTU

Product Description

The STATE WATER HEATERS GS6-50-BRT-400 ProLine® is designed for economical performance, lowering energy bills and providing lasting value. Featuring a 50-gallon tank and a 40,000 BTU gas burner, it delivers a first hour rating of 81 gallons and a recovery rate of 41 gallons per hour. It meets Low NOx emission requirements.

• Delivers an 81-gallon first hour rating.
• 40,000 BTU input delivers up to 0.62 Uniform Energy Factor.
• Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33%.

Product Highlights

This water heater features a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and a self-cleaning dip tube.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GS6-50-BRT-400
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 48 Gallons
• UEF: 0.62
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 81 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 50.50
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 57"
• Diameter: 21"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 12.5"
• Applicable Standard: ANSI Z21.10.1/CSA 4.1, ASHRAE/IES 90.1, UBC, CEC, HUD, EPCA
• Burner Type: Green Choice Low NOx
• Draft Hood Outlet/Vent Size: 3 Inch or 4 Inch
• Drain Valve Details: Solid Brass, Tamper Resistant, Enhanced Flow, Ball Type
• GPH Recovery: 41 GPH at 90 Deg F
• Gas Connection: 1/2 Inch
• Gas Type: Natural Gas
• Inclusions/Features: Intelligent Control Logic, LED Status Indicator, Self-Cleaning Dip Tube, Coregard Anode Rod, Heat Trap Nipple, High Uniform Energy Factor
• Inlet/Outlet Connection: 3/4 Inch Top
• Input Supply Rating: 40000 BTU/Hour
• Insulation Details: Non-CFC Foam
• Item: Natural Gas Water Heater
• Relief Valve Details: CSA/ASME T and P Relief Valve
• Tank Capacity: 50 Gallon
• Tank Dimensions: 21 Inch Diameter x 57-1/4 Inch Height
• Tank Height Including Draft Hood: 60-3/4 Inch
• Tank Material: Blue Diamond Glass Coated
• Water Heater Height (inches): 57.25
• Diameter/Width (inches): 21
• Water Inlet Size: 3/4 Male
• Vent Size (inches): 3, 4
• Height Including Draft Hood (inches): 60.75
• Weight (pounds): 148
• Tankless: No
• Building Type: Residential
