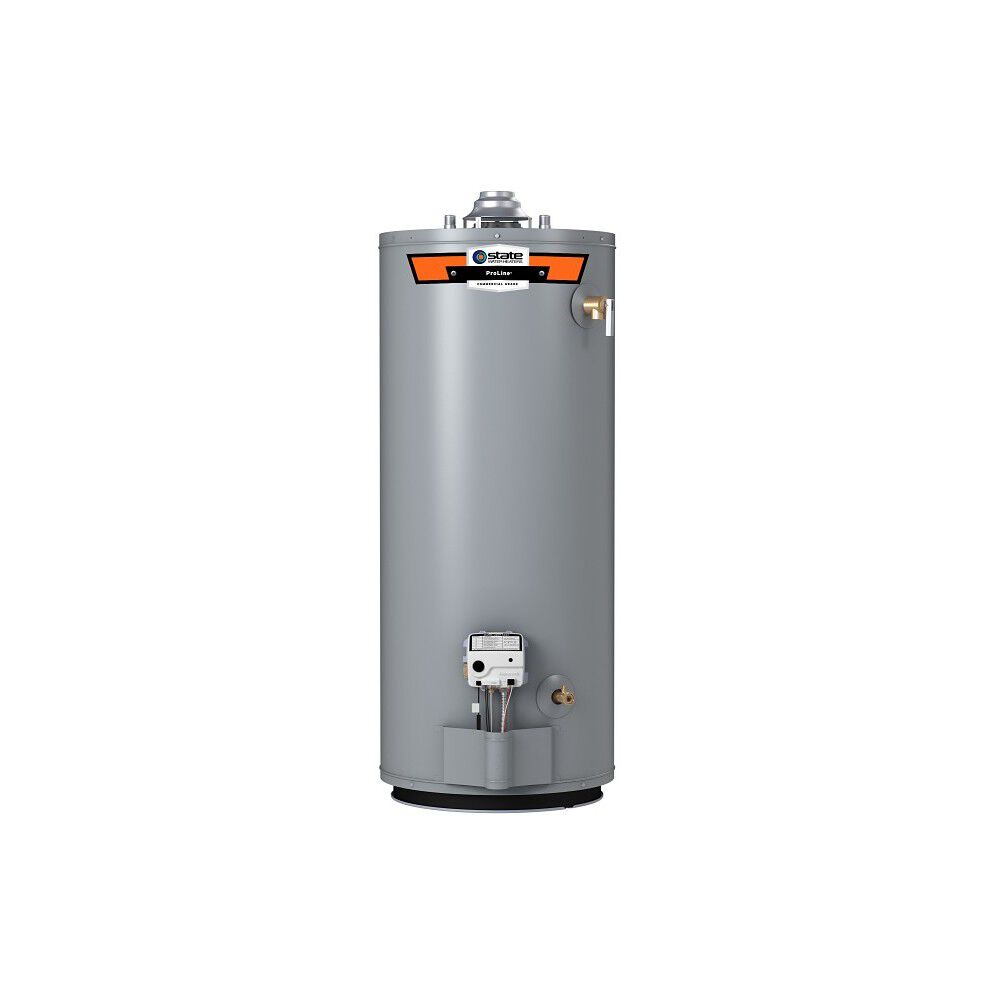

State Water Heaters GS6 50 BCS 400 ProLine Low NOx 50-Gallon Atmospheric Vent Short Natural Gas Water Heater

Product Description

The STATE WATER HEATERS GS6-50-BCS 400 ProLine water heater is designed for economical performance and long-lasting value. Featuring a 50-gallon tank and a 40,000 BTU gas burner, it delivers a first hour rating of 81 gallons and a recovery rate of 43 gallons per hour. It meets Low NOx emission requirements and has a 6-year limited tank warranty.

• Delivers an 81-gallon first hour rating
• 40,000 BTU input delivers up to 0.62 Uniform Energy Factor
• Reduces NOx emissions by up to 33%

Product Highlights

This water heater features a stainless steel CoreGard anode rod, Blue Diamond glass lining, and a self-cleaning dip tube.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GS6 50 BCS 400
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 50 Gallons
• UEF: 0.62
• Maximum BTUs: 40000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 81 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 43.75
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 55.75"
• Diameter: 24"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 14.5"
• Applicable Standard: ANSI Z21.10.1/CSA 4.1, ASHRAE/IES 90.1, UBC, CEC, HUD, EPCA
• Burner Type: Green Choice Low NOx
• Draft Hood Outlet/Vent Size: 3 Inch or 4 Inch
• Drain Valve Details: Solid Brass, Tamper Resistant, Enhanced Flow, Ball Type
• GPH Recovery: 43 GPH at 90 Deg F
• Gas Connection: 1/2 Inch
• Gas Type: Natural
• Inclusions/Features: Intelligent Control Logic, LED Status Indicator, Self-Cleaning Dip Tube, Coregard Anode Rod, Heat Trap Nipple, High Uniform Energy Factor
• Inlet/Outlet Connection: 3/4 Inch Top
• Input Supply Rating: 40000 BTU/Hour
• Insulation Details: Non-CFC Foam
• Item: Natural Gas Water Heater
• Relief Valve Details: CSA/ASME T and P Relief Valve
• Tank Capacity: 50 Gallon
• Tank Dimensions: 24 Inch Diameter x 49-3/4 Inch Height
• Tank Height Including Draft Hood: 53-1/4 Inch
• Tank Material: Blue Diamond Glass Coated
• Venting Type: Standard, Atmospheric
• Recovery Rate: 41 gph
• BTU Rating: 40000 Btu/hr
• Dimensions: 24 in Dia x 49 in H
• Energy Factor: 0.62
• Finish: Glass-Coated
• First Hour Delivery: 81 gal
• Fuel Type: Natural Gas, Propane Gas
• Ignition System: Direct Spark, Pilot
• Lead-Free/Contains Lead: Contains Lead
• Material: Stainless Steel
• Pressure Rating: 150 psi
