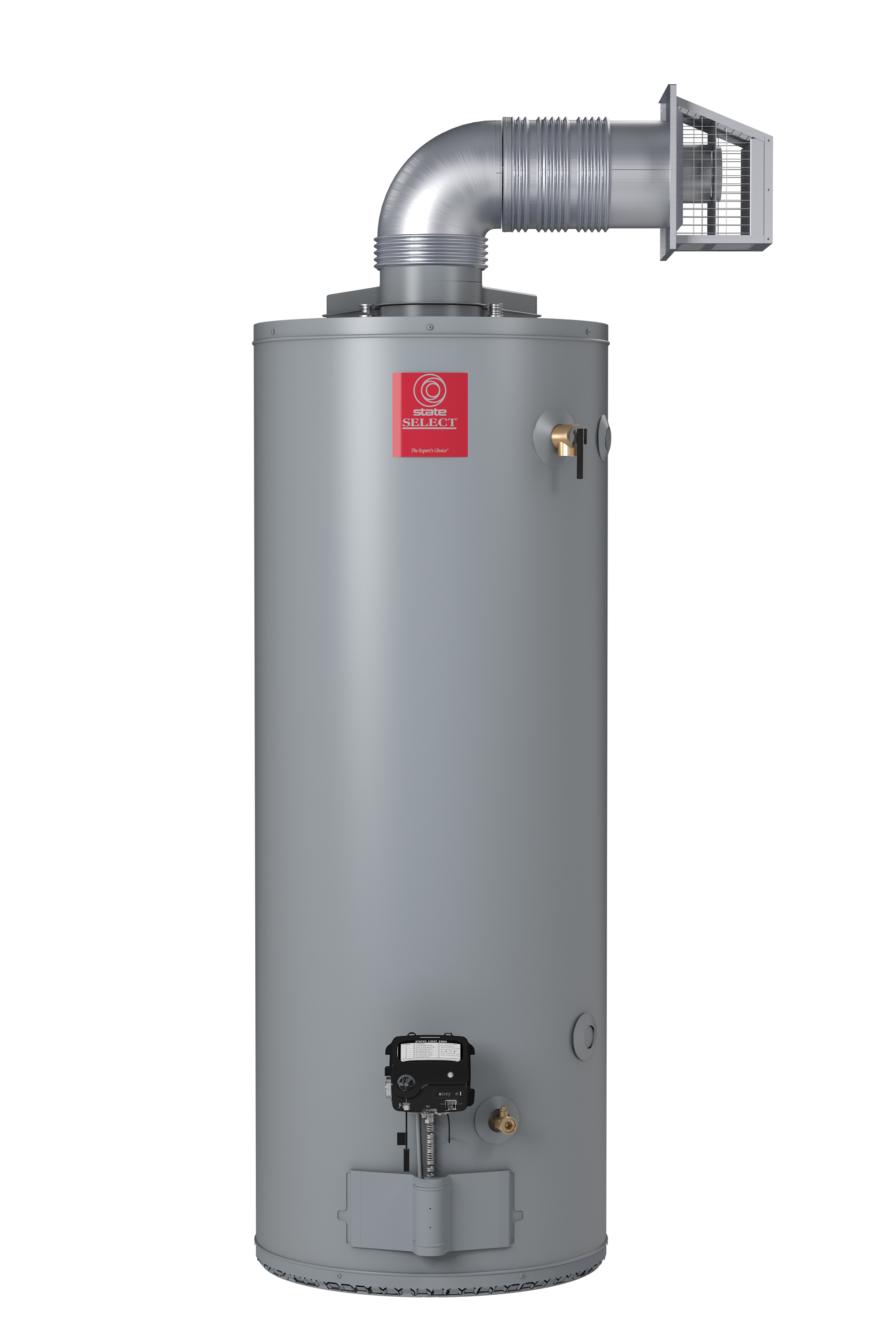

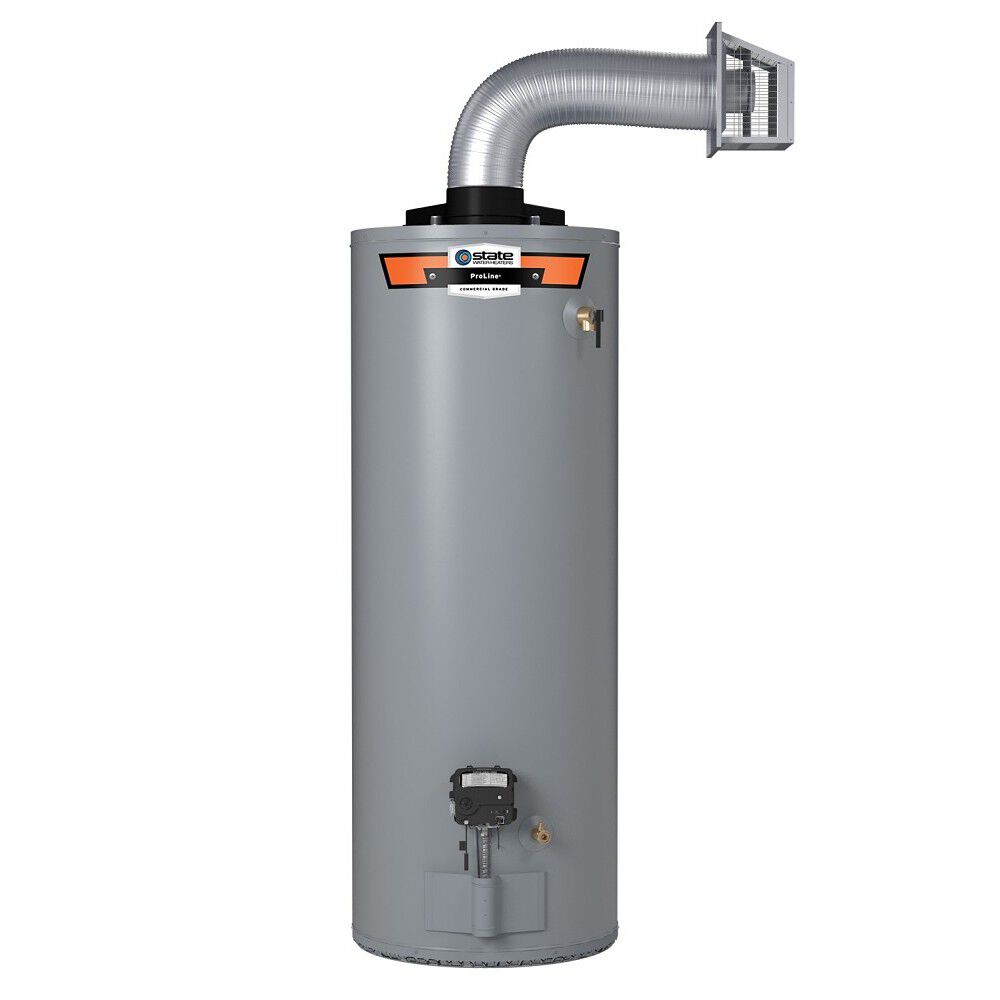

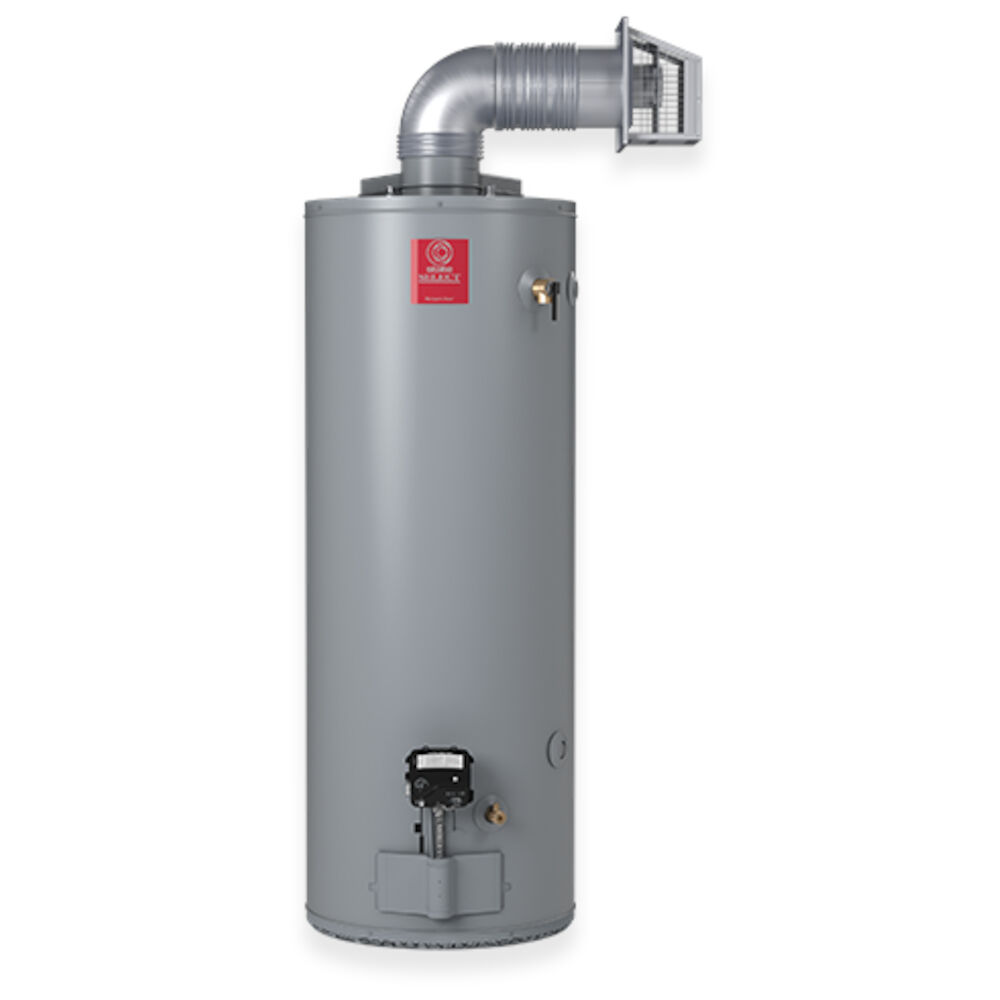

State Water Heaters GS6-40-YBDS ProLine Low NOx 40-Gallon

Product Description

The STATE WATER HEATERS GS6-40-YBDS is an FVIR-compliant ProLine Direct Vent 40-Gallon Gas Water Heater that draws air from outside, preventing issues from insufficient indoor ventilation. It can be vented up to 80 inches without electrical power. This model has a 40-gallon tank and a 38,000 BTU gas burner, delivering a first hour rating of 64 gallons.

• Delivers a 64-gallon first hour rating
• 38,000 BTU input direct vent design delivers up to 0.60 Uniform Energy Factor
• Patented Green Choice Gas Burner design reduces NOx emissions by up to 33%

Product Highlights

This water heater features advanced tank protection, including a stainless steel CoreGard anode rod, Blue Diamond glass lining, and DynaClean automatic sediment-cleaning.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GS6-40-YBDS
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 40 Gallons
• Rated Storage Volume: 39 Gallons
• UEF: 0.6
• Maximum BTUs: 38,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• Emissions: Low NOx
• First Hour Rating: 64 Gallons
• ASME Certified: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 41.75
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Vent Type: Direct Vent
• Tank Size (Gallons): 40
• Building Type: Residential
• Water Heater Height (inches): 49.75
• Diameter/Width (inches): 22
• Water Inlet Size: 3/4 Male
• Gas Connection (inches): 1/2
• Vent Size (inches): 3
• Height Including Draft Hood (inches): 64
• Hot Water Outlet Size: 3/4 Male
• Energy Factor: .60
• Approximate Weight (pounds): 178
