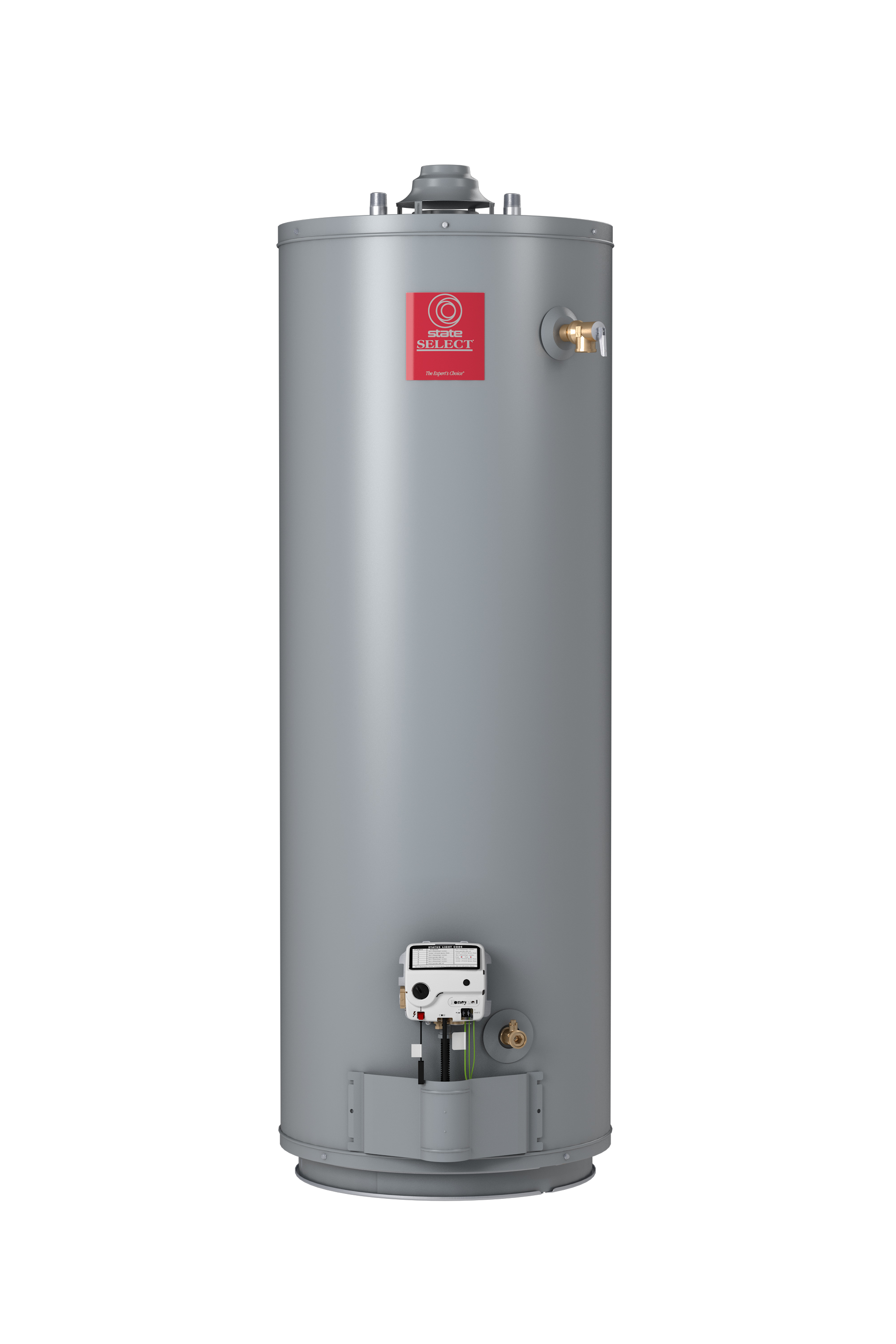

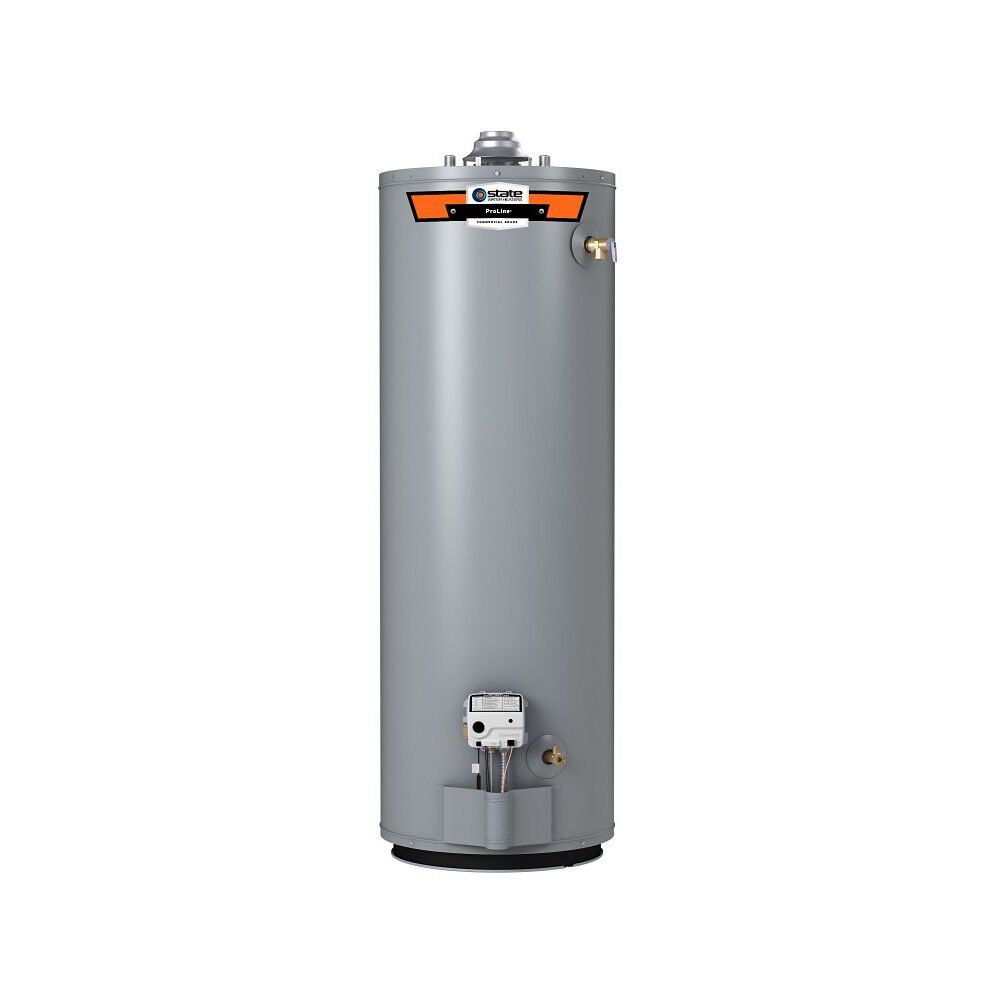

State Water Heaters GS6 40 BCS 40-Gallon Gas Water Heater

Product Description

The STATE WATER HEATERS GS6 40 BCS is a 40-Gallon Gas Water Heater. It features a self-cleaning dip tube that reduces lime and sediment buildup, maximizing hot water output. The push-button piezo ignitor makes lighting the pilot fast and easy. It also has an enhanced-flow brass drain valve for fast and easy draining during maintenance.

• Self-cleaning dip tube reduces lime and sediment buildup
• Push-button piezo ignitor for fast and easy lighting
• Enhanced-flow brass drain valve for easy maintenance

Product Highlights

This gas water heater offers enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GS6 40 BCS 400
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 40 Gallons
• Rated Storage Volume: 38.2 Gallons
• UEF: 0.58
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 67 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 41.25
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 47.75"
• Diameter: 22"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 12.5"
• BTU Input Natural Gas: 40,000
• Recovery 90 0F Rise Gallon Per Hour: 41
• Fuel Type: Natural Gas
• Tankless: No
• Tank Size (Gallons): 40
• Building Type: Residential
• Water Heater Height (inches): 47.75
• Diameter/Width (inches): 22
• Water Inlet Size: 3/4 Male
• Gas Connection (inches): 1/2
• Vent Size (inches): 3 4
• Height Including Draft Hood (inches): 51.5
• Weight (pounds): 134
