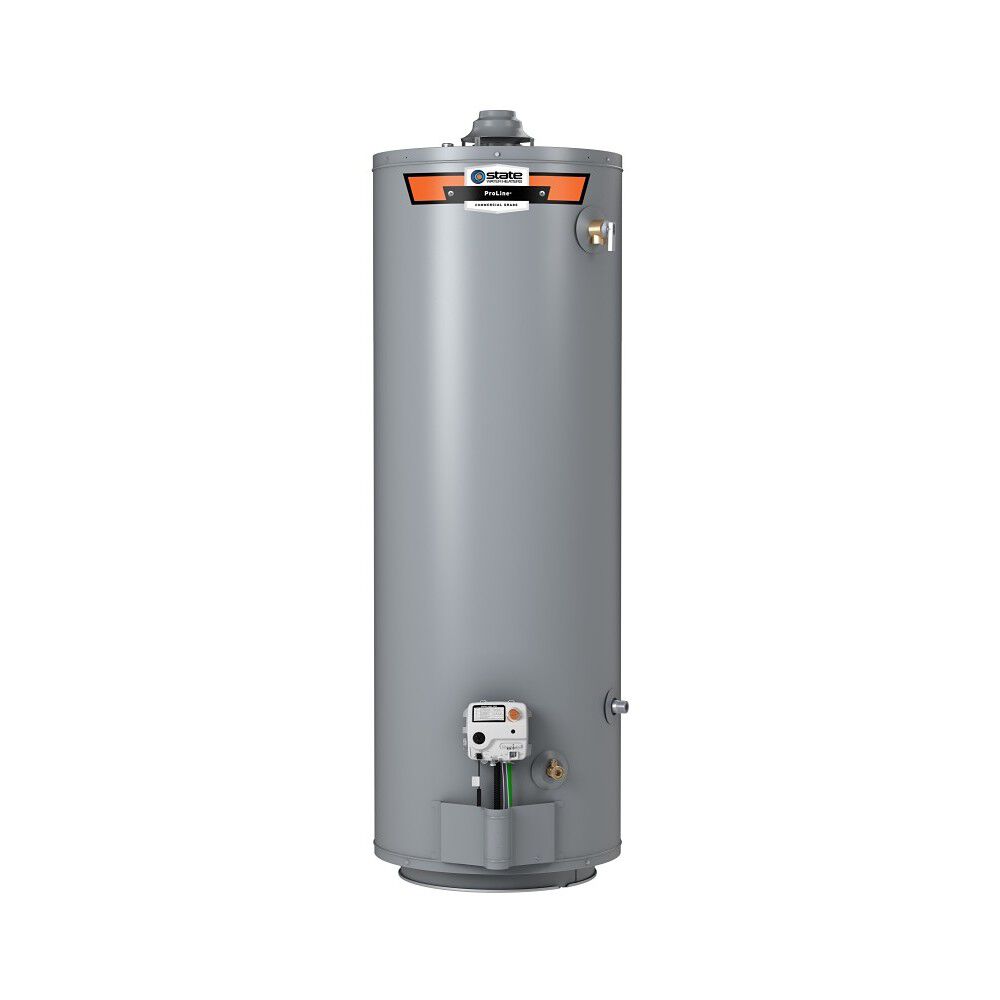

State Water Heaters GS6-30-MHG-400 ProLine Low NOx 30-Gallon

Product Description

The STATE WATER HEATERS GS6-30-MHG-400 ProLine® Low NOx Natural Gas Water Heater features a 30-gallon tank and a 35,500 BTU capacity, delivering a 63-gallon first-hour rating and a 36-gallon per hour recovery rate with a 0.61 Uniform Energy Factor. Compliant with HUD standards, it has a Green Choice® burner design reducing NOx emissions by up to 33%.

• Delivers a 63-gallon first hour rating
• HUD compliant, approved for mobile homes/manufactured housing
• Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33%

Product Highlights

This ProLine® water heater has advanced tank protection, including a stainless steel CoreGard™ anode rod and Blue Diamond® glass lining.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GS6-30-MHG-400
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 30 Gallons
• Rated Storage Volume: 29 Gallons
• UEF: 0.6
• Maximum BTUs: 35,500
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: BOTH
• Water Connection Size: 0.75"
• Emissions: Low NOx
• First Hour Rating: 63 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 52.00
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Mobile Home Compatible: Yes
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 57.75"
• Diameter: 18"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 13.25"
