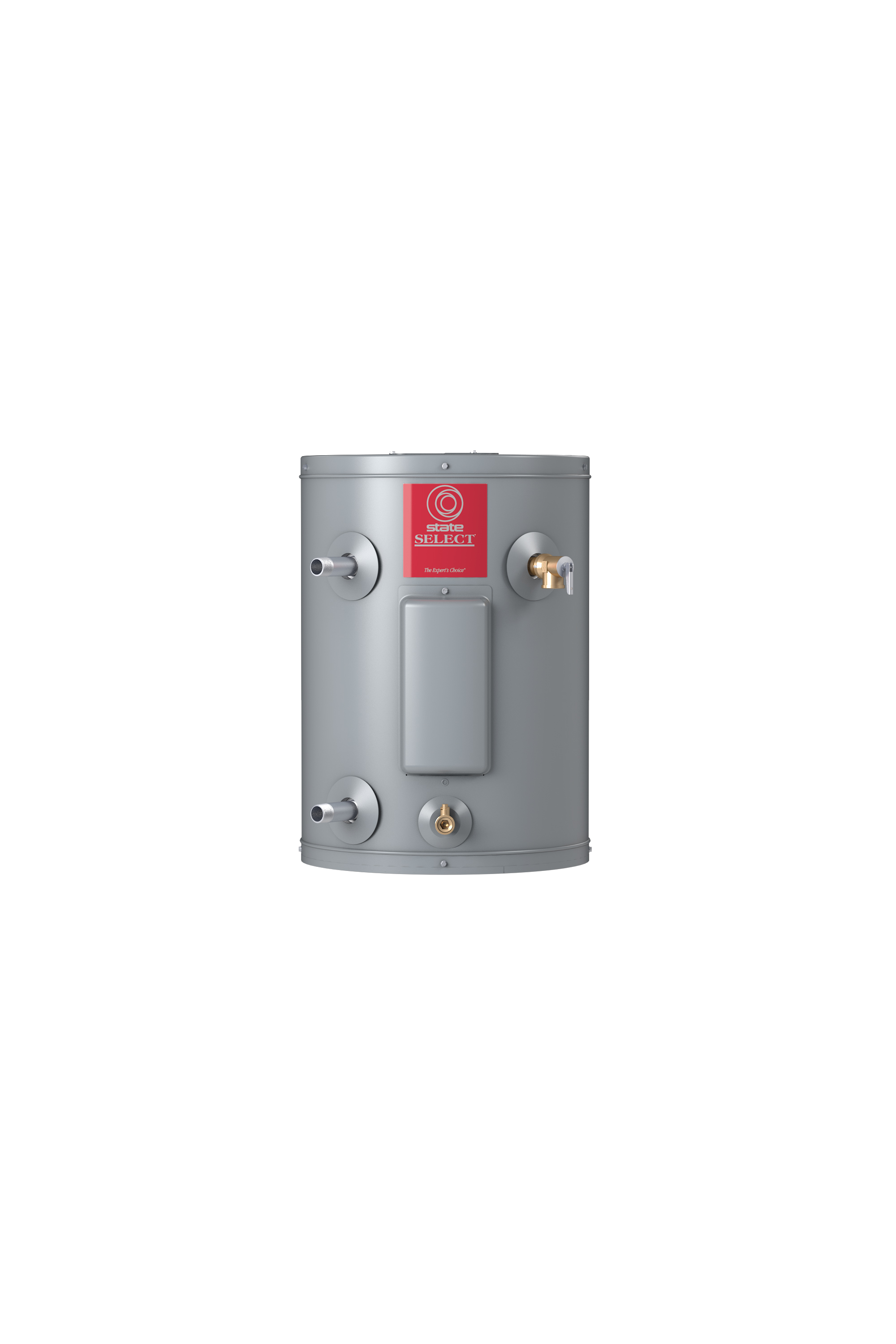

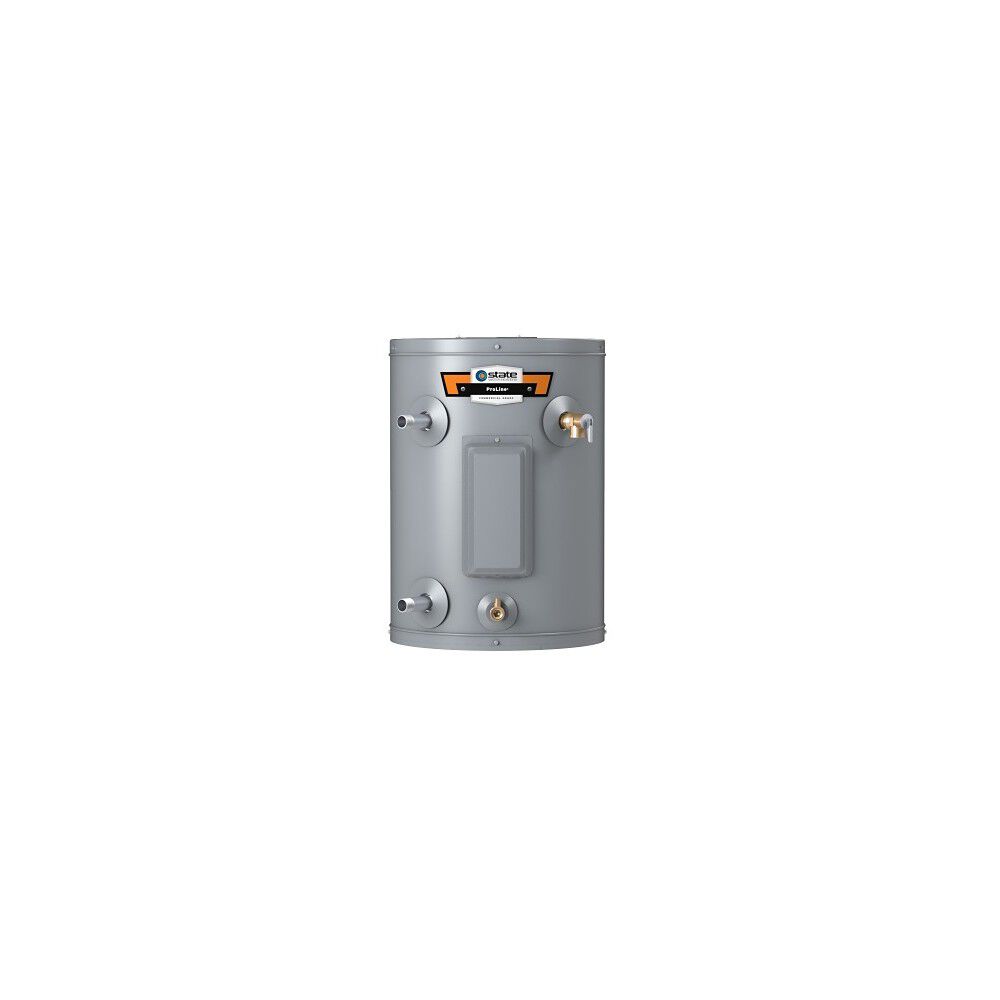

State Water Heaters ES6-20-SOMS-K Proline Specialty Electric Water Heater 2.5kW 19 Gallon

Product Description

The STATE WATER HEATERS ES6-20-SOMS-K ProLine® compact electric water heater is designed for limited spaces, such as under counters and in crawl spaces. With a 19-gallon tank and a 2500-watt element, it delivers efficient hot water. It features a stainless steel CoreGard™ anode rod and Blue Diamond® glass lining to protect against corrosion.

• Durable 2,500-watt commercial-grade heating element for reliable hot water.
• Compact design ideal for installation in tight spaces.
• Blue Diamond® glass tank lining protects against corrosion.

Product Highlights

Ideal for tight spaces, this compact electric water heater provides efficient and reliable hot water with corrosion protection for extended life.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: ES6-20-SOMS-K
• Country of Origin: US

Technical Specifications

• Model: ES6-20-SOMS-K
• Nominal Gallon Capacity: 19 Gallons
• Rated Storage Volume: 17 Gallons
• Power Source: ELECTRIC
• T&P Relief Valve: Yes
• Water Connection Location: Side
• Emissions: Low NOx
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Installation Type: INDOOR
• Max Wattage: 2500
• Number of Elements: 1
• Application: RESIDENTIAL
• Side Loop: No
• Voltage: 120
• Type: Compact
• Diameter: 18"
• SKU: ES620SOMSK
• Upper Element Wattage: 2500
• Minimum Voltage Required: 110
• Recovery Gallons: 11
• First Hour Rating: 72
• Water Connection Size: 3/4"
• Height: 24.75 (in)
• Width: 18.00 (in)
• Depth: 18.00 (in)
• Capacity: 19 gal
• Connection Size: 3/4 in
• Connection Type: NPT
• Element Type: DIP Tube
• Finish: Glass-Coated
• Pressure Rating: 150 psi
• Recovery Rate: 11 gph
• Fuel Type: Electric
• Tankless: No
• Vent Type: None
• Tank Size (Gallons): 19
• Building Type: Residential
• Water Heater Height (inches): 24.75
• Water Inlet Size: 3/4 Male
• Approximate Weight (pounds): 68
