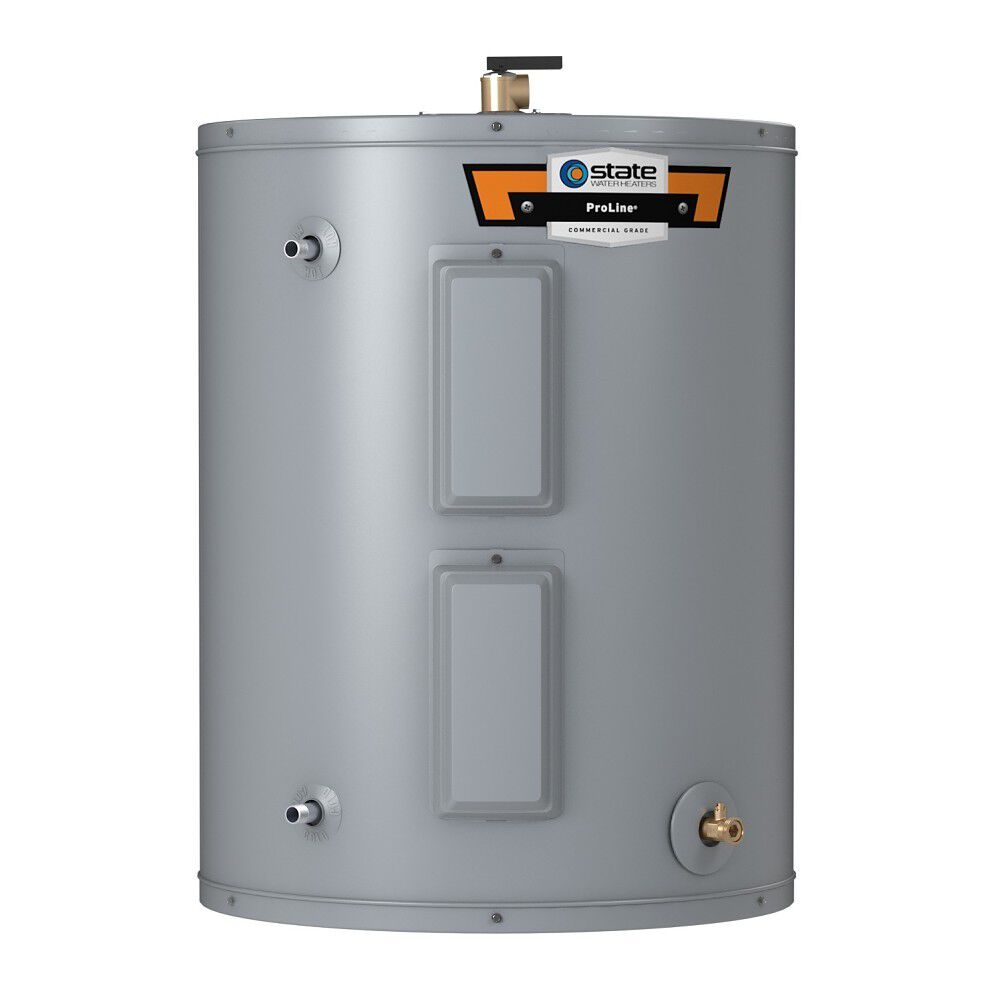

State Water Heaters EN6-50-DOLBS ProLine Lowboy Top Connect 48-Gallon Electric Water Heater

Product Description

The STATE WATER HEATERS EN6-50-DOLBS ProLine® Lowboy Electric Water Heater with top water connections maximizes hot water output and energy savings. It has a 48-gallon tank and dual 4,500-watt elements, delivering a first hour rating of 60 gallons at a 0.93 Uniform Energy Factor rating. It also features commercial-grade tank protection.

• Delivers 60 gallons of hot water in the first hour
• Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
• Patented Blue Diamond® glass tank lining protects against corrosion

Product Highlights

This water heater is designed for maximizing hot water output and energy savings, suitable for tight spaces with low height clearance.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: EN6-50-DOLBS
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 48 Gallons
• Rated Storage Volume: 44 Gallons
• UEF: 0.93
• Power Source: ELECTRIC
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 60 Gallons
• ASME Certified: No
• Blanket Included: Yes
• Height to T&P: 25.00
• Installation Type: INDOOR
• Max Wattage: 4,500
• Number of Elements: 2
• Application: RESIDENTIAL
• Side Loop: No
• Voltage: 240
• Type: Water Heater
• Height: 34"
• Diameter: 26.5"
• Width: 26.5"
• AFUE Rating: 0.93 %
• Additional Information: Lowboy Top Connect-Type
• Capacity: 48 gal
• Connection Type: Male
• Dimensions: 26-1/2 in Dia x 34 in H
• Element Material: Stainless Steel
• Element Type: DIP Tube
• Element Wattage: 6000 W
• Energy Factor: 0.93
• Finish: Glass-Coated
• First Hour Delivery: 60 gal
• Material: Stainless Steel
• Power Rating: 6000 W
• Pressure Rating: 150 psi
• Recovery Rate: 21 gph
• Applicable Standard: ASHRAE/IES 90.1, CEC, HUD, EPCA, UBC, UL 174, CSA
• Drain Valve Details: Solid Brass, Tamper Resistant, Enhanced Flow, Ball Type
• Energy Saver Conformance: No
• GPH Recovery: 21 GPH at 90 Deg F
• Gas Type: Electric
• Inclusions/Features: Self-Cleaning Dip Tube, Coregard Stainless Steel Anode Rod, Enhanced Heating Element, High Uniform Energy Factor, Insulation Blanket
• Inlet/Outlet Connection: 3/4 Inch Male Threaded
• Input Supply Rating: 240 Volt
• Insulation Details: Non-CFC Foam
• Item: Electric Lowboy Water Heater
• Power Rating of Elements: 4500 Watt (Standard), 6000 Watt (Maximum)
• Relief Valve Details: CSA/ASME T and P Relief Valve
• Tank Capacity: 48 Gallon
• Tank Dimensions: 26-1/2 Inch Diameter x 34 Inch Height
• Tank Material: Blue Diamond Glass Coated
• Thermostat Setting: 120 Deg F
