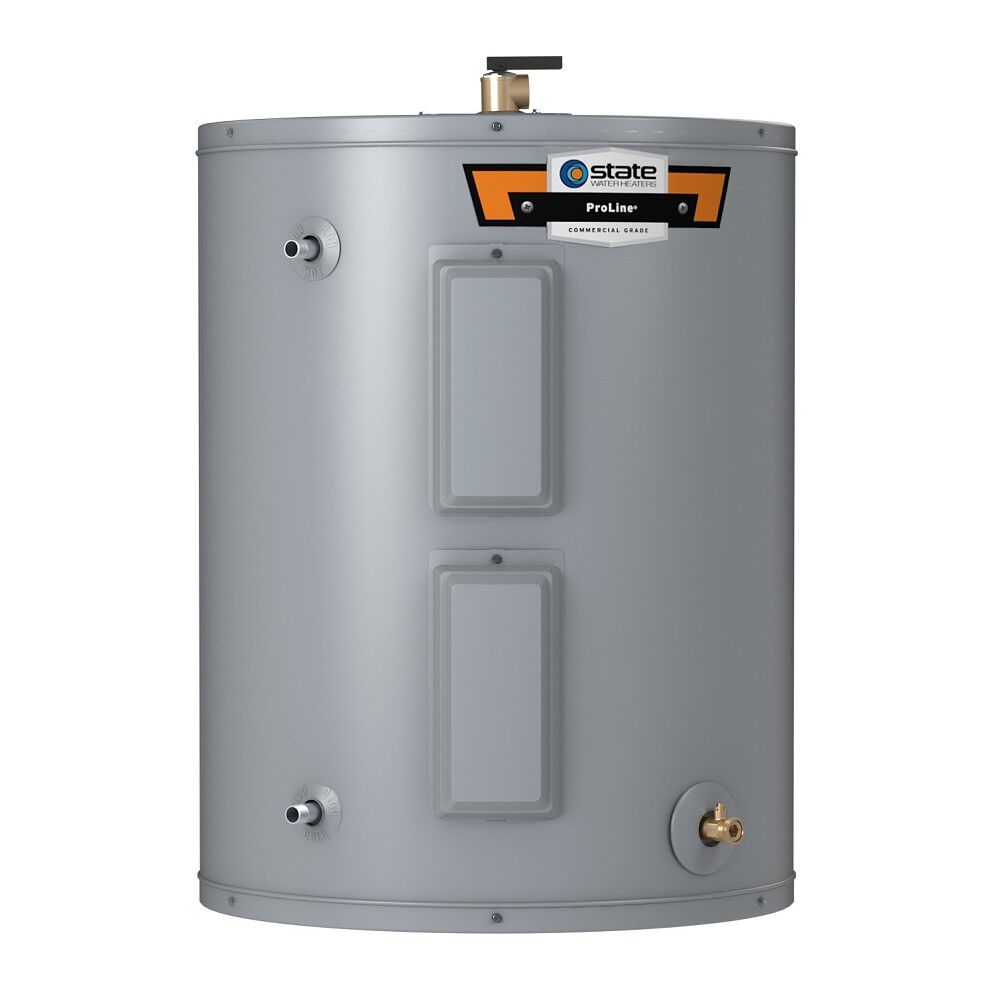

State Water Heaters EN6-30-DOLBS ProLine Specialty Lowboy 28-Gallon

Product Description

The State Water Heaters EN6-30-DOLBS ProLine Lowboy Electric water heater with top water connections maximizes hot water output and energy savings. It incorporates a 28-gallon tank and dual 4,500-watt elements to deliver a first hour rating of 44 gallons at a 0.89 Uniform Energy Factor rating. It features commercial-grade tank protection and a stainless steel CoreGard anode rod.

• Delivers 44 gallons of hot water in the first hour
• Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
• Patented Blue Diamond glass tank lining protects against corrosion

Product Highlights

This ProLine water heater is a reliable choice for maximizing hot water output and energy savings. Its lowboy design is ideal for tight spaces.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: EN6-30-DOLBS
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 28 Gallons
• Rated Storage Volume: 26 Gallons
• UEF: 0.89
• Power Source: ELECTRIC
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 43 Gallons
• ASME Certified: No
• Blanket Included: Yes
• Destination Country: US
• Height to T&P: 21.75
• Installation Type: INDOOR
• Max Wattage: 4,500
• Number of Elements: 2
• Application: RESIDENTIAL
• Side Loop: No
• Voltage: 240
• Type: Water Heater
• Height: 30"
• Diameter: 20"
• Width: 20"
• Applicable Standard: ASHRAE/IES 90.1, CEC, HUD, EPCA, UBC, UL 174, CSA
• Drain Valve Details: Solid Brass, Tamper Resistant, Enhanced Flow, Ball Type
• Energy Saver Conformance: No
• GPH Recovery: 21 GPH at 90 Deg F
• Gas Type: Electric
• Inclusions/Features: Self-Cleaning Dip Tube, Coregard Stainless Steel Anode Rod, Enhanced Heating Element, High Uniform Energy Factor, Insulation Blanket
• Inlet/Outlet Connection: 3/4 Inch Male Threaded
• Input Supply Rating: 240 Volt
• Insulation Details: Non-CFC Foam
• Item: Electric Lowboy Water Heater
• Power Rating of Elements: 4500 Watt (Standard), 6000 Watt (Maximum)
• Relief Valve Details: CSA/ASME T and P Relief Valve
• Tank Capacity: 28 Gallon
• Tank Dimensions: 20 Inch Diameter x 30 Inch Height
• Tank Material: Blue Diamond Glass Coated
• Thermostat Setting: 120 Deg F
• Fuel Type: Electric
• Tankless: No
• Vent Type: None
• Tank Size (Gallons): 28
• Building Type: Residential
• Water Heater Height (inches): 30
• Diameter/Width (inches): 22
• Water Inlet Size: 3/4 Male
• Element Size (watts): 4500
• Upper Element Wattage: 4500
• Lower Element Wattage: 4500
• Anode: Coregard Sacrificial Anode
• Self Cleaning: Yes
• Recovery Gallons: 21
• Nominal Capacity: 28
• Depth: 22.00 (in)
