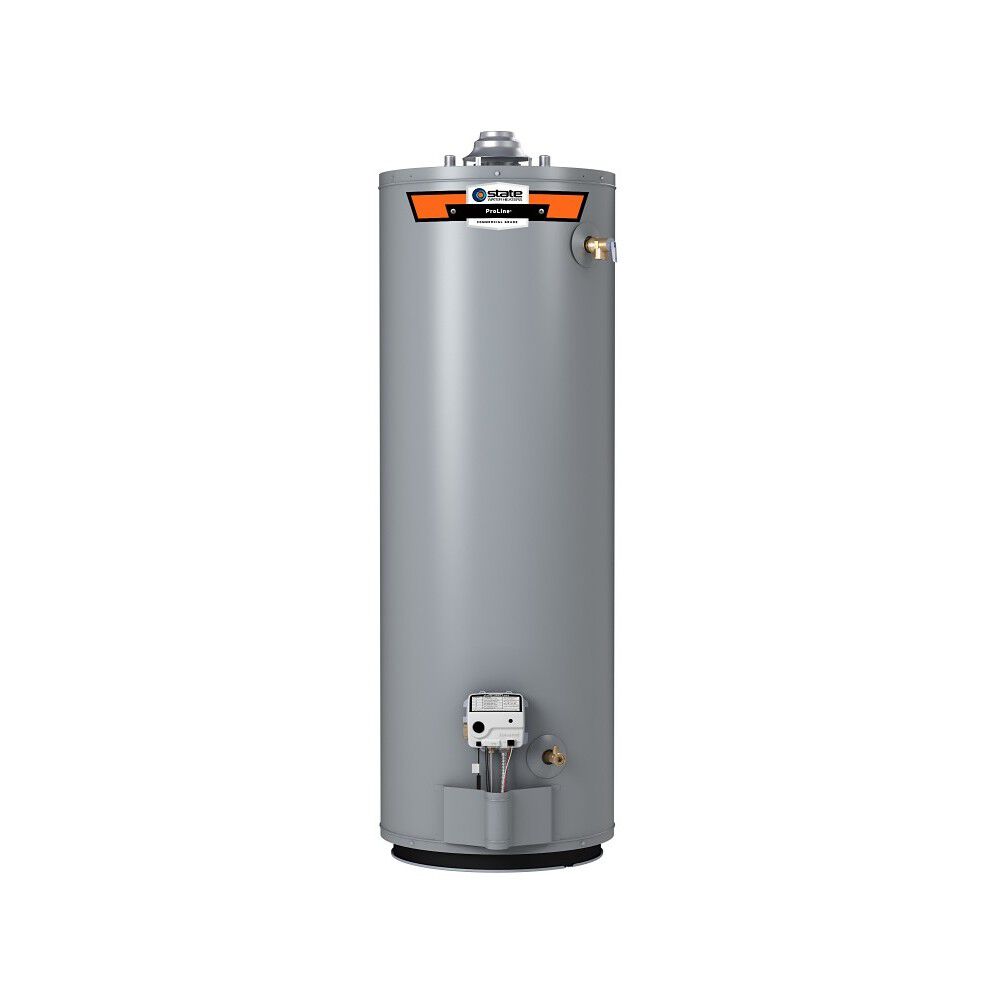

State Water Heater GS650BRT ProLine Low NOx 50-Gallon Atmospheric Vent Tall Natural Gas Water Heater

Product Description

The State Water Heater GS650BRT ProLine® Low NOx 50-Gallon Atmospheric Vent Tall Natural Gas Water Heater delivers economical performance, potentially lowering energy bills. Featuring a 50-gallon tank and a 40,000 BTU gas burner, it offers an 81-gallon first hour rating and a 41-gallon per hour recovery rate. It meets Low NOx emission requirements.

• Delivers an 81-gallon first hour rating
• 40,000 BTU input delivers up to 0.62 Uniform Energy Factor
• Blue Diamond® glass tank lining protects against corrosion

Product Highlights

This water heater features a stainless steel CoreGard™ anode rod, self-cleaning dip tube, and environmentally-friendly insulation for maximum energy savings.

Product Information

Standard Information

• Brand: State Water Heater
• Manufacturer Part Number: GS650BRT
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 48 Gallons
• UEF: 0.62
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 81 Gallons
• ASME Certified: No
• Blanket Included: No
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 50.50
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 57"
• Diameter: 21"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 12.5"
