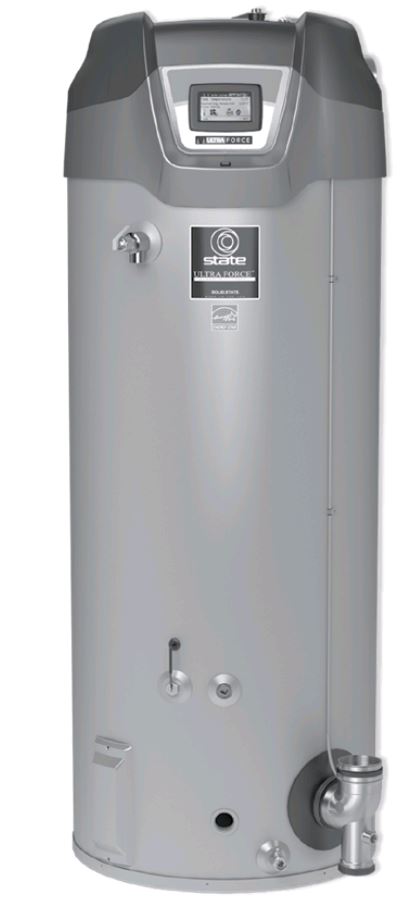

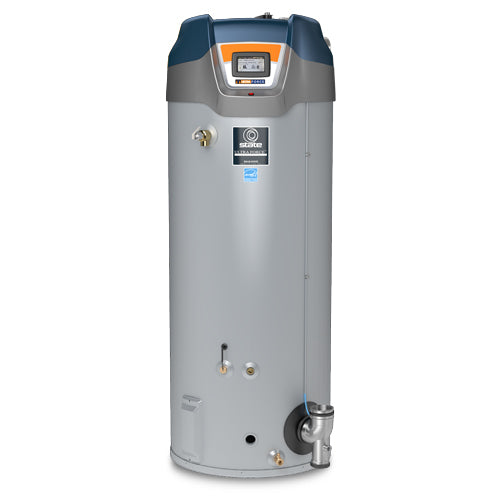

State SUF60120NE Modulating Ultra Force SUF 60 Gallon 120K BTU Natural Gas High Efficiency Water Heater

Product Description

The State SUF60120NE is a modulating Ultra Force high-efficiency power vent condensing water heater designed for dependable service. It features industry-leading technology, delivering thermal efficiencies of 95% and higher. The unique helical coil heat exchanger limits weld joints for optimal service life while maximizing heat transfer. It adjusts firing rate to the specific demand, further increasing efficiency and money savings.

• Intelligent Control System with LCD Display
• Submerged Combustion Chamber with Helical Heat Exchanger Coil
• Powered Anodes

Product Highlights

This high-efficiency commercial gas water heater features a submerged combustion chamber, helical heat exchanger coil, and intelligent control system with LCD display.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: SUF60120NE

Technical Specifications

• Capacity: 60 Gallons
• Manufacturer Name: State
• Type: Natural Gas
• Warranty: 3 Years
• Type Modulating: Commercial Gas Water Heater
• Applicable Standard: ASME, ASHRAE/IESNA 90.1, ANSl Z21.10.3, CSA 4.3, NSF 5, SCAQMD 1146.2, AHRI, UL (Canada and US)
• Inlet/Outlet Connection: 1-1/2" Threaded x 1-1/2" Threaded
• Gas Type: Natural
• Gas Connection: 3/4" Threaded
• Relief Valve Details: CSA/ASME T and P Relief Valve Supplied
• Venting Type: Direct, Power, Sidewall/Vertical
• Draft Hood Outlet/Vent Size: 3" or 4"
• Input Supply Rating: 120000 BTU/HR
• Tank Dimensions: 27-3/4" Diameter x 55-1/2" Height
• Tank Material: Ultra Coat Seamless Glass Lined Steel
• Tank Capacity: 60 Gallon
• Tank Warranty: 3 Year Limited
• GPH Recovery: 154 GPH at 90 Deg F
• ASME Code: No
• Ignition Type: Direct Spark
• Insulation Details: Foam
• Burner Type: Down-Fired Pre-Mix Power Modulating Gas
• Energy Saver Conformance: No
• Options: Concentric Vent Kit, Low Profile Termination Kit, Condensate Neutralization Kit
• Inclusions/Features: Intelligent Control System with LCD Display, Submerged Combustion Chamber with Helical Heat Exchanger Coil, Powered Anodes, Mechanical Venting Versatility, 96 Percent Thermal Efficiency
• Maximum Hydrostatic Working Pressure: 160 PSI
• Thermostat Type: Adjustable
• Thermostat Setting: 90 to 180 Deg F
• Electrical Rating: 120 Volt AC at 60 Hertz 5 Amp
• Input Power: 120000 BTU/hr
• Thermal Efficiency: 95 %
• Standard Type: Non-ASME
• Minimum Supply Natural Gas Line Size (N.P.T.): 1/2 in
• Minimum Supply Propane Gas Line Size (N.P.T.): 1/2 in
• Water Connection: 1-1/2 in
• Style: Ultra Force™
• Size: C
• Industry Standards: AHRI Certified®, ASHRAE/IESNA 90.1, ASME Certified, CSA® Certified, Energy Star, UL® Listed
• Recovery at 30 °F Temperature Rise: 461 gal/h
• Recovery at 17 °C Temperature Rise: 1744 L/h
• Recovery at 40 °F Temperature Rise: 345 gal/h
• Recovery at 22 °C Temperature Rise: 1308 L/h
• Recovery at 50 °F Temperature Rise: 276 gal/h
• Recovery at 28 °C Temperature Rise: 1046 L/h
• Recovery at 60 °F Temperature Rise: 230 gal/h
• Recovery at 33 °C Temperature Rise: 872 L/h
• Recovery at 70 °F Temperature Rise: 197 gal/h
• Recovery at 39 °C Temperature Rise: 747 L/h
• Recovery at 80 °F Temperature Rise: 173 gal/h
• Recovery at 44 °C Temperature Rise: 654 L/h
• Recovery at 90 °F Temperature Rise: 154 gal/h
• Recovery at 50 °C Temperature Rise: 581 L/h
• Recovery at 100 °F Temperature Rise: 138 gal/h
• Recovery at 56 °C Temperature Rise: 523 L/h
• Recovery at 110 °F Temperature Rise: 126 gal/h
• Recovery at 61 °C Temperature Rise: 476 L/h
• Recovery at 120 °F Temperature Rise: 115 gal/h
• Recovery at 67 °C Temperature Rise: 436 L/h
• Recovery at 130 °F Temperature Rise: 106 gal/h
• Recovery at 72 °C Temperature Rise: 402 L/h
• Recovery at 140 °F Temperature Rise: 99 gal/h
• Recovery at 78 °C Temperature Rise: 374 L/h
• Dimension A: 3 in
• Dimension B: 27.75 in
• Dimension C: 6.3 in
• Dimension D: 35 in
• Dimension E: 55.5 in
• Dimension F: 48 in
• Dimension G: 11 in
• Dimension H: 42 in
• Dimension I: 47.5 in
• One 90° Elbows for Maximum 3" Vent Pipe: 45 ft
• Two 90° Elbows for Maximum 3" Vent Pipe: 40 ft
• Three 90° Elbows for Maximum 3" Vent Pipe: 35 ft
• Four 90° Elbows for Maximum 3" Vent Pipe: 30 ft
• One 90° Elbows for Maximum 4" Vent Pipe: 115 ft
• Two 90° Elbows for Maximum 4" Vent Pipe: 110 ft
• Three 90° Elbows for Maximum 4" Vent Pipe: 105 ft
• Four 90° Elbows for Maximum 4" Vent Pipe: 100 ft
• Five 90° Elbows for Maximum 4" Vent Pipe: 95 ft
• Six 90° Elbows for Maximum 4" Vent Pipe: 90 ft
• Fuel Type: Natural Gas
• Tankless: No
• Vent Type: Power Vent
• Tank Size (Gallons ): 60
• Building Type: Commercial
• Water Heater Height (inches ): 42.25
• Diameter/Width (inches ): 27.75
• Water Inlet Size: 1 1/2 Male
• Height Including Draft Hood (inches ): 55.50
• Hot Water Outlet Size: 1 1/2 Male
• Approximate Weight (pounds ): 460
• SKU: SUF60120NE
• Maximum Supply Pressure: 14" W.C.
• Capacity (Gallons): 60
• BTU Input: 120,000
• Height (Inches): 56
• Diameter (Inches): 27 3/4
• Weight (lbs.): 490
• Recovery 60°F Rise: 230 GPH
• Recovery 100°F Rise: 138 GPH
• Recovery 140°F Rise: 99 GPH
• Connection Size: 3/4” NPT
• Minimum Supply Pressure: 3.5 " W.C.
• Width: 28.00 (in)
• Depth: 28.00 (in)
• Gas Connection (inches ): 3/4
• Vent Size (inches ): 3
• Standard Approximate Shipping Weight: 460 lb
• ASME Approximate Shipping Weight: 490 lb
