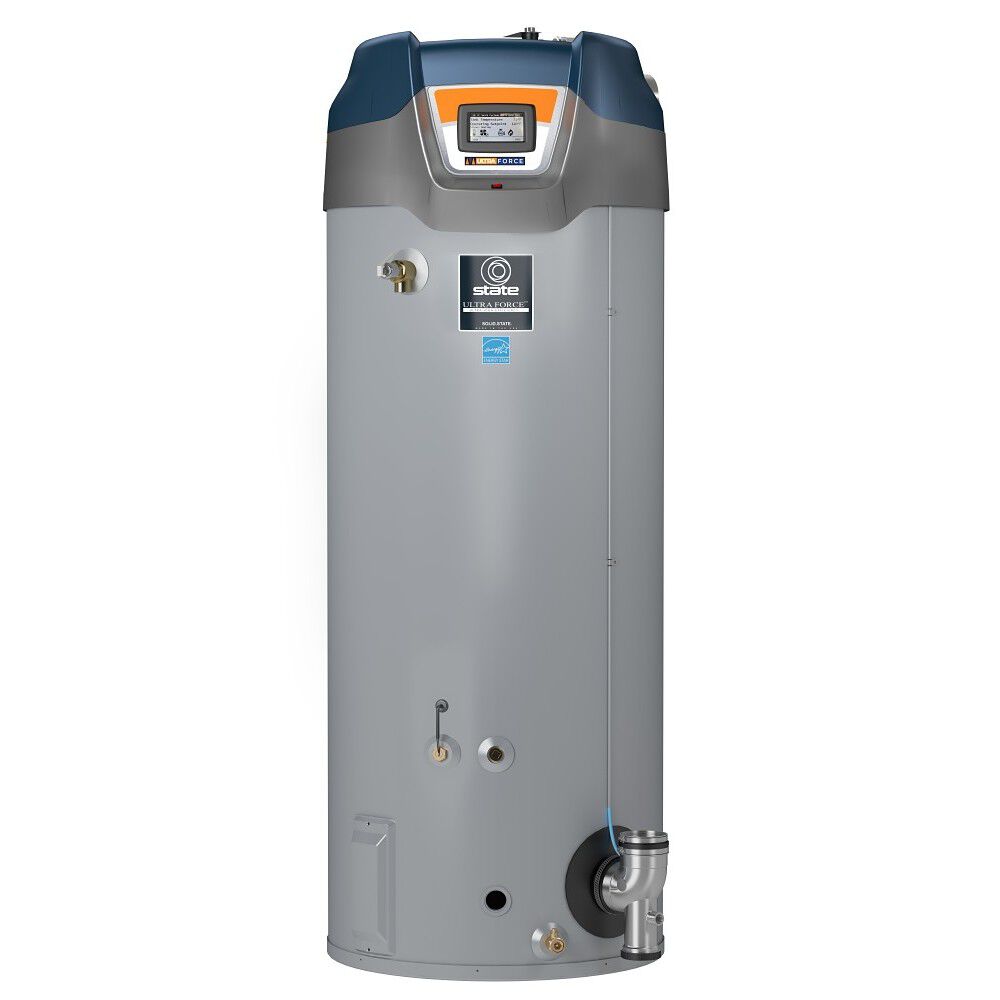

State SUF100199NE Modulating Ultra Force High Efficiency Power Vent 199,900 BTU

Product Description

The State SUF100199NE Modulating Ultra Force™ High Efficiency Power Vent condensing water heater provides dependable service with industry-leading technology. Models deliver thermal efficiencies of 95% and higher. The helical coil heat exchanger limits weld joints for optimal service life while maximizing heat transfer. The modulating models adjust firing rate to the specific demand, increasing efficiency and money savings.

• ENERGY STAR® certified - Up to 96% thermal efficiency dramatically lowers operating costs
• Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
• Submerged combustion chamber, with helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber

Product Highlights

The Ultra Force SUF product line is efficient, delivering more hot water for every energy dollar. Ideal for restaurants and mid-sized commercial applications.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: SUF100199NE

Technical Specifications

• Nominal Gallon Capacity: 100 Gallons
• Rated Storage Volume: 96 Gallons
• Thermal Efficiency: 95 %
• Maximum BTUs: 199,900
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Size: 1.5"
• ASME Certified: No
• Amperes: 5
• Digital Display: Yes
• ENERGY STAR Certified: Yes
• Fuel Source: NATURAL
• Height to T&P: 56.38
• Installation Type: INDOOR
• Minimum BTUs: 78,000
• Application: COMMERCIAL
• Side Loop: No
• Voltage: 120
• Type: Water Heater
• Height: 76.5"
• Diameter: 27.75"
• Height to Gas Valve: 75.5"
• SKU: SUF100199NE
• Fuel Type: Natural Gas
• Capacity (Gallons): 100
• BTU Input: 199,900
• Vent Size: 3"
• Recovery 60 F Rise: 392 GPH
• Recovery 100 F Rise: 235 GPH
• Recovery 140 F Rise: 168 GPH
• Connection Size: 1-1/2 in.
• Max Pressure: 14" W.C.
• Minimum Supply Pressure: 3.5" WC
• Width: 28.00 (in)
• Depth: 28.00 (in)
• Manufacturer: State
• Standard Type: ASME
• Input Power: 199900 BTU/hr
• Minimum Supply Natural Gas Line Size (N.P.T.): 3/4 in
• Minimum Supply Propane Gas Line Size (N.P.T.): 3/4 in
• Water Connection: 1-1/2 in
• Style: Ultra Force
• Size: C
• Industry Standards: AHRI Certified , ASHRAE/IESNA 90.1, ASME Certified, CSA Certified, Energy Star, UL Listed
• Recovery at 30 F Temperature Rise: 767 gal/h
• Recovery at 40 F Temperature Rise: 575 gal/h
• Recovery at 50 F Temperature Rise: 460 gal/h
• Recovery at 70 F Temperature Rise: 329 gal/h
• Recovery at 80 F Temperature Rise: 288 gal/h
• Recovery at 90 F Temperature Rise: 256 gal/h
• Recovery at 110 F Temperature Rise: 209 gal/h
• Recovery at 120 F Temperature Rise: 192 gal/h
• Recovery at 130 F Temperature Rise: 177 gal/h
• Recovery at 140 F Temperature Rise: 164 gal/h
• Dimension A: 3 in
• Dimension B: 27.75 in
• Dimension C: 6.3 in
• Dimension D: 55.5 in
• Dimension E: 75.5 in
• Dimension F: 75.5 in
• Dimension G: 11 in
• Dimension H: 63 in
• Dimension I: 69 in
• One 90 Elbows for Maximum 3" Vent Pipe: 45 ft
• Two 90 Elbows for Maximum 3" Vent Pipe: 40 ft
• Three 90 Elbows for Maximum 3" Vent Pipe: 35 ft
• Four 90 Elbows for Maximum 3" Vent Pipe: 30 ft
• One 90 Elbows for Maximum 4" Vent Pipe: 115 ft
• Two 90 Elbows for Maximum 4" Vent Pipe: 110 ft
• Three 90 Elbows for Maximum 4" Vent Pipe: 105 ft
• Five 90 Elbows for Maximum 4" Vent Pipe: 95 ft
• Six 90 Elbows for Maximum 4" Vent Pipe: 90 ft
• MPN: SUF100199NE (Ultra Force, Natural Gas)
• Capacity: 100 Gallons
• Input: 199,900 BTU/h
• Recovery (GPH): 392 @ 60 F rise, 235 @ 100 F rise, 168 @ 140 F rise
• Fuel: Natural Gas
• Ignition: Direct Spark; Modulating Pre-Mix Burner
• Heat Exchanger: Submerged Combustion Chamber with Helical/Spiral Coil
• Tank Protection: Permaglas Glass Lining with Powered Anode Rods
• Controls: Intelligent Touchscreen Control, On-Board Diagnostics, iCOMM-Ready Connectivity
• Venting: Power Vent or Direct Vent (sidewall or vertical)
• Vent Size / Materials: 3" or 4" PVC, CPVC, Polypropylene, or AL29 4C Stainless
• Water Connections: 1-1/2" NPT (inlet/outlet)
• Gas Connection: 3/4" NPT (typical)
• Electrical: 120V, 60 Hz
• Max Working Pressure: 160 psi
• Temperature Range: 90 180 F (adjustable)
• Dimensions: Approx. 27-3/4" Dia 76 76-1/2" H
• Compliance: Ultra-Low NOx; AHRI, ANSI Z21.10.3 / CSA 4.3, ASHRAE/IESNA 90.1, SCAQMD 1146.2, NSF 5
• Certifications: UL Listed, CSA Certified, ASME
• Collection: Ultra Force
• Connection Type: Threaded
• Horse Power: 1/3
• Inlet Size: 1-1/2 in.
• Material: Steel
• Room: Utility
• Vent Type: Power
• Amps: 5
• BTU: 199,900
• Four 90 Elbows for Maximum 4" Vent Pipe: 100 ft
