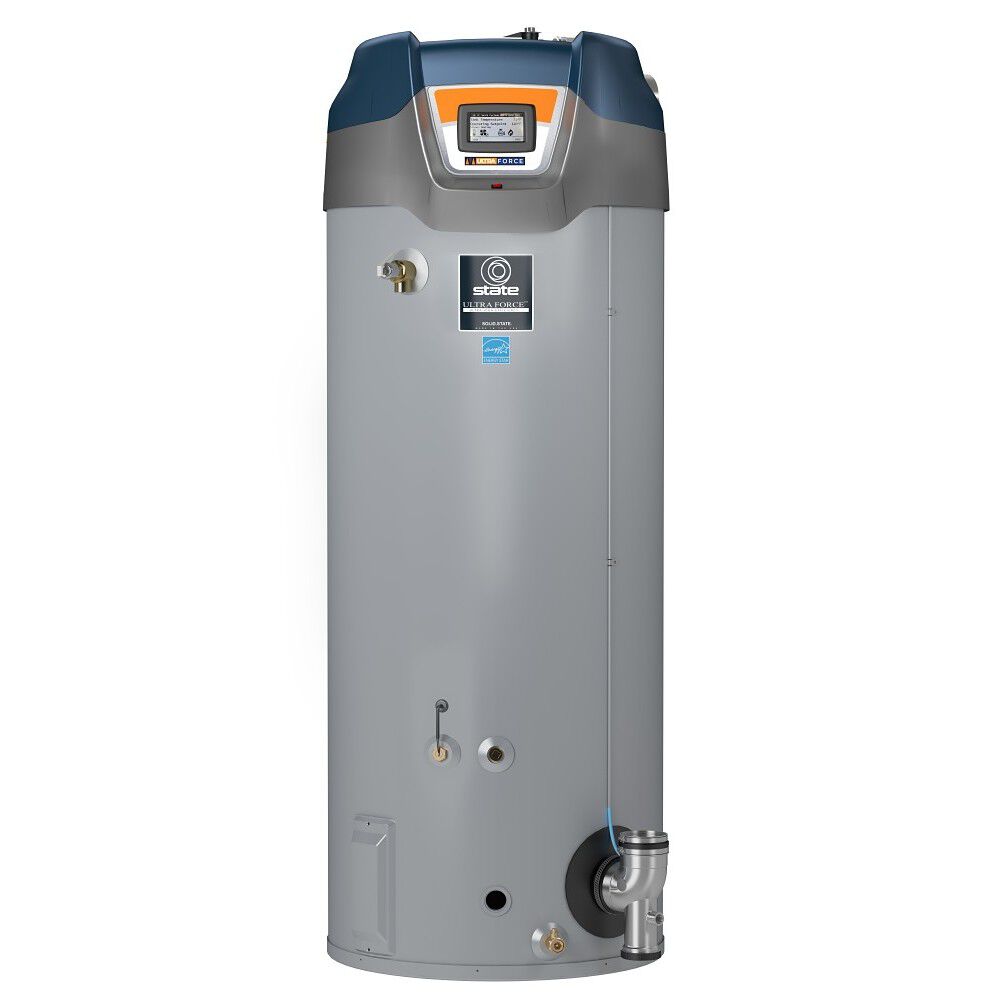

State SUF100150NE Modulating Ultra Force High Efficiency Power Vent 100 Gallons

Product Description

The State SUF100150NE Modulating Ultra Force™ High Efficiency Power Vent condensing water heater provides dependable service with industry-leading technology. Delivering thermal efficiencies of 98%, the helical coil heat exchanger limits weld joints for optimal service life while maximizing heat transfer. The modulating models adjust firing rate to the specific demand, increasing efficiency and saving money.

• ENERGY STAR® certified - Up to 96% thermal efficiency dramatically lowers operating costs
• Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
• Submerged combustion chamber, with helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber

Product Highlights

This high-efficiency commercial water heater features a modulating down-fired pre-mix burner for optimum efficiency and quiet operation. It also has a Permaglas® Ultra Coat™ glass lining for uniform coating.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: SUF100150NE

Technical Specifications

• Nominal Gallon Capacity: 100 Gallons
• Rated Storage Volume: 96 Gallons
• Thermal Efficiency: 98%
• Maximum BTUs: 150,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Size: 1.5"
• ASME Certified: No
• Amperes: 5
• Destination Country: US
• Digital Display: Yes
• ENERGY STAR Certified: Yes
• Fuel Source: NATURAL
• Height to T&P: 56.38
• Installation Type: INDOOR
• Minimum BTUs: 78,000
• Application: COMMERCIAL
• Side Loop: No
• Voltage: 120
• Type: Water Heater
• Height: 76.5"
• Diameter: 27.75"
• Height to Gas Valve: 75.5"
• SKU: SUF100150NE
• Maximum Supply Pressure: 14" W.C.
• Fuel Type: Natural Gas
• Capacity (Gallons): 100
• BTU Input: 150,000
• Recovery 60 F Rise: 297 GPH
• Recovery 100 F Rise: 178 GPH
• Recovery 140 F Rise: 127 GPH
• Connection Size: 3/4 NPT
• Minimum Supply Pressure: 3.5" W.C.
• Width: 28.00 (in)
• Depth: 28.00 (in)
• Additional Information: 3/4 in Inlet
• BTU Rating: 150000 Btu/hr
• Capacity: 100 gal
• Connection Type: NPT
• Dimensions: 75-1/2 in L
• Efficiency: 98 %
• Energy Star Compliant: Yes
• Ignition System: Direct Spark
• Lead-Free/Contains Lead: Contains Lead
• Power Rating: 44 kW
• Pressure Rating: 160 psi
• Series: 300/301 Series
• Vent Diameter: 3 in
• Vent Type: Direct
• Manufacturer: State
• Standard Type: Non-ASME
• Input Power: 150000 BTU/hr
• Minimum Supply Natural Gas Line Size (N.P.T.): 3/4 in
• Minimum Supply Propane Gas Line Size (N.P.T.): 3/4 in
• Water Connection: 1-1/2 in
• Style: Ultra Force
• Size: C
• Industry Standards: AHRI Certified
• Recovery at 30 F Temperature Rise: 576 gal/h
• Recovery at 40 F Temperature Rise: 432 gal/h
• Recovery at 50 F Temperature Rise: 345 gal/h
• Recovery at 70 F Temperature Rise: 247 gal/h
• Recovery at 80 F Temperature Rise: 216 gal/h
• Recovery at 90 F Temperature Rise: 192 gal/h
• Recovery at 110 F Temperature Rise: 157 gal/h
• Recovery at 120 F Temperature Rise: 144 gal/h
• Recovery at 130 F Temperature Rise: 133 gal/h
• Recovery at 140 F Temperature Rise: 123 gal/h
• Dimension A: 3 in
• Dimension B: 27.75 in
• Dimension C: 6.3 in
• Dimension D: 55.5 in
• Dimension E: 75.5 in
• Dimension F: 68.5 in
• Dimension G: 11 in
• Dimension H: 63 in
• Dimension I: 69 in
• One 90 Elbows for Maximum 3" Vent Pipe: 45 ft
• Two 90 Elbows for Maximum 3" Vent Pipe: 40 ft
• Three 90 Elbows for Maximum 3" Vent Pipe: 35 ft
• Four 90 Elbows for Maximum 3" Vent Pipe: 30 ft
• One 90 Elbows for Maximum 4" Vent Pipe: 115 ft
• Two 90 Elbows for Maximum 4" Vent Pipe: 110 ft
• Three 90 Elbows for Maximum 4" Vent Pipe: 105 ft
• Five 90 Elbows for Maximum 4" Vent Pipe: 95 ft
• Six 90 Elbows for Maximum 4" Vent Pipe: 90 ft
