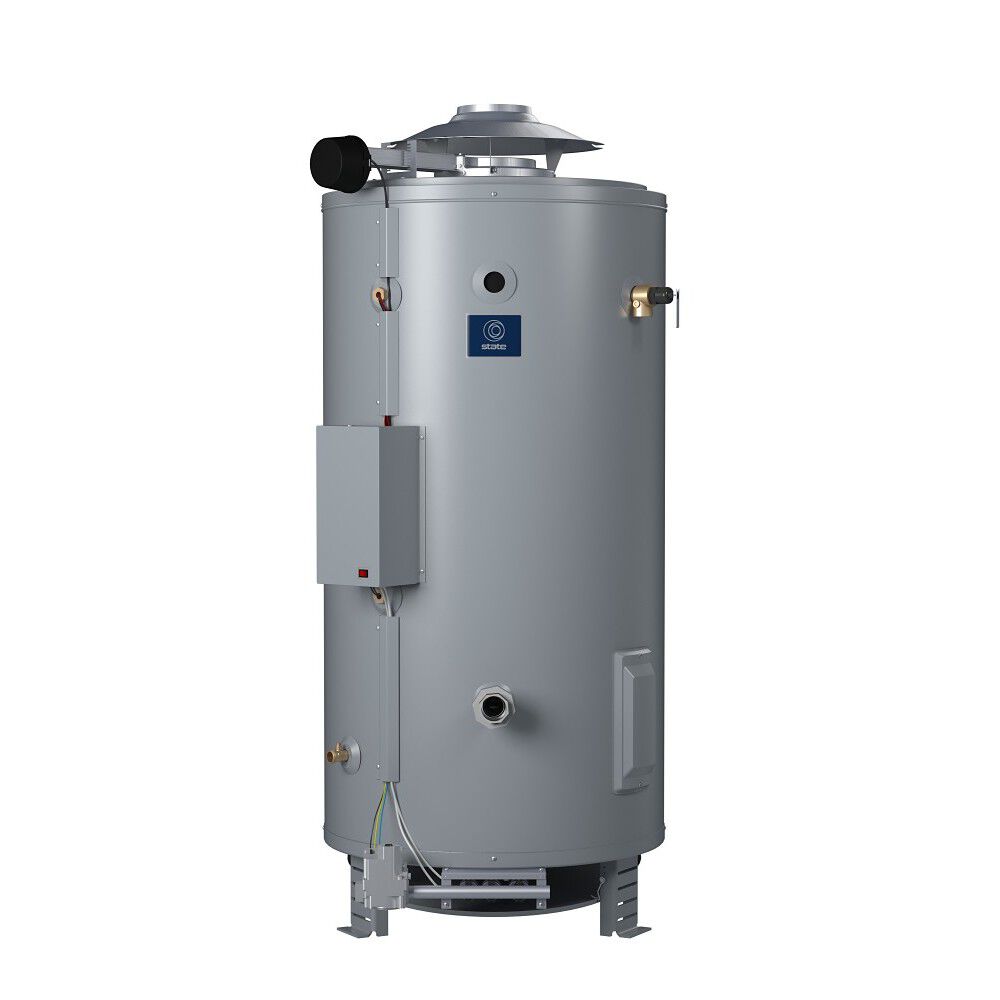

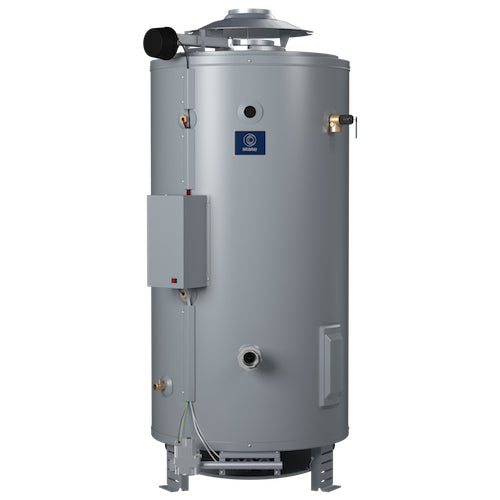

State SBD100199PET Sandblaster Multi-Flue Commercial Gas Water Heater 100 Gallons

Product Description

The STATE SBD100199PET Sandblaster® is a self-cleaning water heater, delivering performance and installation flexibility for new and replacement applications. The SBD series features a compact, low-profile design with multiple water connection options and low installation clearances. It has a maximum BTU of 199,000 and a thermal efficiency of 80%.

• Self-Cleaning Hydro Cannon™
• Automatic Flue Damper (120 - 390 Models)
• Three Water Connection Options

Product Highlights

The Sandblaster® water heater reduces sediment build-up, maintaining thermal efficiency and reducing water heating costs. It features intermittent electronic ignition and a glass-lined tank with multiple anode rods.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: SBD100199PET
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 100 Gallons
• Rated Storage Volume: 96 Gallons
• Thermal Efficiency: 80%
• Maximum BTUs: 199,000
• Power Source: GAS
• T&P Relief Valve: Yes
• ASME Certified: No
• Amperes: 5
• Destination Country: US
• Fuel Source: PROPANE
• Installation Type: INDOOR
• Application: COMMERCIAL
• Side Loop: No
• Voltage: 120
• Type: Water Heater
• Diameter: 27.75"
• Capacity: 100 Gallons
• Manufacturer Name: State
• Applicable Standard: ASHRAE/IESNA 90.1, ANSI Z21.10.3/CSA 4.3, NSF, UL, CSA
• Inlet/Outlet Connection: 2" Threaded Front x 2" Threaded Front
• Gas Type: Propane
• Gas Connection: 1/2"
• Relief Valve Details: 1" Threaded, CSA/ASME T and P Relief Valve Supplied
• Venting Type: Direct, Power, Horizontal
• Draft Hood Outlet/Vent Size: 6"
• Input Supply Rating: 199000 BTU/HR
• Tank Dimensions: 27-3/4" Diameter x 70" Height
• Tank Height Including Draft Hood: 75"
• Tank Material: Glass Lined
• Tank Capacity: 100 Gallon
• GPH Recovery: 193 GPH at 100 Deg F
• Ignition Type: Intermittent Electronic
• Insulation Details: Blanket
• Energy Saver Conformance: Yes
• Options: Manifold Kit, Leg Kit, Side Wall Power Venting Kit
• Inclusions/Features: Self-Cleaning Hydro Cannon, Automatic Flue Damper, Intermittent Electronic Ignition, Power On/Off Switch, 80 Percent Thermal Efficiency, Fully Automatic Control System, Low-Profile Design, Handhole Cleanout, Plug Kits, Draft Design and No Damper
• Maximum Hydrostatic Working Pressure: 160 PSI
• Thermostat Type: Adjustable
• Thermostat Setting: 120 to 180 Deg F
• Electrical Rating: 120 Volt AC 7 Amp
• Ultra Low NOx: No
• Heating Capacity: 199 Kbtu/hr
• Vent Type: Atmospheric
• Series: SANDBLASTER
• Dimensions: 27-3/4 in Dia x 75 in H
• Energy Efficiency: 80 %
• Pressure Rating: 160 psi
• Recovery Rate: 193 gph at 100 deg F Rise
• Tall or Short: Tall
• Temperature Rating: 180 deg F
• Vent Size: 6 in
• Water Connection: 1-1/2 in
• Brand: State Industries
• UNSPSC: 40101826
• Alternate Part Number 1: SBD100199PET
• Manufacturer: A. O. Smith
• Commercial Applications: Replacement Item
