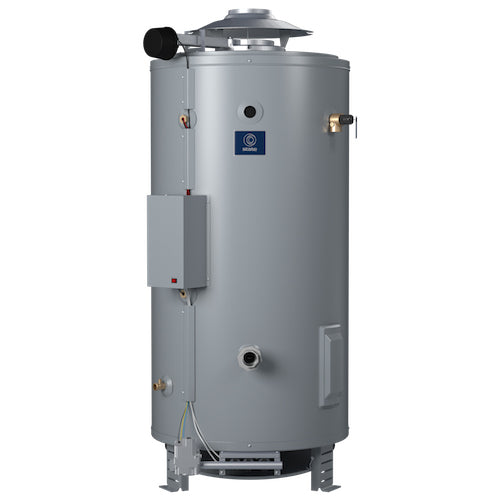

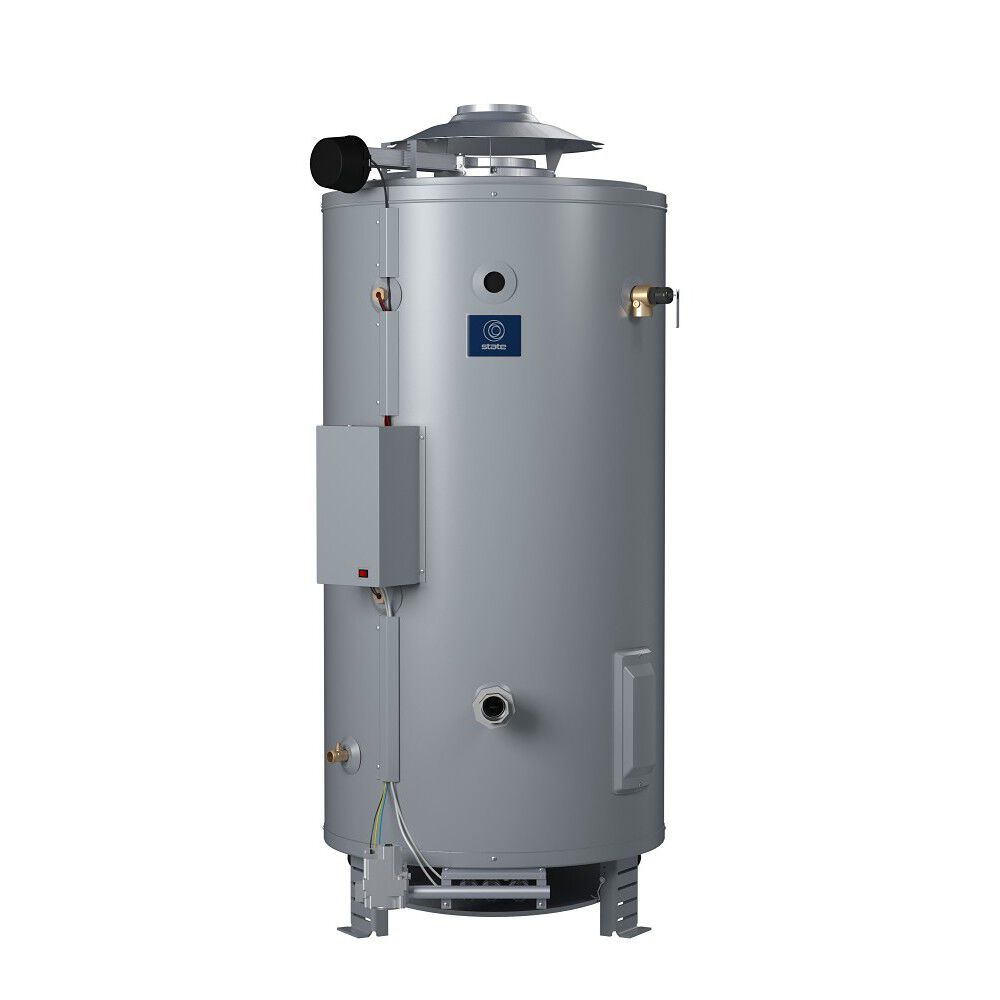

State SBD100199NES Sandblaster Multi-Flue Commercial Gas Water Heater 100 Gallons

Product Description

The STATE SBD100199NES Sandblaster® is the original money-saving self-cleaning water heater. It provides outstanding performance and installation flexibility for new construction and replacement applications. The Sandblaster SBD series offers installer-friendly features, including compact low-profile design and multiple options for water connections.

• Self-Cleaning Hydro Cannon™
• Automatic Flue Damper (120 - 390 Models)
• Three Water Connection Options

Product Highlights

This self-cleaning water heater provides flexibility for new construction and replacement applications. It features a compact low-profile design and multiple water connection options.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: SBD100199NES

Technical Specifications

• Nominal Gallon Capacity: 100 Gallons
• Rated Storage Volume: 98 Gallons
• Thermal Efficiency: 80%
• Maximum BTUs: 199,000
• Power Source: Gas
• T&P Relief Valve: Yes
• ASME Certified: No
• Fuel Source: Natural Gas
• Installation Type: Indoor
• Application: Commercial
• Side Loop: No
• Voltage: 120
• Type: Water Heater
• Diameter: 30.25"
• ANSI: ANSI Z.21.10.3
• ASME: ASME A150
• BTU: 199000
• CSA Certified: CSA 4.3
• Capacity: 100 gal
• Collection: SandBlaster
• Depth: 34
• Height: 72
• Lining of Tank: Permaglas
• MBH: 199
• NSF: NSF 5
• NSF Certified: Yes
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
• UL Listed: No
• UPC: 091196518202
• Vent Type: Atmospheric Vent
• Water Heater Capacity Range: 51 - 100 gal
• Water Heater Type: Tall
• Additional Information: 1-1/2 in Water Inlet and Outlet
• BTU Rating: 199000 Btu/hr
• Dimensions: 72 in
• Ignition Type: Intermittent Electronic
• Lead-Free/Contains Lead: Contains Lead
• Material: Stainless Steel
• Pressure Rating: 160 psi
• Recovery Efficiency: 80 %
• Recovery Rate: 132 gph
• Series: SBD Series
• Switching Action: On/Off
• Manufacturer Name: State
• Applicable Standard: ASHRAE/IESNA 90.1, ANSI Z21.10.3/CSA 4.3, NSF, UL, CSA
• Inlet/Outlet Connection: 2" Threaded Front x 2" Threaded Front
• Gas Type: Natural
• Gas Connection: 1/2"
• Relief Valve Details: 1" Threaded, CSA/ASME T and P Relief Valve Supplied
• Venting Type: Direct, Power, Horizontal
• Draft Hood Outlet/Vent Size: 6"
• Input Supply Rating: 199000 BTU/HR
• Tank Dimensions: 30-1/4" Diameter x 65-1/8" Height
• Tank Height Including Draft Hood: 72"
• Tank Material: Glass Lined
• Tank Capacity: 100 Gallon
• GPH Recovery: 193 GPH at 100 Deg F
• Insulation Details: Blanket
• Energy Saver Conformance: Yes
• Options: Manifold Kit, Leg Kit, Side Wall Power Venting Kit
• Inclusions/Features: Self-Cleaning Hydro Cannon, Automatic Flue Damper, Intermittent Electronic Ignition, Power On/Off Switch, 80 Percent Thermal Efficiency, Fully Automatic Control System, Low-Profile Design, Handhole Cleanout, Plug Kits, Draft Design and No Damper
• Maximum Hydrostatic Working Pressure: 160 PSI
• Thermostat Type: Adjustable
• Thermostat Setting: 120 to 180 Deg F
• Electrical Rating: 120 Volt AC 7 Amp
