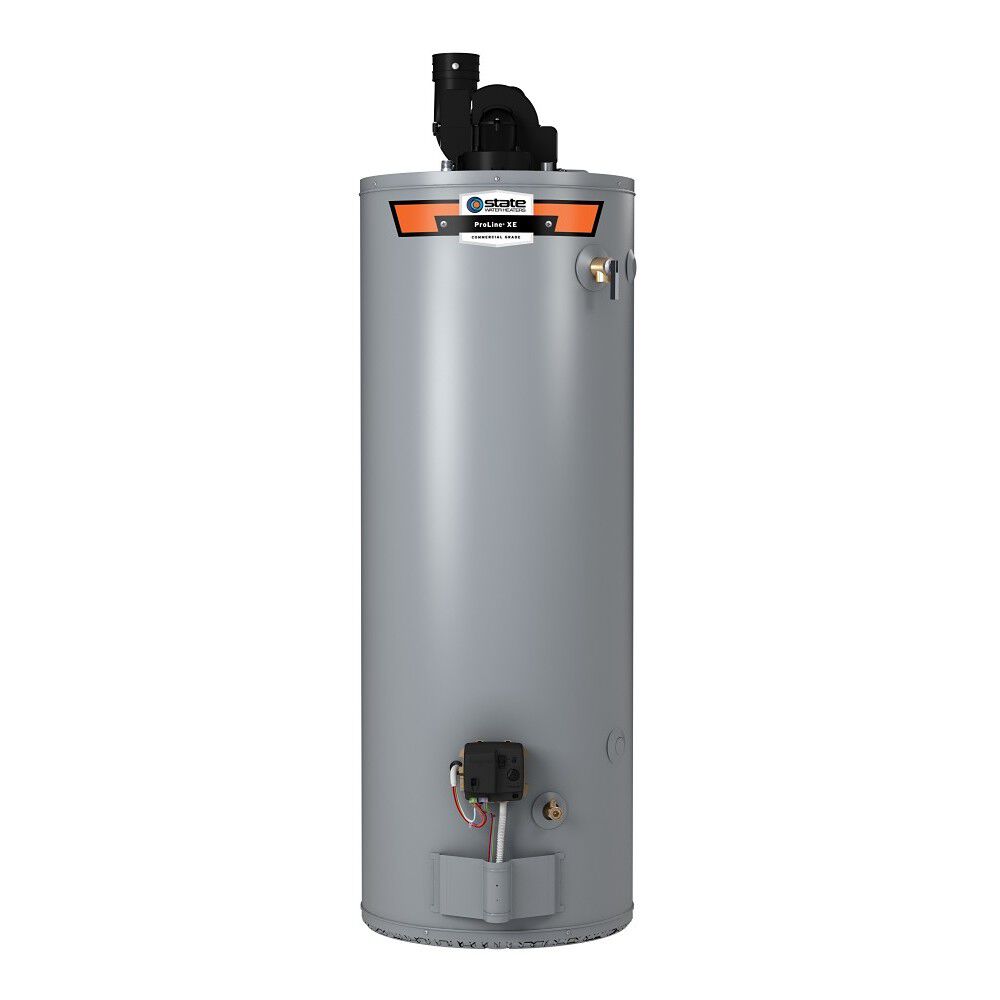

State GS675YRPDTL5 ProLine XE Low NOx 75-Gallon Power Direct Vent Natural Gas Water Heater

Product Description

The State GS675YRPDTL5 ProLine XE Power Direct Vent Natural Gas Water Heater features a two-pipe combustion system, drawing clean air from outside. With a 75-gallon tank and 76,000 BTU gas burner, it delivers a 129-gallon first-hour rating and an 82-gallon per hour recovery rate. The design reduces NOx emissions and complies with Low NOx emission requirements.

• Delivers a 129-gallon first hour rating to meet hot water demands.
• 76,000 BTU input direct vent design delivers up to 0.68 Uniform Energy Factor for energy efficiency.
• Patented Green Choice Gas Burner reduces NOx emissions by up to 33%.

Product Highlights

Features include a stainless steel CoreGard anode rod, Blue Diamond glass lining, and DynaClean automatic sediment-cleaning for tank protection and extended life. Includes side mounted recirculation taps for easy installation.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GS675YRPDTL5
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 75 Gallons
• Rated Storage Volume: 72 Gallons
• UEF: 0.68
• Thermal Efficiency: 82%
• Maximum BTUs: 76,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• Emissions: Low NOx
• First Hour Rating: 129 Gallons
• ASME Certified: No
• Amperes: 5
• Blanket Included: No
• Fuel Source: NATURAL
• Height to T&P: 53.00
• Ignition Type: Electronic Hot Surface Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: Yes
• Voltage: 120
• Type: Water Heater
• Height: 60"
• Diameter: 26"
• Vent Type: Power Direct Vent
