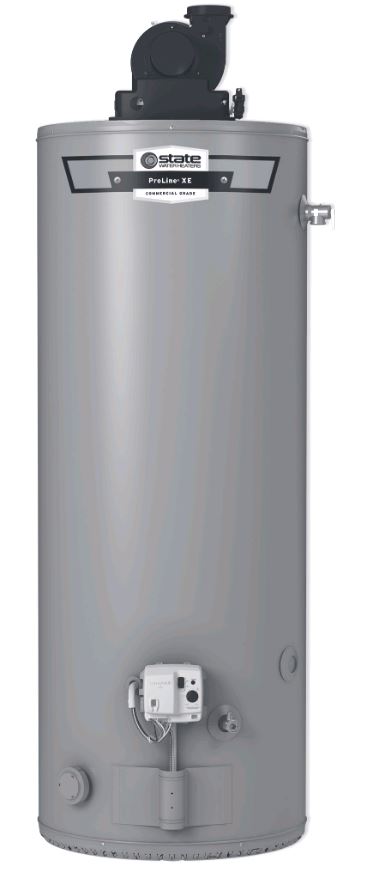

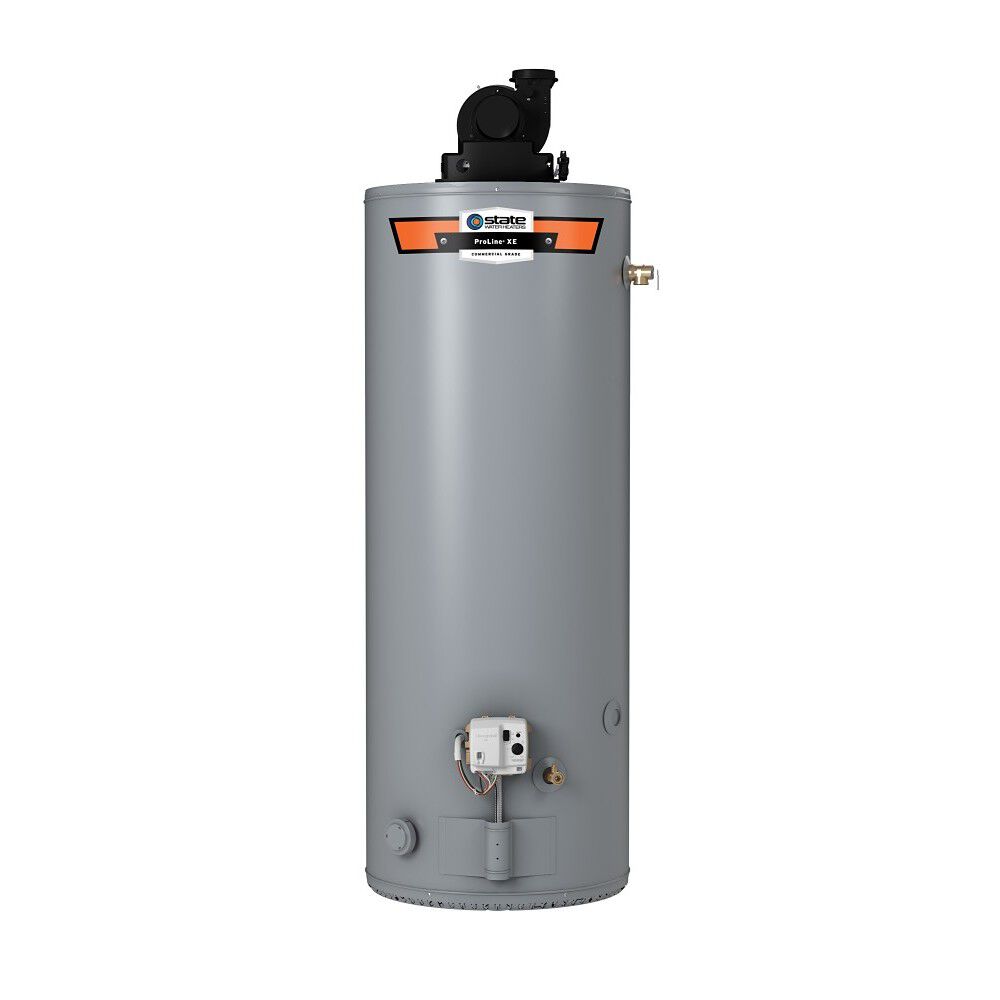

State GS650YBVIS ProLine XE Power Vent Natural Gas Water Heater 50-Gallon

Product Description

The State GS650YBVIS ProLine XE Power Vent Natural Gas Water Heater maximizes efficiency and provides flexible installation options. Featuring a 50-gallon tank and a 40,000 BTU gas burner, it delivers a first-hour rating of 79 gallons and a recovery rate of 44.7 gallons per hour. A patented Green Choice burner design reduces NOx emissions up to 33%.

• Delivers a 79-gallon first hour rating
• 40,000 BTU input power vent design delivers up to 0.72 Uniform Energy Factor
• Patented Green Choice Gas Burner design reduces NOx emissions by up to 33%

Product Highlights

This water heater features flexible installation options, reduces emissions, and lowers gas usage.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GS650YBVIS
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 49 Gallons
• UEF: 0.72
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 1"
• Emissions: Low NOx
• First Hour Rating: 79 Gallons
• ASME Certified: No
• Amperes: 5
• Blanket Included: No
• Destination Country: US
• Digital Display: Yes
• Flue Diameter: 4.00
• Fuel Source: Natural Gas
• Height to T&P: 43.75
• Ignition Type: Electronic Hot Surface Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Voltage: 120
• Type: Water Heater
• Height: 60"
• Diameter: 24"
• Vent Type: Power Vent
• Height to Gas Valve: 12"
• Energy Factor (EF): 0.70
• Recovery @ 90 0F Rise Per Hour: 44.7
• BTU Input: 40,000
• Nominal Capacity: 50
• Width: 24.00 (in)
• Depth: 24.00 (in)
• Altitude: 10100 ft
• BTU Rating: 40000 Btu/hr
• Capacity: 50 gal
• Connection Type: NPT
• Energy Factor: 0.72
• Energy Star Compliant: Yes
• Finish: Glass-Coated
• First Hour Delivery: 79 gal
• Ignition: Electronic
• Lead-Free/Contains Lead: Contains Lead
• Pressure Rating: 150 psi
• Recovery Rate: 45 gph
• Series: 200 Series
• Vent Diameter: 4 in
• Tankless: No
• Tank Size (Gallons): 50
• Building Type: Residential
• Water Heater Height (inches): 56.75
• Diameter/Width (inches): 20
• Water Inlet Size: 3/4 Male
• Gas Connection (inches): 1/2
• Vent Size (inches): 2 3 4
• Height Including Draft Hood (inches): 65
• Hot Water Outlet Size: 3/4 Male
• Approximate Weight (pounds): 177
• Additional Information: 3/4 in Water Inlet and Outlet, Short-Type
