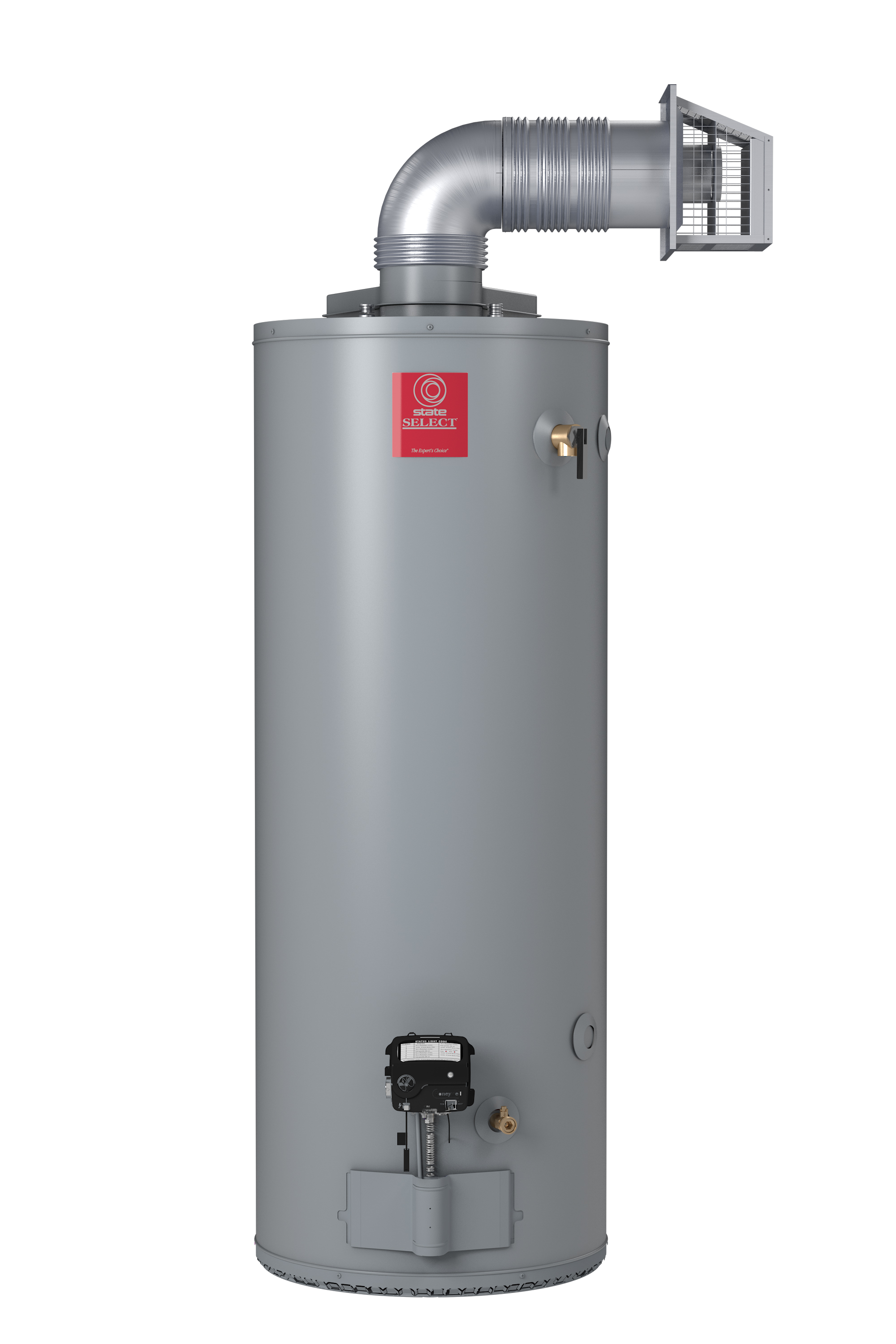

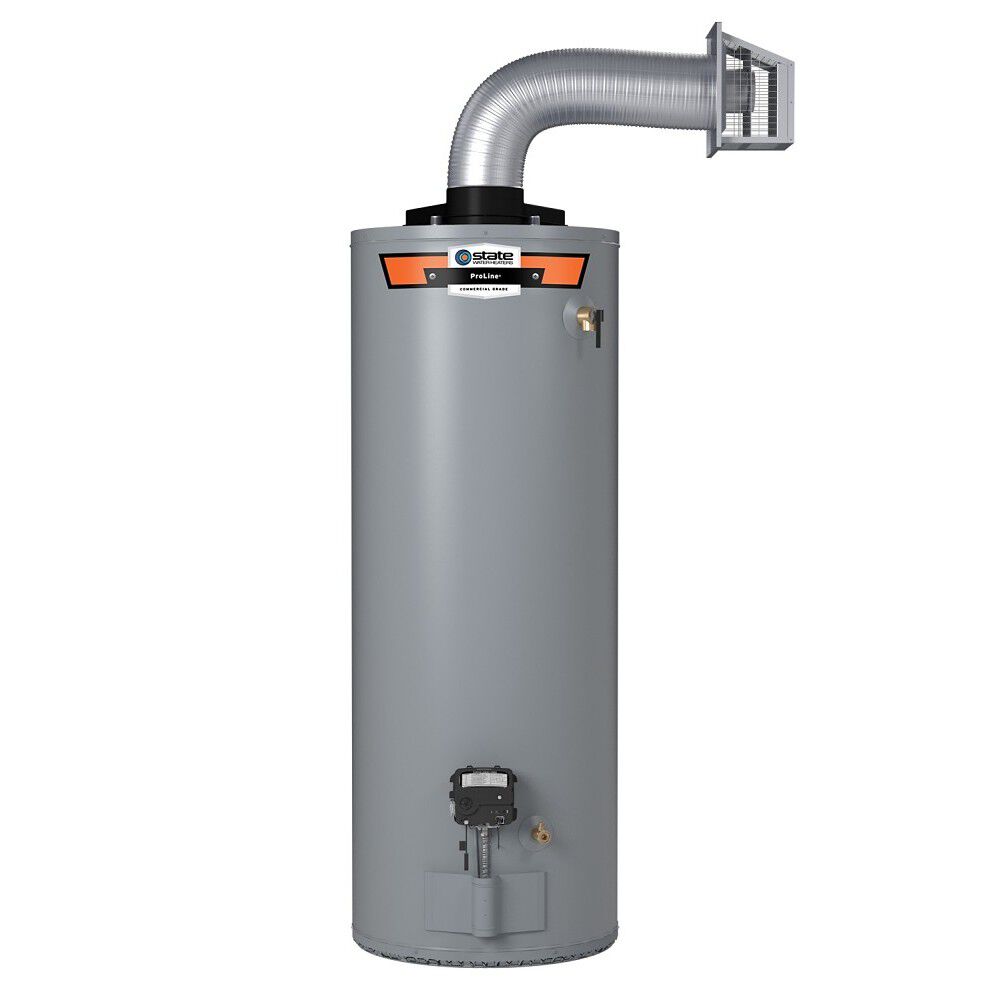

State GS650HBDS ProLine Low NOx Water Heater 50-Gallon

Product Description

The STATE GS650HBDS ProLine Direct Vent 50-Gallon Liquid Propane Water Heater draws air from outside, eliminating ventilation issues. With a 50-gallon tank and 40,000 BTU liquid propane burner, it delivers a 77-gallon first hour rating and a 43-gallon per hour recovery rate. Features a Green Choice burner that reduces NOx emissions up to 33%.

• Delivers a 77-gallon first hour rating
• 40,000 BTU input direct vent design delivers up to 0.66 Uniform Energy Factor
• Patented Green Choice Gas Burner design reduces NOx emissions by up to 33%

Product Highlights

This water heater features eco-friendly insulation, a stainless steel CoreGard anode rod, Blue Diamond glass lining, and DynaClean automatic sediment-cleaning for extended life.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GS650HBDS
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 48 Gallons
• UEF: 0.66
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• Emissions: Low NOx
• First Hour Rating: 77 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: PROPANE
• Height to T&P: 51.75
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 72.6"
• Diameter: 22"
• Vent Type: Direct Vent
• Height to Gas Valve: 14.24"
• Fuel Type: Liquid Propane
• Tankless: No
• Building Type: Residential
• Water Heater Height (inches): 59
• Water Inlet Size: 3/4 Male
• Gas Connection (inches): 1/2
• Height Including Draft Hood (inches): 73
• Hot Water Outlet Size: 3/4 Male
• Energy Factor: .59
• Approximate Weight (pounds): 200
