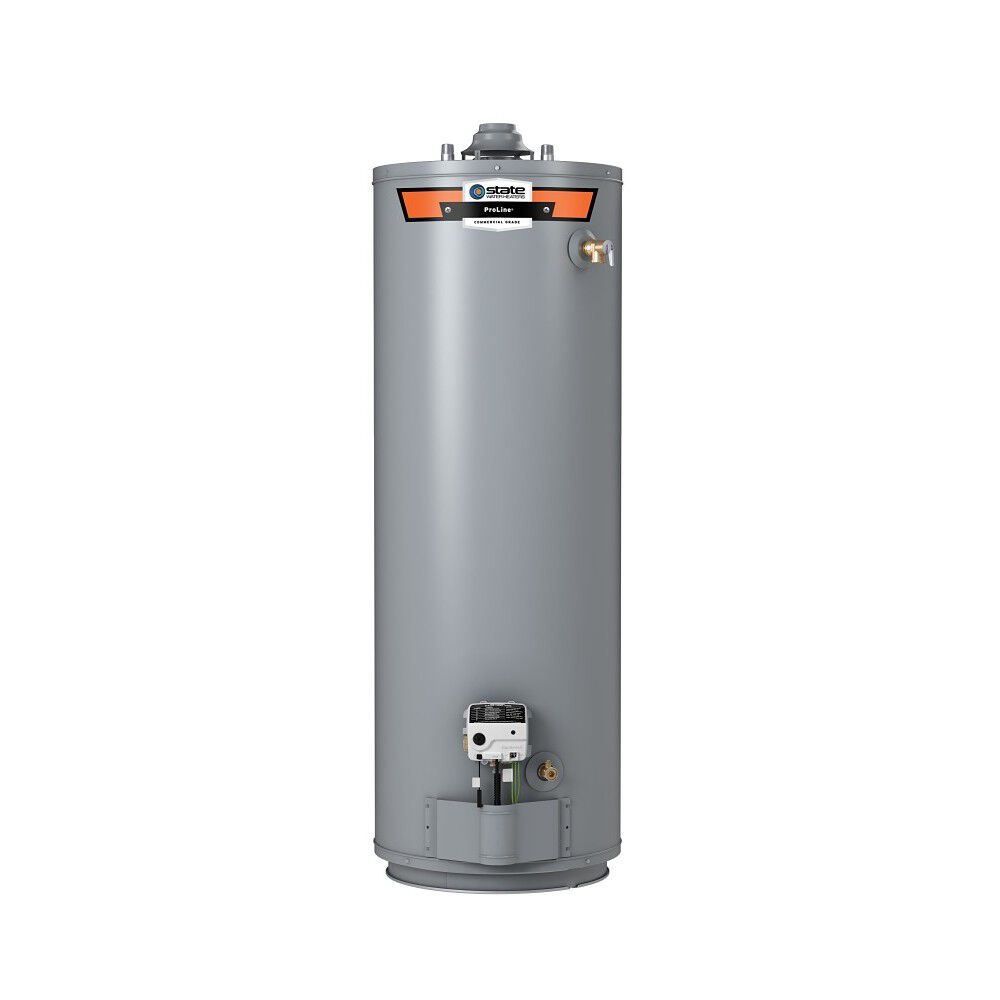

State GS650BCUT ProLine Ultra-Low NOx 50-Gallon Water Heater 40,000 BTU

Product Description

The State GS650BCUT ProLine Ultra-Low NOx gas water heater delivers efficient, reliable performance with an innovative design that protects against flammable vapors. Featuring a 50-gallon tank and a 40,000 BTU gas burner, it delivers a first hour rating of 84 gallons and a recovery rate of 42 gallons per hour.

• Delivers an 84-gallon first hour rating
• 40,000 BTU input delivers up to 0.64 Uniform Energy Factor
• Ultra-Low NOX Green Choice gas burner meets emission requirements

Product Highlights

This ProLine water heater features advanced tank protection and an automatic sediment-cleaning system to extend the life of the water heater.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GS650BCUT
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 50 Gallons
• Rated Storage Volume: 48 Gallons
• UEF: 0.64
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Size: 0.75"
• Emissions: Ultra-Low NOx
• First Hour Rating: 84 Gallons
• ASME Certified: No
• Blanket Included: No
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 50.50
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Gas
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 11"
• MFG Number: GS650BCUT
