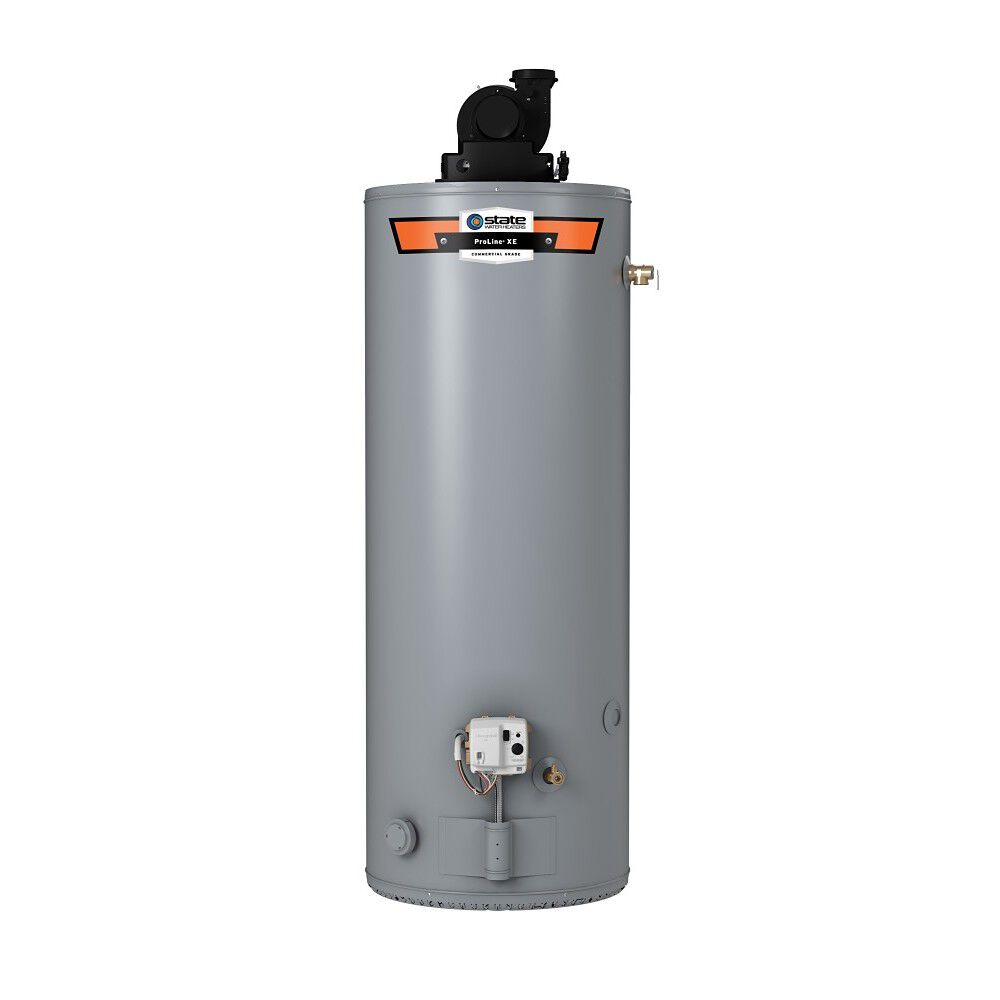

State GS640YBVIS ProLine XE 40-Gallon Power Vent Natural Gas Water Heater

Product Description

The STATE GS640YBVIS ProLine XE Power Vent natural gas water heater maximizes efficiency and offers flexible installation. Featuring a 40-gallon tank and a 40,000 BTU gas burner, it delivers a 73-gallon first hour rating and a recovery rate of 44.7 gallons per hour. The Green Choice burner reduces NOx emissions and complies with Low NOx requirements.

• Delivers a 73-gallon first hour rating
• 40,000 BTU input power vent design delivers up to 0.67 Uniform Energy Factor
• Green Choice Gas Burner design reduces NOx emissions by up to 33%

Product Highlights

This water heater features a stainless steel CoreGard anode rod, Blue Diamond glass lining, and DynaClean automatic sediment-cleaning.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GS640YBVIS
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 40 Gallons
• Rated Storage Volume: 38 Gallons
• UEF: 0.67
• Maximum BTUs: 40,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• Emissions: Low NOx
• First Hour Rating: 73 Gallons
• ASME Certified: No
• Amperes: 5
• Digital Display: Yes
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 42.50
• Ignition Type: Electronic Hot Surface Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Voltage: 120
• Type: Water Heater
• Height: 58.5"
• Diameter: 22"
• Vent Type: Power Vent
• Height to Gas Valve: 13.25"
• Additional Information: Commercial-Grade, Low Nox Emissions
• BTU Rating: 40000 Btu
• Capacity: 40 gal
• Connection Type: NPT
• Dimensions: 22 in Dia x 59 in H
• Energy Factor: 0.70
• Energy Star Compliant: No
• First Hour Delivery: 73 gal
• Fuel Type: Natural Gas
• Ignition: Electronic
• Pressure Rating: 150 psi
• Recovery Rate: 45 gph
• Series: ProLine XE Series
• Temperature Rating: 90 deg F
• Vent Diameter: 4 in
• Applicable Standard: ANSI Z21.10.1/CSA 4.1/ANSI Z21.10.3/CSA 4.3, AHRI, CSA
• Inlet/Outlet Connection: 3/4" Threaded Top x 3/4" Threaded Top
• Gas Type: Natural
• Venting Type: Power, Horizontal/Vertical
• Draft Hood Outlet/Vent Size: 2", 3", 4"
• Input Supply Rating: 40000 BTU/HR
• Tank Dimensions: 22" Diameter x 49-5/8" Height
• Tank Height Including Draft Hood: 59"
• Tank Material: Blue Diamond Glass Coating
• Tank Capacity: 40 Gallon
• GPH Recovery: 44.7 GPH at 90 Deg F
• Drain Valve Details: Ball Type, Enhanced-Flow, Tamper Resistant Solid Brass
• Insulation Details: 2" Thick Foam
• Energy Saver Conformance: No
• Inclusions/Features: Versatile Power Vent Design, Self-Cleaning Dip Tube, LED Control Light Display, Protected Sensor, Built-In Heat Traps
• Working Pressure: 150 PSI
• Recovery @ 90 F Rise Per Hour: 44
• Width: 22.00 (in)
• Depth: 22.00 (in)
