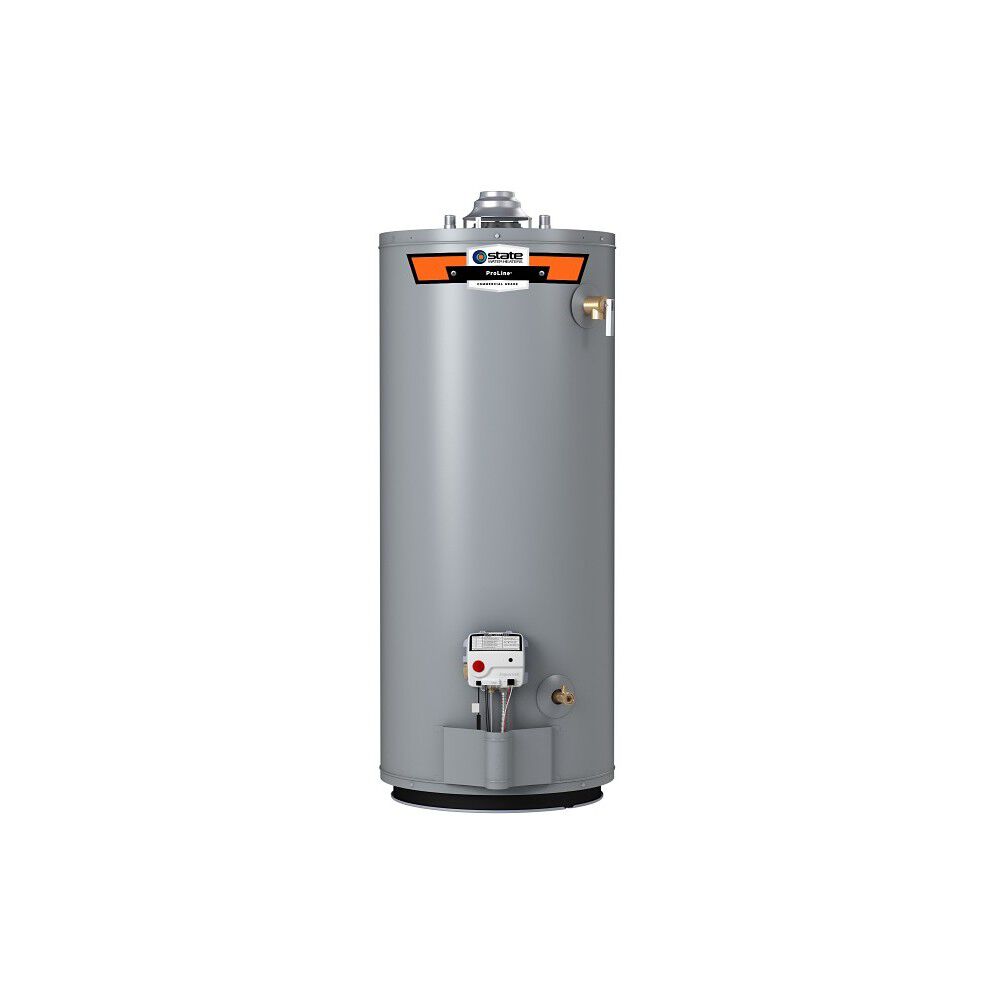

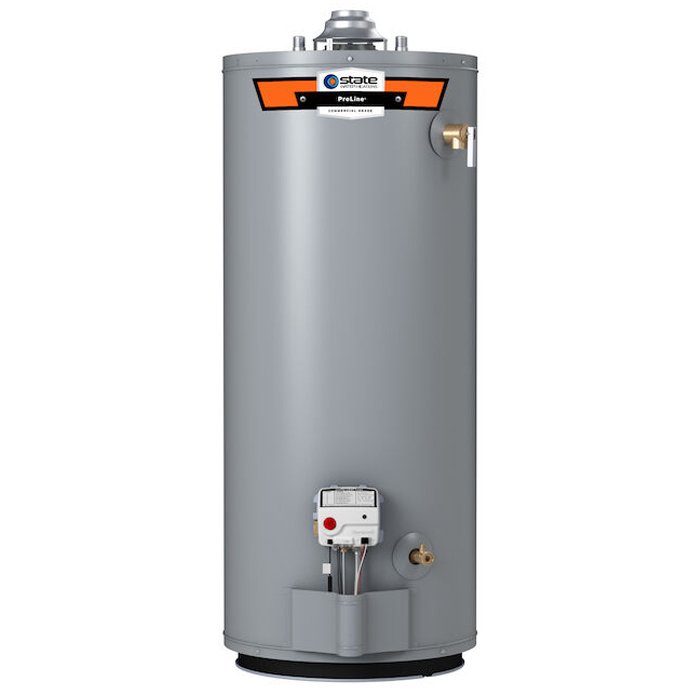

State GS640BCS-LP ProLine Low NOx 40-Gallon Atmospheric Vent Short Liquid Propane Water Heater

Product Description

The STATE GS640BCS-LP ProLine® gas water heater delivers economical performance, lowering energy bills and providing long-lasting value. Featuring a 40-gallon tank and a 36,000 BTU propane burner, it delivers a first hour rating of 67 gallons and a recovery rate of 41 gallons per hour. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss.

• Delivers a 67-gallon first hour rating to meet hot water demands.
• Features a patented Green Choice® Gas Burner design that reduces NOx emissions by up to 33%.
• Equipped with a stainless steel CoreGard™ anode rod and Blue Diamond® glass lining for corrosion protection.

Product Highlights

This 40-gallon water heater is designed for indoor residential use, featuring a piezo igniter, self-cleaning dip tube.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GS640BCS-LP
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 40 Gallons
• Rated Storage Volume: 38.2 Gallons
• Maximum BTUs: 36,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 67 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: PROPANE
• Height to T&P: 41.25
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 47.75"
• Diameter: 22"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 12.5"
• BTU Rating: 36000 Btu/hr
• Capacity: 40 gal
• Connection Type: NPT
• Energy Factor: 0.59
• Energy Star Compliant: Yes
• Recovery Rate: 41 gph
• Material: Polymer
• Model: Short
• Pressure Rating: 150 psi
• Series: ProLine Series
