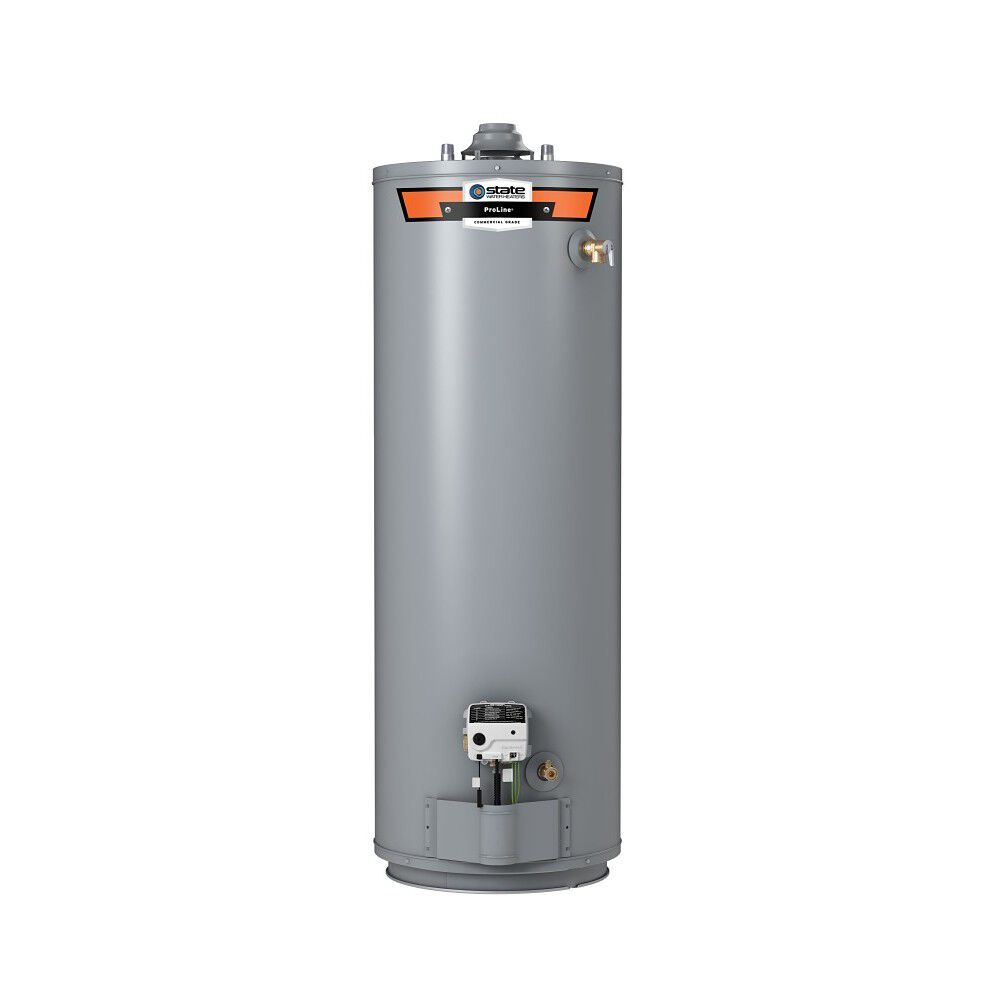

State GS630ORUT ProLine Ultra-Low NOx 30-Gallon Natural Gas Water Heater

Product Description

The STATE GS630ORUT ProLine® 30-Gallon Ultra-Low NOx Atmospheric Vent Tall Natural Gas Water Heater delivers efficient, reliable performance. Features include a 30-gallon tank, 33,000 BTU gas burner with a 62-gallon first-hour rating and a 34-gallon per hour recovery rate. It meets Ultra-Low NOx emission requirements.

• Delivers a 62-gallon first hour rating
• 33,000 BTU input delivers up to 0.59 Uniform Energy Factor
• Green Choice® gas burner meets or exceeds emission requirements in California & Utah

Product Highlights

This water heater features tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GS630ORUT
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 30 Gallons
• Rated Storage Volume: 29 Gallons
• UEF: 0.59
• Maximum BTUs: 33,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• Emissions: Ultra-Low NOx
• First Hour Rating: 62 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 4.00
• Fuel Source: NATURAL
• Height to T&P: 52.00
• Ignition Type: Pilot with Piezo Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Height: 57.75"
• Diameter: 16"
• Vent Type: Atmospheric Vent
• Height to Gas Valve: 13.25"
