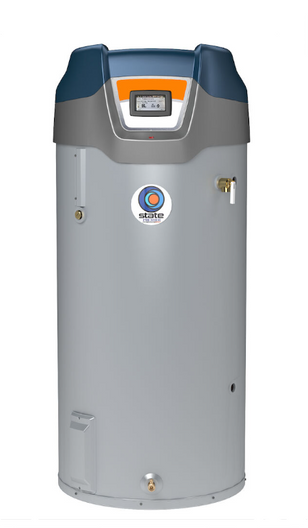

State GP675YTPDT Premier Force 75 gallon 100,000 BTU

Product Description

The State GP675YTPDT Premier Force 90+ Ultra-Low NOx Gas Water Heater features condensing technology and a helical heat exchanger. It delivers continuous hot water at a constant flow of over 4 gallons per minute. The 75-gallon tank and 100,000 BTU natural gas burner deliver a thermal efficiency of 96% and a Uniform Energy Factor of 0.86.

• ENERGY STAR certified with a UEF of 0.86
• Delivers a 130-gallon first hour rating
• Advanced high efficiency condensing design delivers energy savings & continuous hot water at a constant flow of over 4 gallons per minute

Product Highlights

This Power Direct Vent water heater is ENERGY STAR certified and meets Ultra-Low NOx emission requirements. It features advanced tank protection, including a stainless steel CoreGard anode rod and Blue Diamond glass lining.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GP675YTPDT
• Country of Origin: US

Technical Specifications

• SKU: GP675YTPDT
• Nominal Gallon Capacity: 75 Gallons
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Maximum BTUs: 100,000
• UEF: 0.86
• Water Connection Location: BOTH
• Side Loop: Yes
• Power Source: GAS
• T&P Relief Valve: Yes
• Ignition Type: Electronic Hot Surface Igniter
• Thermal Efficiency: 96%
• Rated Storage Volume: 73.7 Gallons
• First Hour Rating: 130 Gallons
• Voltage: 120
• Water Connection Size: 0.75"
• Height to Gas Valve: 61"
• Fuel Source: NATURAL
• ENERGY STAR Certified: TRUE
• Amperes: 5
• ASME Certified: No
• Blanket Included: No
• Height to T&P: 46.25"
• Width: 27.75 (in)
• Height: 65.50 (in)
• Depth: 27.75 (in)
