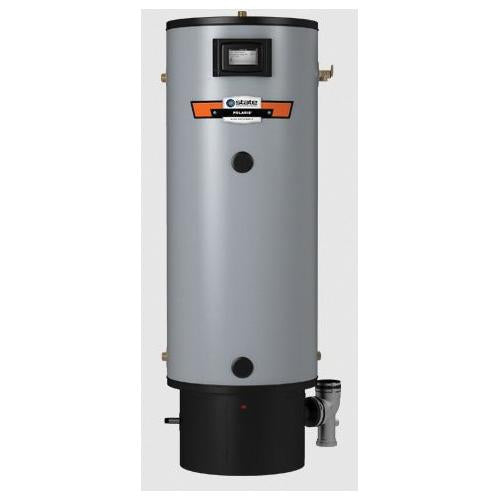

State GHX50130N ProLine XE Polaris 50 gal

Product Description

The STATE GHX50130N PROLINE XE POLARIS is a high-efficiency power direct vent gas water heater designed for today's hot water needs. It features a 50-gallon tank and a 130000 Btu/hr natural gas burner. The power direct vent delivers a thermal efficiency of 95% and a recovery rate of 165 gph. It meets ultra-low NOx emission requirements.

• Helical coil heat exchanger keeps hot combustion gases in the tank longer.
• Power direct vent design is easy to install with PCV, CPVC, or polypropylene pipe.
• Advanced electronic control features a large touchscreen display.

Product Highlights

The GHX50130N is a high-performance gas water heater with a 50-gallon capacity, 130000 BTU/hr input, and 95% thermal efficiency.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GHX50130N
• Country of Origin: US

Technical Specifications

• Altitude: 7700 ft
• BTU Rating: 130000 Btu/hr
• Capacity: 50 gal
• Efficiency: 95 %
• Flow Rate: 6.95 gpm
• Fuel Type: Natural Gas
• Ignition Type: Direct Spark
• Recovery Rate: 165 gph
• Vent Size: 2 in, 3 in
• Vent Type: Power
• Ultra Low NOx: Yes
• Heating Capacity: 130 Kbtu/hr
• Type: Tall, High Efficiency
• Energy Factor: 0.95
• Material: 444 Stainless Steel
• Pressure Rating: 150 psi
• Water Connection: 1 in
• Gas Connection: 1/2 in
• Applicable Standard: ANSI Z21.10.3/CSA 4.3, ASHRAE/IES 90.1, UBC, CEC, ICC, IBC, AHRI
• Burner Type: Ultra Low NOx
• Draft Hood Outlet/Vent Size: 2 Inch or 3 Inch
• GPH Recovery: 165 GPH at 90 Deg F
• Inlet/Outlet Connection: 1 Inch Threaded Side x 1 Inch Threaded Top
• Input Supply Rating: 130000 BTU/Hour
• Relief Valve Details: CSA/ASME T and P Relief Valve
• Tank Material: 444 Stainless Steel
