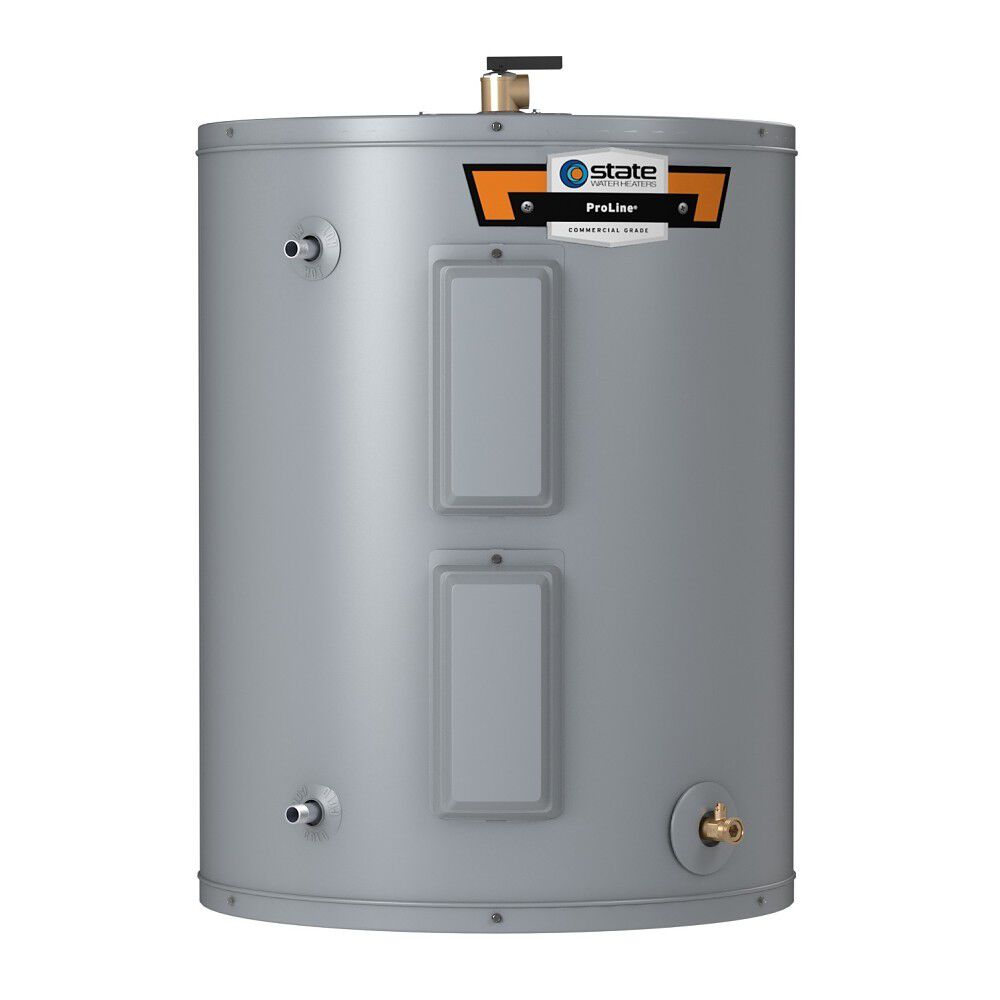

State EN650DOLBS ProLine Lowboy Electric Water Heater 48-Gallon

Product Description

The STATE EN650DOLBS ProLine Lowboy Electric Water Heater is designed to maximize hot water output and energy savings. Featuring a 48-gallon tank and dual 4,500-watt elements, it delivers a first hour rating of 60 gallons. Environmentally friendly insulation and a stainless steel CoreGard anode rod extend the life of the water heater.

• Delivers 60 gallons of hot water in the first hour.
• Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water.
• Patented Blue Diamond glass tank lining protects against corrosion.

Product Highlights

This ProLine water heater offers commercial-grade tank protection with a stainless steel CoreGard anode rod and Blue Diamond glass lining.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: EN650DOLBS
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 48 Gallons
• Rated Storage Volume: 44 Gallons
• UEF: 0.93
• Power Source: ELECTRIC
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• First Hour Rating: 60 Gallons
• ASME Certified: No
• Blanket Included: Yes
• Height to T&P: 25.00
• Installation Type: INDOOR
• Max Wattage: 4,500
• Number of Elements: 2
• Application: RESIDENTIAL
• Side Loop: No
• Voltage: 240
• Type: Water Heater
• Height: 34"
• Diameter: 26.5"
• Width: 26.5"
• Capacity: 50 Gallons
• Manufacturer Name: State
• Option: Lowboy
• Electric Water Heater Type: Lowboy
• Inlet/Outlet Connection: 3/4 Inch Male Threaded x 3/4 Inch Male Threaded
• Relief Valve Details: T and P Relief Valve Supplied
• Power Rating of Elements: 4500 Watt
• Input Supply Rating: 240 Volt
• Tank Dimensions: 26-1/2 Inch Diameter x 34 Inch Height
• Tank Material: Glass Coated
• Tank Capacity: 50 Gallon
• GPH Recovery: 21 GPH at 90 Deg F
• Drain Valve Details: Brass
• Insulation Details: Non-CFC Foam
• Energy Saver Conformance: Yes
• Inclusions/Features: Insulation Blanket, Self Cleaning Dip Tube, Coregard Stainless Steel Anode Rod, Screwdriver Slot (Valve)
• Applicable Standard: UL, CSA
• Pressure Rating: 150 PSI
• Uniform Energy Factor: 0.93
• NAECA Compliant: Yes
• Upper Element Wattage: 4500
• Lower Element Wattage: 4500
• Minimum Voltage Required: 240
• Recovery Gallons: 21
• T&P Relief Valve: Yes
• Nominal Capacity: 48
• Depth: 26.00 (in)
• Elemental Wattage 240 V: 4500 (Standard)/6000 (Maximum)
