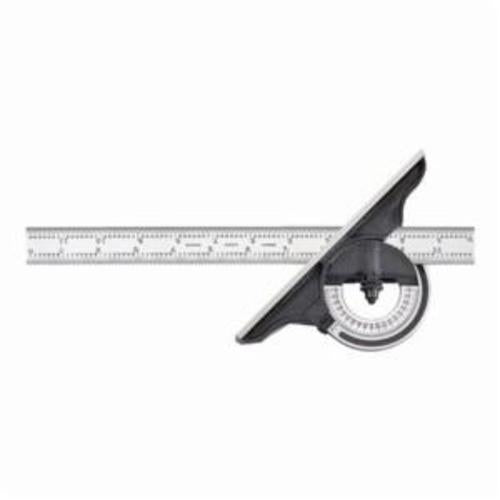

Starrett LSSTA-64602 C491-12-4R Reversible Bevel Protractor 0 to 180 deg

Product Description

The Starrett bevel protractor, model LSSTA-64602, allows for precise angle measurements from zero to one hundred eighty degrees. The unique revolving turret provides easy readability of angles on both sides of the blade. This tool is designed with a built-in spirit level to ensure that the base reference surface is level during use.

• Direct reading of angles from 0 to 180 degrees.
• Crafted with a durable cast iron head.
• Equipped with a reversible feature for versatile use.

Product Highlights

The protractor features a satin chrome finish blade that offers clear graduations for accurate results. The design includes a reversible lock bolt to select the desired graduated side of the blade, enhancing its functionality.

Product Information

Standard Information

• Brand: Starrett
• MPN: LSSTA-64602

Technical Specifications

• Type: Reversible
• Measuring Range: 0 to 180 degrees
• Length: 7 inches
• Blade Size: 12 inches L x 1 inch W x 3/32 inch THK
• Graduations: 4R - 8ths, 16ths, Quick-Reading, 32nds, 64ths
• Material: Cast Iron
• Finish: Black Smooth
