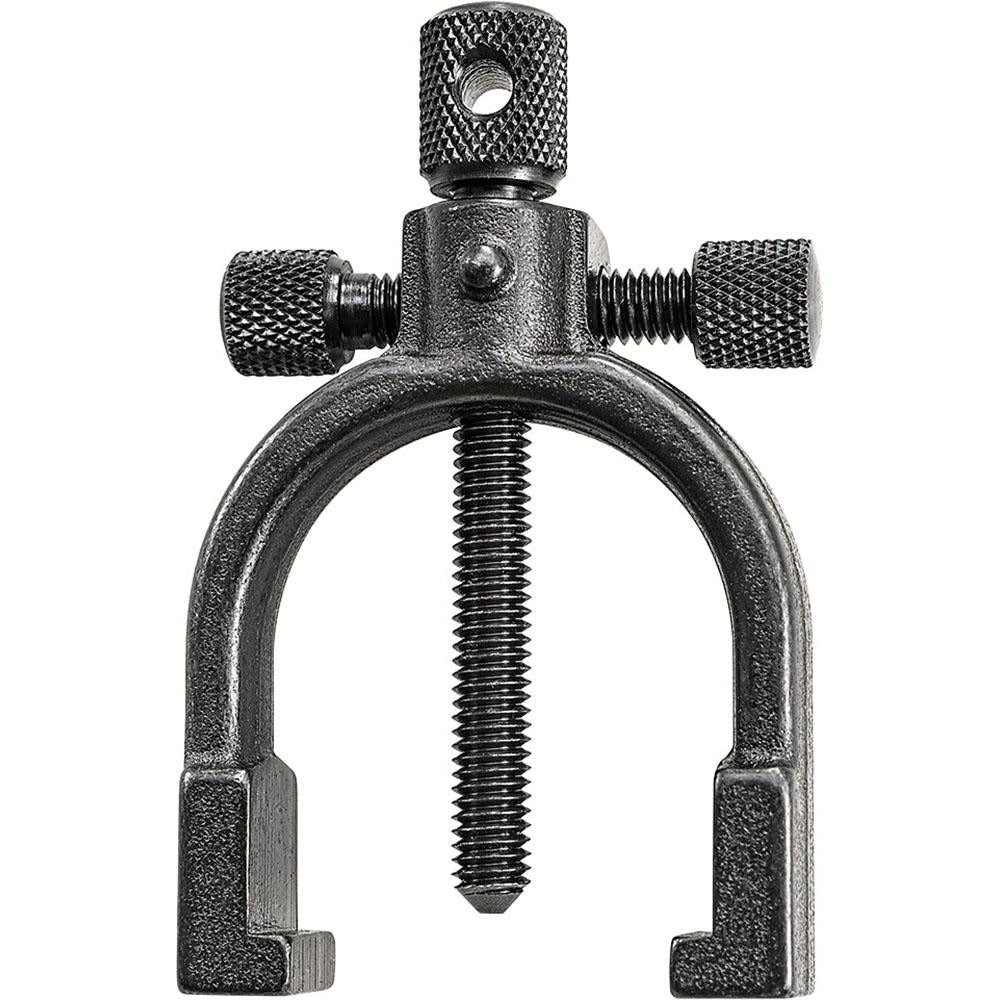

Starrett 70885 V-block Clamp 1.3125 in Hardened Steel

Product Description

The STARRETT 70885 is a hardened steel V-block clamp designed for use with the Starrett Model 567 V-Block. It features a 90-degree V angle and accepts stock up to 1.3125 inches in the V. The clamp measures 3.5 inches long, 1.8898 inches wide, and 1.87 inches high. Built from hardened steel, it delivers the rigidity needed to hold round, square, or hex stock securely during layout work, inspection, and machining setup. Machinists, tool and die makers, and metrology technicians are the primary users of this accessory.

The STARRETT 70885 clamp is suited for bench-top layout and inspection applications in machine shops, tool rooms, and fabrication environments. It is intended for use specifically with the Starrett Model 567 V-Block, securing workpieces in place during scribing, drilling setup, or dimensional inspection. The 90-degree V angle accommodates a range of cylindrical and prismatic stock sizes up to the rated 1.3125-inch maximum V capacity.

Key Features

• Hardened steel construction for rigidity and long service life
• 90-degree V angle accepts round, square, and hex stock profiles
• Maximum V capacity of 1.3125 inches
• Compact profile: 3.5 inches long, 1.8898 inches wide, 1.87 inches high
• Designed for holding stock during layout and inspection work
• Matched accessory for the Starrett Model 567 V-Block

Compatibility

Designed for use with the Starrett Model 567 V-Block as a matched clamping accessory.

Installation Notes

This clamp is a bench-top accessory and does not require power tools or utility shutoff for installation. Seat the clamp firmly onto the Model 567 V-Block before tightening to ensure the workpiece is fully supported in the V. Do not exceed the rated maximum V capacity of 1.3125 inches, as overloading the clamp jaw can compromise holding force and part accuracy. Handle hardened steel components with care to avoid edge chipping.
