Starrett 65252 Dial Test Indicator 5mm Horizontal Series 196

Product Description

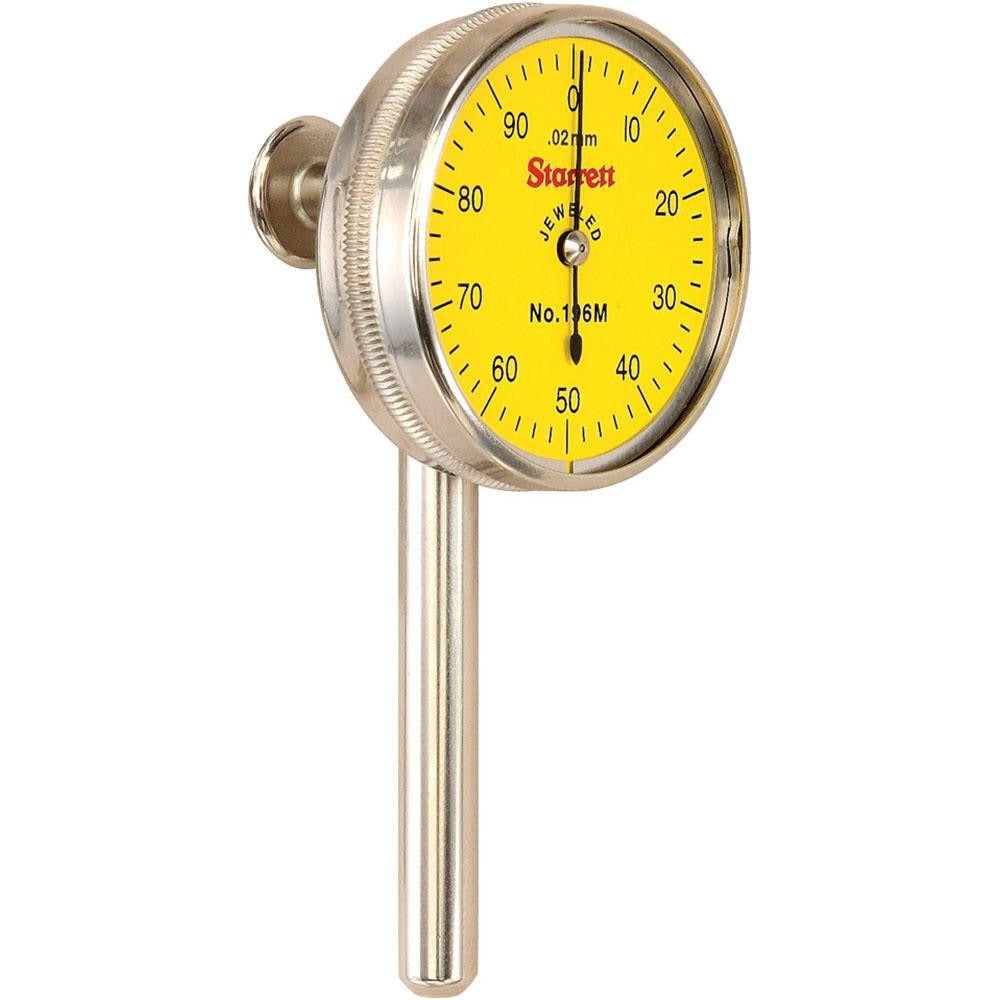

The STARRETT 65252 is a horizontal-style dial test indicator designed for precise measurement work in machining, metrology, and inspection applications. It delivers a full measurement range of 5.00 mm per revolution with a dial graduation of 0.02 mm, providing fine resolution for surface comparison, runout checks, and alignment tasks. The 1-7/16 inch diameter yellow dial offers clear readability in shop environments. Built for accuracy and rugged daily use, the 65252 is part of the Starrett Series 196 line, a standard choice among machinists, tool and die makers, and quality control technicians.

This dial test indicator is suited for horizontal mounting configurations common in machine shops, manufacturing facilities, and inspection rooms. It is used when checking concentricity, flatness, perpendicularity, and part alignment on mills, lathes, surface plates, and fixture setups. The indicator comes with three contact points and an adaptor, making it ready for a variety of measurement setups without additional hardware. The horizontal orientation allows access in tight or recessed locations where back-plunger-style indicators cannot reach.

Key Features

• 5.00 mm measurement range per revolution for fine surface deviation checks
• 0.02 mm dial graduation for high-resolution readings
• 1-7/16 inch diameter yellow dial for clear shop visibility
• Horizontal indicator style for access in confined measurement locations
• Includes three contact points and an adaptor for versatile setup
• Part of the Starrett Series 196 line, built for accurate and rugged shop use

Compatibility

Designed as a standard horizontal dial test indicator compatible with typical dovetail-mount indicator holders, magnetic bases, and universal arm setups commonly used in machine shop and inspection environments.

Installation Notes

Dial test indicators are typically mounted by machinists or metrology technicians using a dovetail clamp or stem holder on a magnetic base or articulating arm. Secure the mounting stem firmly before zeroing the dial to prevent drift during measurement. Avoid side-loading the contact point beyond the indicator's intended arc of travel, as this can affect accuracy and damage the mechanism. Handle the contact tip and gear train carefully during contact point changes to maintain calibration.
