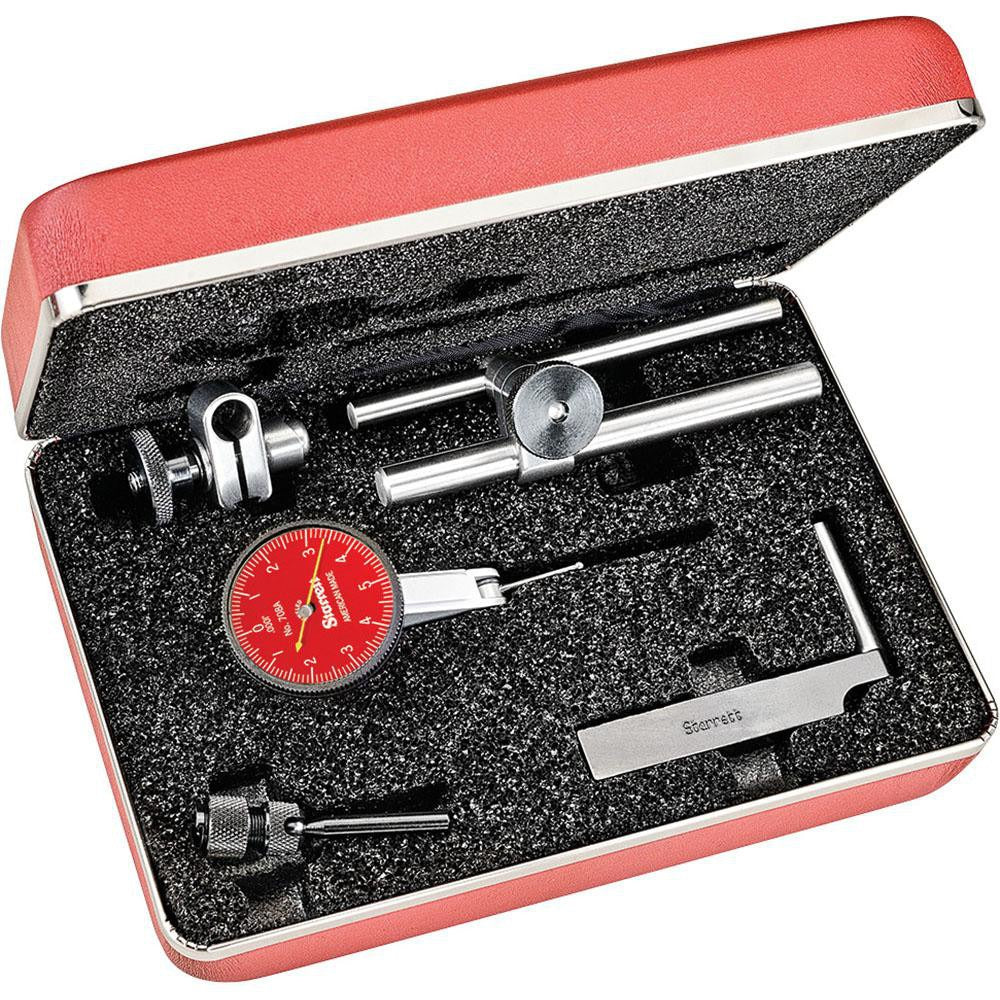

Starrett 64604 Dial Test Indicator Kit 7 Pc

Product Description

The STARRETT 64604 is a 7-piece dial test indicator kit built for precision measurement work in machining, toolmaking, and mechanical inspection. The indicator features a 0.01 inch total measuring range with a fine dial graduation of 0.0001 inches, allowing for highly accurate surface and runout checks. The 1.375 inch diameter dial displays a 0-5-0 reading in red, and the unit is housed in a narrow-body, satin chrome finish with a jeweled movement and precision gear-driven design. Licensed trades and skilled machinists use this kit for setup, alignment, and quality control tasks.

This kit is suited for use in machine shops, tool rooms, and precision manufacturing environments. The dovetail mount configuration allows the indicator to be positioned on standard dovetail holders and magnetic bases. The included carbide contact, swivel post snug with dovetail indicator clamp, dovetail body clamp, snug and rod unit, and tool post holder make this a complete solution for a range of fixturing and measurement setups. The adjustable contact and angled head allow access to confined areas during setup and inspection.

Key Features

• 0.01 inch measuring range with 0.0001 inch dial graduation for high-resolution readings
• 1.375 inch diameter red dial with 0-5-0 reading and revolution count hand
• Jeweled movement and precision gear-driven design for durability and repeatability
• Dovetail mount with angled, narrow-body head for access in tight setups
• Satin chrome finish with replaceable and adjustable carbide contact point
• 7-piece kit includes indicator, carbide contact, case, clamps, snug and rod unit, and tool post holder

Compatibility

Part of the STARRETT Series 708 dial test indicator family. Designed for use with standard dovetail mounting systems and compatible with common magnetic base and tool post holding arrangements used in precision machining and inspection setups.

Installation Notes

Installation and setup are typically performed by machinists, toolmakers, or precision measurement technicians. Secure the dovetail clamp firmly before taking readings to prevent indicator shift. Avoid lateral overloading of the contact point beyond the stated measuring range, as this can damage the gear-driven mechanism. Store the indicator in the included case when not in use to protect the jeweled movement and contact surfaces.
