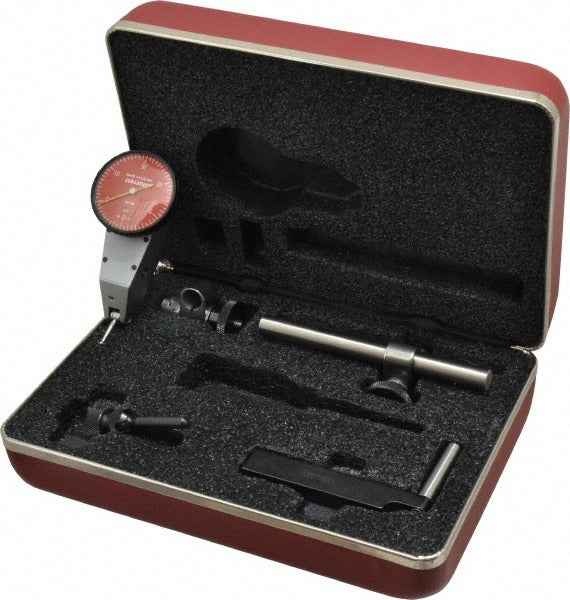

Starrett 63265 Dial Test Indicator Kit 7 Pc 0.03 in

Product Description

The STARRETT 63265 is a 7-piece dial test indicator kit designed for precise surface, runout, and alignment measurement in machine shop, toolroom, and maintenance environments. The indicator features a 1-3/8 inch dial diameter with a red face and a 0-15-0 reading scale. Dial graduation is 0.0005 inches, giving a total measuring range of 0.03 inches. The kit ships with all mounting and clamping accessories needed to put the indicator to work immediately. It is intended for use by machinists, tool-and-die makers, and precision maintenance technicians.

This kit suits a wide range of precision measurement tasks including spindle runout checks, surface plate layout, lathe and mill setup, and fixture alignment. The included dovetail body clamp, swivel post snug with dovetail indicator clamp, snug and rod unit, and tool post holder give the technician multiple mounting configurations without sourcing additional hardware. The carbide contact point resists wear in production environments. The complete set is packaged in a protective case for storage and transport.

Key Features

• 0.03 inch total measuring range with 0.0005 inch dial graduation for high-resolution readings
• 1-3/8 inch diameter red dial face with 0-15-0 reading scale
• Carbide contact point for extended wear life in production use
• Dovetail body clamp and swivel post snug with dovetail indicator clamp included for versatile mounting
• Tool post holder and snug and rod unit expand setup options for lathe and mill work
• 7-piece kit includes protective carry and storage case

Compatibility

Designed as an OEM-style dial test indicator kit compatible with standard dovetail indicator mounting systems commonly found in machine shop and toolroom setups. Manufacturer part number R811-5CZ is referenced in the product specifications.

Installation Notes

Installation and use of this indicator kit is typically performed by machinists or precision maintenance technicians. Secure all clamping hardware firmly before taking readings to prevent indicator movement that would affect measurement accuracy. Power down or lock out any rotating spindle or axis before mounting the indicator on live machinery. Do not exceed the stated 0.03 inch measuring range, as overtravel can damage the indicator mechanism.
