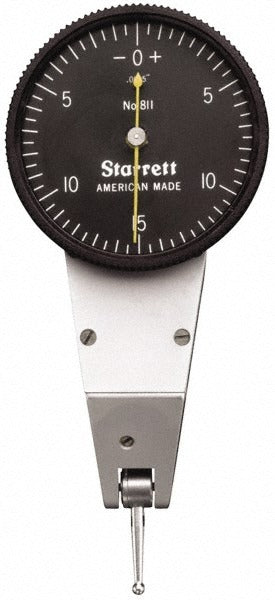

Starrett 63262 Dial Test Indicator 0.03 in 0-15-0 Horizontal

Product Description

The STARRETT 63262 is a horizontal-style dial test indicator designed for precision measurement in machining, inspection, and toolroom applications. It covers a maximum measurement range of 0.03 inches with a graduation of 0.0005 inches, making it well suited for detecting small surface variations, runout, and alignment deviations. The balanced 0-15-0 dial face allows technicians to read deflection in either direction from center zero without repositioning the indicator. The black dial face provides strong contrast for quick, accurate readings. Machinists, metrology technicians, and quality control inspectors are the primary users of this type of instrument.

This dial test indicator fits horizontal mounting configurations and is used in conjunction with magnetic bases, indicator stands, and machine tool setups on mills, lathes, surface plates, and CMM fixtures. The 1-3/8 inch dial diameter keeps the face readable without adding excessive bulk to compact setups. The included contact point measures 5/8 inch in length with a 0.0787 inch (2.00 mm) ball diameter, suited for general surface contact on flat, cylindrical, and contoured workpieces. This indicator is appropriate for both production floor and inspection room environments.

Key Features

• 0.03 inch maximum measurement range for fine tolerance inspection work
• 0.0005 inch graduation for high-resolution deflection readings
• Balanced 0-15-0 dial reads positive and negative deflection from center
• Horizontal style suits low-clearance and side-contact setups
• 1-3/8 inch black dial face for clear, high-contrast readability
• Includes one contact point: 5/8 inch length, 0.0787 inch ball diameter

Compatibility

Designed as a horizontal dial test indicator for use with standard indicator holders, magnetic bases, and dovetail-mount clamps common to machining and inspection setups.

Installation Notes

Dial test indicators are mounted and adjusted by machinists or metrology technicians using an indicator holder or magnetic base. Secure the indicator so the contact point engages the workpiece at the correct angle to avoid cosine error, which reduces measurement accuracy. Do not exceed the stated measurement range, as overtravel can damage the internal movement. Calibration should be verified against a known reference before critical inspection use.
