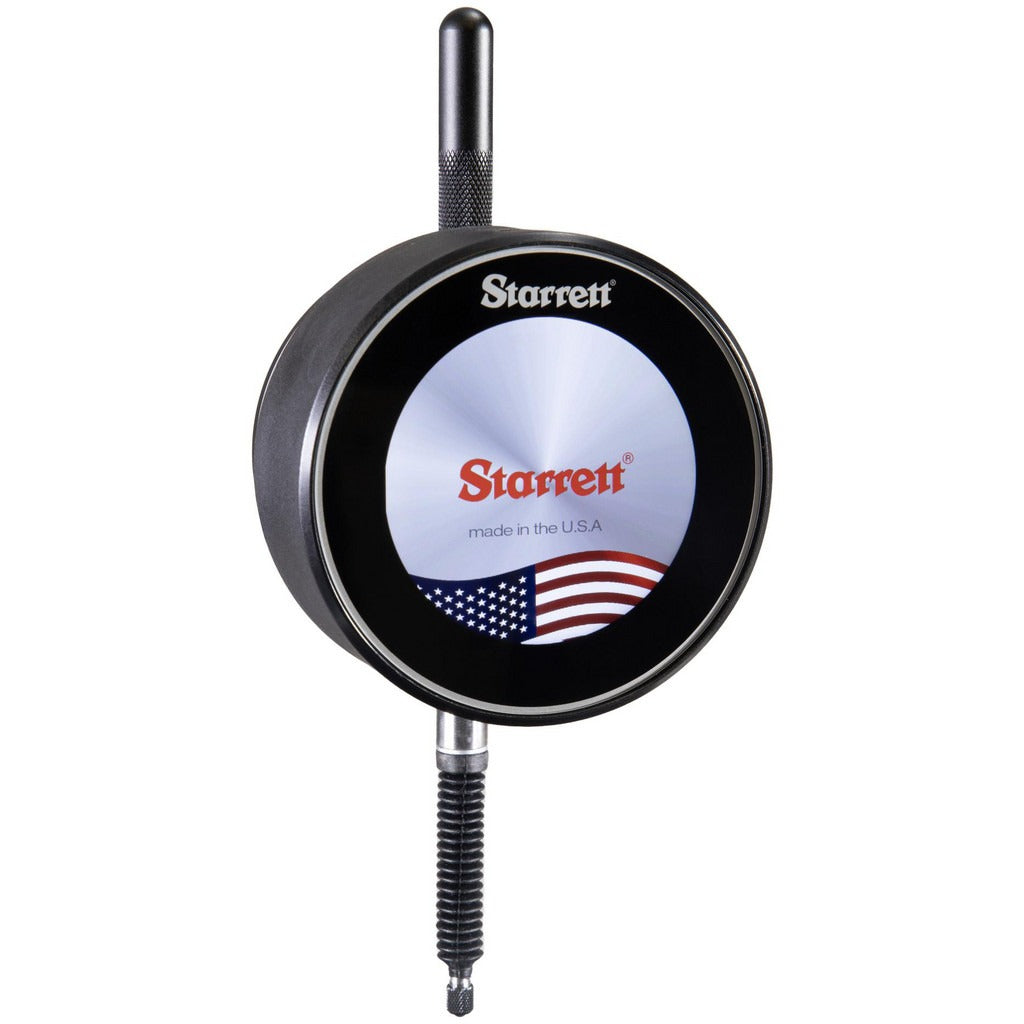

Starrett 62424 Electronic Drop Indicator 1 in IP67

Product Description

The STARRETT 62424 is an electronic drop indicator designed for high-precision dimensional measurement in metrology, machining, and quality control applications. Part of the W4900 Series and rated to AGD-4 standards, it combines a digital and analog display with a capacitive touch screen, giving technicians instant readout without sacrificing the familiar dial format. The indicator delivers a resolution of 0.00005 inches and an accuracy of 0.00005 inches over a 1-inch measuring range. The carbide contact point resists wear during repeated-contact gauging cycles. A rechargeable lithium-ion polymer battery powers the unit, and the IP67 water and dust protection rating makes it suitable for demanding shop-floor environments.

The 62424 is suited for use in precision measurement setups on manual and CNC machine tools, surface plates, and inspection fixtures. It is appropriate for residential toolroom applications as well as light industrial quality control stations where both English and metric readout capability is required. The flat and lug back mounting options allow secure attachment to standard indicator holders, magnetic bases, and gauge stands. Measurement can be read in decimal inch or millimeter units. The included recharging cable, wall wart, and lifting knob support immediate deployment out of the box.

Key Features

• Digital and analog display with capacitive touch screen for clear, fast readings
• 1-inch maximum measuring range with 0.00005-inch resolution and accuracy
• IP67 water and dust protection rating for durable shop-floor use
• Carbide contact point for extended wear resistance during high-cycle gauging
• Flat and lug back with 0.375-inch stem diameter for compatibility with standard indicator holders
• Rechargeable 2800 mAh lithium-ion polymer battery included with charging cable and wall wart
• Reads in both English and metric units; factory calibrated

Compatibility

Designed as an OEM-style drop indicator for use with standard AGD-4 indicator holders, magnetic bases, and gauge stands accepting a 0.375-inch stem diameter. Compatible with both English and metric measurement setups.

Installation Notes

Installation is performed by metrologists, machinists, and quality control technicians. Secure the 0.375-inch stem firmly in the indicator holder or magnetic base clamp before taking measurements to prevent spindle deflection errors. Ensure the contact point is perpendicular to the measured surface for accurate readings. Charge the battery fully using the included wall wart and recharging cable before first use.
